Key takeaways
- Oily film and high-gloss epoxy change braking distance more than top speed, so wheel choice starts with measured stop distance, not catalog photos.
- Non-marking polyurethane and soft rubber blends grip better on dry epoxy but can hydroplane on coolant mist unless tread blocks can channel fluid away.
- Durometer near 85A to 95A often balances load capacity and grip on coated concrete, while harder wheels survive debris but skate on thin oil.
- Chemical resistance matters for cutting-fluid zones: wheels that swell or craze in solvents lose roundness and pull navigation off path.
- A vendor-neutral integrator can run a robot pilot on your actual contamination patches before you commit to a monthly scrubber or AMR rental fleet.
What wheel setup actually keeps robots stable on oily epoxy?
On manufacturing and warehouse floors, the wheel is the whole drivetrain. Thin machine oil, hydraulic weep, and epoxy topcoats with a glossy cure can turn a confident autonomous scrubber or AMR into a unit that drifts on turns, overshoots docking, or triggers safety stops every few meters.
The buyer question is not which tread looks aggressive in a brochure. It is whether the robot can hold a straight line, stop within your marked safety zone, and climb a rated ramp while carrying water, payload, or a scrub deck on the exact contamination you already have.
Start with wheel material, tread geometry, hardness, and marking behavior, then prove all four on your floor with a short site test before you scale a commercial cleaning robot rental or AMR fleet.
Why do slips and falls still matter for wheel selection?
Slippery floors hurt people before they hurt robots. The U.S. Bureau of Labor Statistics reported 844 fatal occupational injuries from falls, slips, and trips nationwide in 2024, down from 885 in 2023, according to the Census of Fatal Occupational Injuries summary.
Manufacturing recorded 353 fatal work injuries in 2024, and 52 of those involved falls, slips, or trips, per BLS Table A-1 for fatal injuries by industry and event.
Nonfatal data points the same direction for floor care planning. Private industry logged 479,480 DART cases from falls, slips, and trips in 2023, with a median of 13 days away from work in the 2024 injury and illness release tables.
Better traction under mobile robots does not replace housekeeping, but it supports overnight autonomous floor scrubbing and material moves without adding another sliding hazard for the morning crew.
How do tread pattern and block shape change grip?
Tread is how the wheel buys time against a film of oil. Solid smooth tires look clean on showroom epoxy, yet they offer little edge to break surface tension when a coolant mist sits on the coating.
Block or diamond patterns with open channels let fluid move out from the contact patch. That matters at aisle joints and near CNC mats where oil tracks in a repeatable ribbon.
Concentric ribs can reduce marking on decorative epoxy in lobbies, but they may skate when turning in place. If your routes include tight cornering at pallet drop points, favor an asymmetrical lug that still meets your floor warranty rules.
Match tread depth to debris. Short lugs clog with metal chips in fabrication bays, while deeper lugs on a warehouse cleaning robot rental unit may pick up packing tape and drop it two aisles over.
- Open channels for coolant and wash water on scrubber routes
- Asymmetrical lugs where robots pivot often on coated concrete
- Shallower ribs only after you verify stops on dry and lightly oiled patches
Which wheel materials survive oil without marking epoxy?

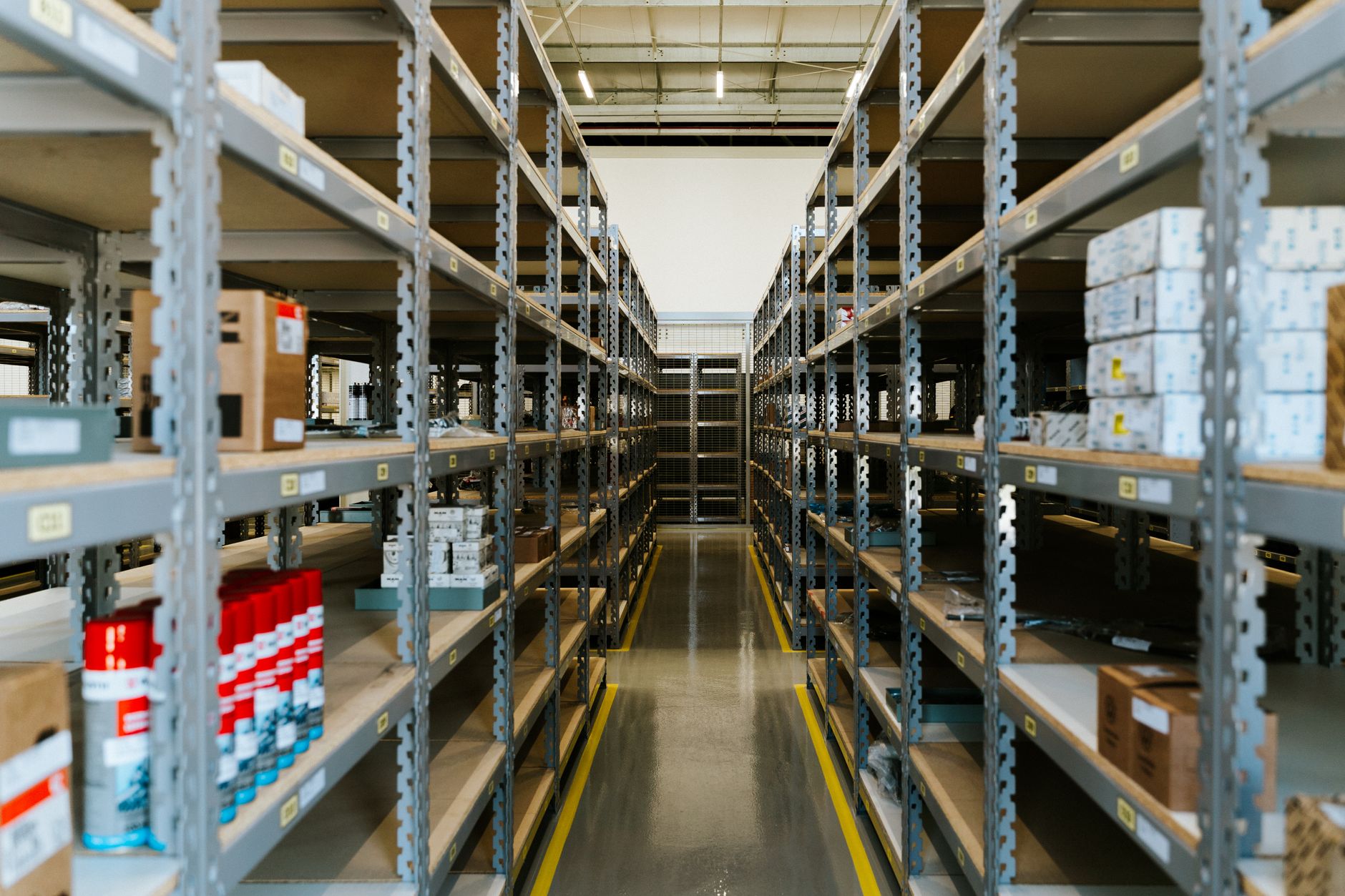

Polyurethane blends dominate indoor AMR and scrubber wheels because they carry load without flattening quickly. Non-marking gray or tan compounds are standard in food and pharma plants where black rubber streaks fail a visual audit.
Natural and nitrile rubber can grip oily concrete in dry conditions, yet some rubber families swell after weeks of exposure to certain cutting fluids or alkaline cleaners. Swelling shows up as a wobble and as navigation drift, not as a visible puddle.
Thermoplastic rubber sits between rubber and polyurethane on cost and marking. It can be a fit for light delivery robots on sealed epoxy, but validate hardness after your real cleaner chemistry, not after a single demo day.
For epoxy specifically, ask the coating installer which wheel hardness range they warranty. A wheel that is too soft can leave embossing on warm new film, while a wheel that is too hard can chatter and feel like ice on a fine oil haze.
What does durometer mean on a coated factory floor?
Durometer is the shorthand for how much the tire deflects under load. Softer wheels in the 75A to 85A range increase contact area and can improve grip on micro-textured epoxy, but they wear faster when operators run through gritty dock transitions.
Harder wheels near 95A and above survive pallet impact zones and metal shavings, yet they need a more aggressive tread to avoid skating on oil. Many autonomous floor scrubber deployments land in the mid 80s to low 90s A scale after a pilot.
Dual-wheel casters split the difference: a slightly softer drive tire plus a harder idler is common on heavy scrub decks. Document the pairing in your spare parts list so a night crew does not swap in a mismatched durometer after a flat.
Temperature shifts durometer. A cold loading bay in January and a warm mezzanine in July can change stop distance on the same wheel part number.
How should you test braking, turning, ramps, and joints on site?
Borrow the ramp traction mindset from mobile robot acceptance practice: measure performance on your surfaces, not on a vendor mat. Mark a straight run at least ten meters long on epoxy that represents production, not just the front office.
Lay three contamination patches: dry, light oil haze wiped with the same fluid your machines use, and a worst-case drip zone you already cordon off for people. Run the robot at operational speed with full payload or water load.
Record stopping distance from a fixed line at full forward speed and again at full reverse. Repeat with a ninety-degree turn that matches your tightest aisle corner. Note any anti-skid safety events or path replans.
Test expansion joints and saw cuts at a walking pace first, then at cleaning speed. Wheels that chatter on joints can throw encoder odometry off on natural-feature navigation.
Finish on every ramp the robot must climb. If stop distance grows more than your safety margin on the oily patch, change tread or durometer before you sign a monthly payment program.
- Dry epoxy baseline stop and turn
- Representative oil or coolant film on the same path

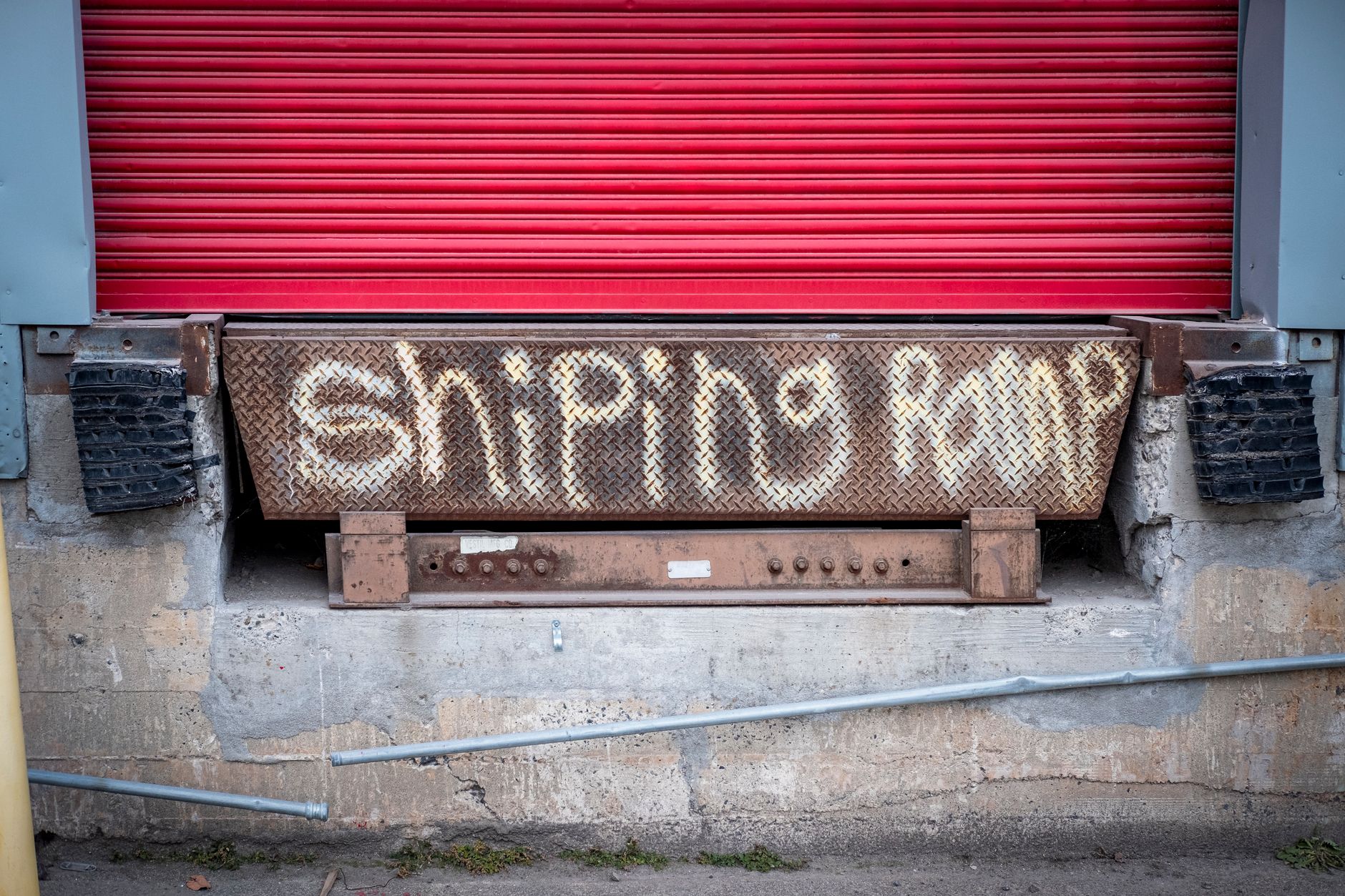

- Dock plates, joints, and the steepest approved ramp
- Loaded versus unloaded runs for scrubbers and AMRs
What chemical exposure should wheel specs list?
Cutting fluids, alkaline floor strippers, and solvent spot cleaners each attack a different polymer. Request compatibility notes for the exact maintenance chemicals your janitorial team already uses on epoxy.
Scrubber wheels also see concentrated detergent at the pad interface. Heat from friction plus chemistry can accelerate creep on soft polyurethane.
If you run UV-cured epoxy in electronics plants, confirm that any wheel lubricants used during assembly of the caster will not leave a permanent slick film.
Log wheel inspections on the same cycle as squeegee and pad changes. Out-of-round tires are a leading cause of missed coverage on industrial floor scrubbing robot routes.
When does Service Robot Co. help compare wheel options across fleets?
Service Robot Co. is a full-service commercial robot integrator for U.S. businesses. We stay OEM-neutral across scrubbers, AMRs, and delivery platforms, then finance, deploy, train, and service units nationwide.
Wheel questions usually show up during site assessment for robot rental monthly programs or a first autonomous floor scrubber rental in a plant with mixed epoxy and sealed concrete.
We stage pilots on your oily lanes and coated aisles, document stop distance and marking, and align spare wheel kits with the routes that actually run after close.
That single-partner model keeps traction testing, mapping, and maintenance on one number instead of splitting blame between a tire vendor and a robot vendor when a unit skates at 2 a.m.
