Key takeaways
- Gasket cobots pay when panel families repeat and seal failure has a clear cost.
- Path accuracy and material stretch matter more than raw cycle time on foam tape.
- Vision should verify placement and gap before the door moves to test.
- Surface prep rules belong in the cell interlock, not on a paper traveler alone.
- Model changeovers need stored paths per SKU, not a full reprogram every shift.
When do cobots beat manual gasket placement on HVAC parts?
Air-handling doors, access panels, and duct sections often need foam, rubber, or adhesive-backed gasket material run around a flange before assembly or test. Hand placement is steady work, but it is hard to hold the same overlap and corner radius when models change every hour.
A collaborative arm with a guided path can press or roll gasket stock along a taught contour when panel geometry repeats and seal failure has a known cost. The cell is a weak default when every unit is a one-off field retrofit with no fixturing.
According to the Association for Advancing Automation, North American companies ordered 8,940 robots in the second quarter of 2026, with non-automotive customers taking 56 percent of units. HVAC and sheet-metal shops sit in that broader metal and component demand even when gasket work is only one station on the line.
The practical question is whether seal rework or leak test failures cap output more than welding or sheet handling. If gasket tables queue before pressure test, one cobot lane on the highest-volume door family is the right place to model first.

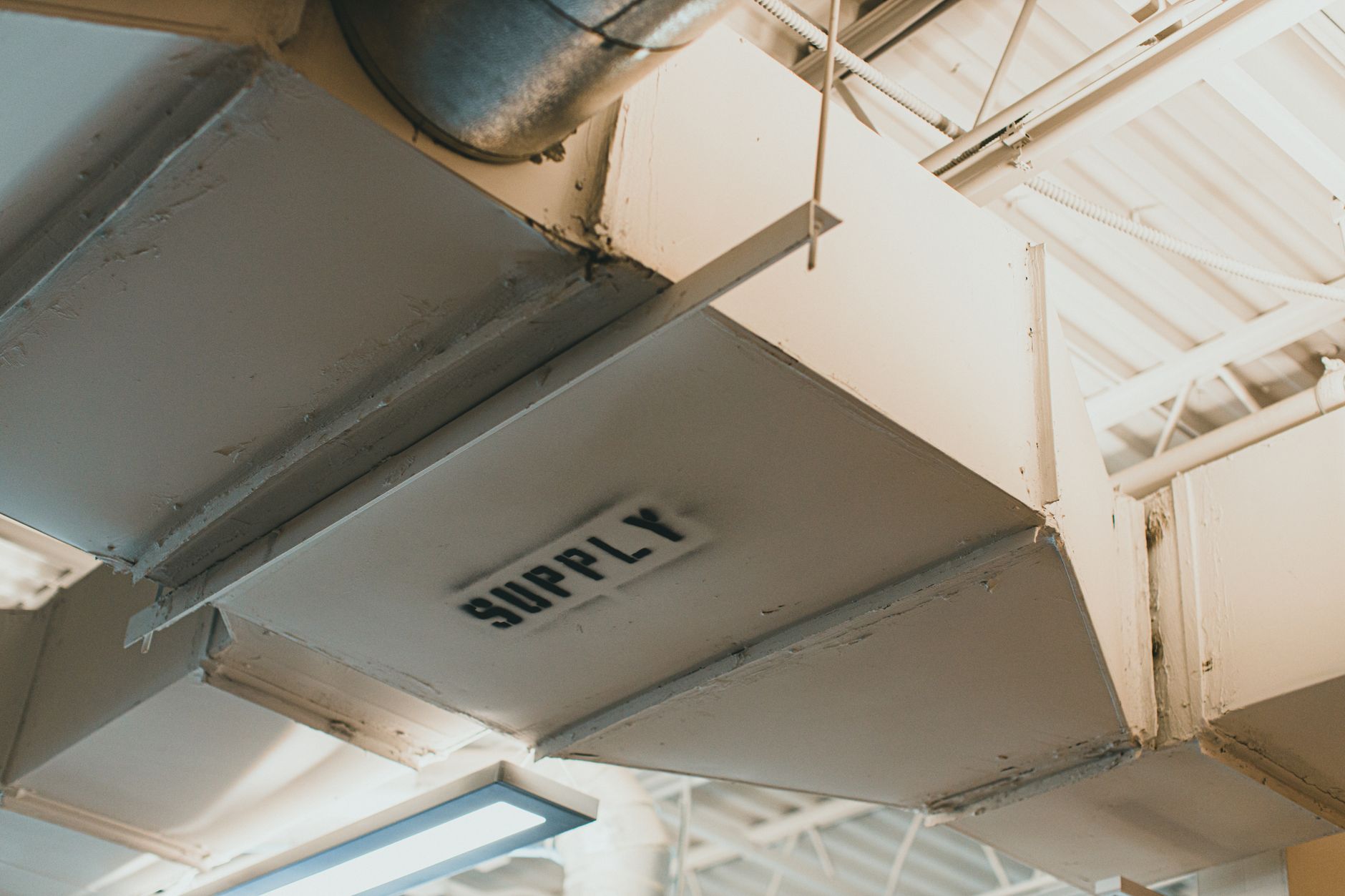

What makes HVAC gasket paths different from flat sealing?
Panel flanges are rarely a simple rectangle. Hinges, latch pockets, and drain slots break continuity. Corners need relief cuts or preformed pieces, not a single straight pull.
Adhesive-backed foam stretches when tension is wrong, which narrows the effective seal width. Rubber cord stock needs even compression without twist.
Duct sections add length and sometimes a second operator to feed material. A cobot path must define where the human feeds and where the arm owns the curve.
How should you control path accuracy and material stretch?
Program speed and normal force separately on straight runs versus corners. A corner that looks fine at low speed can bunch tape when the arm accelerates out.
Use a compliant tool head or roller so minor flange warp does not translate into a lifted edge. Rigid pinch tooling fails on thin galvanized panels.
For pre-cut gasket segments, fixture the start point with a physical stop and verify length with vision before the next segment bonds.
- Log roller pressure or torque limits per material lot.
- Keep a scrap flange for daily path drift checks.
- Split long runs into two programs if feed assist is manual.
What surface preparation belongs inside the cell?
Oil, powder coat overspray, and shipping film left on the flange will release adhesive gaskets later in service. Define wipe, air blow, or light abrade steps before the arm starts.
If panels arrive from paint within a cure window, block the cell until the supplier spec says bonding is allowed. That rule should be an interlock, not a note on a traveler.
Humidity and dust in the shop change tack time on foam tape. A first-shift test strip on scrap metal beats discovering lift at leak test.

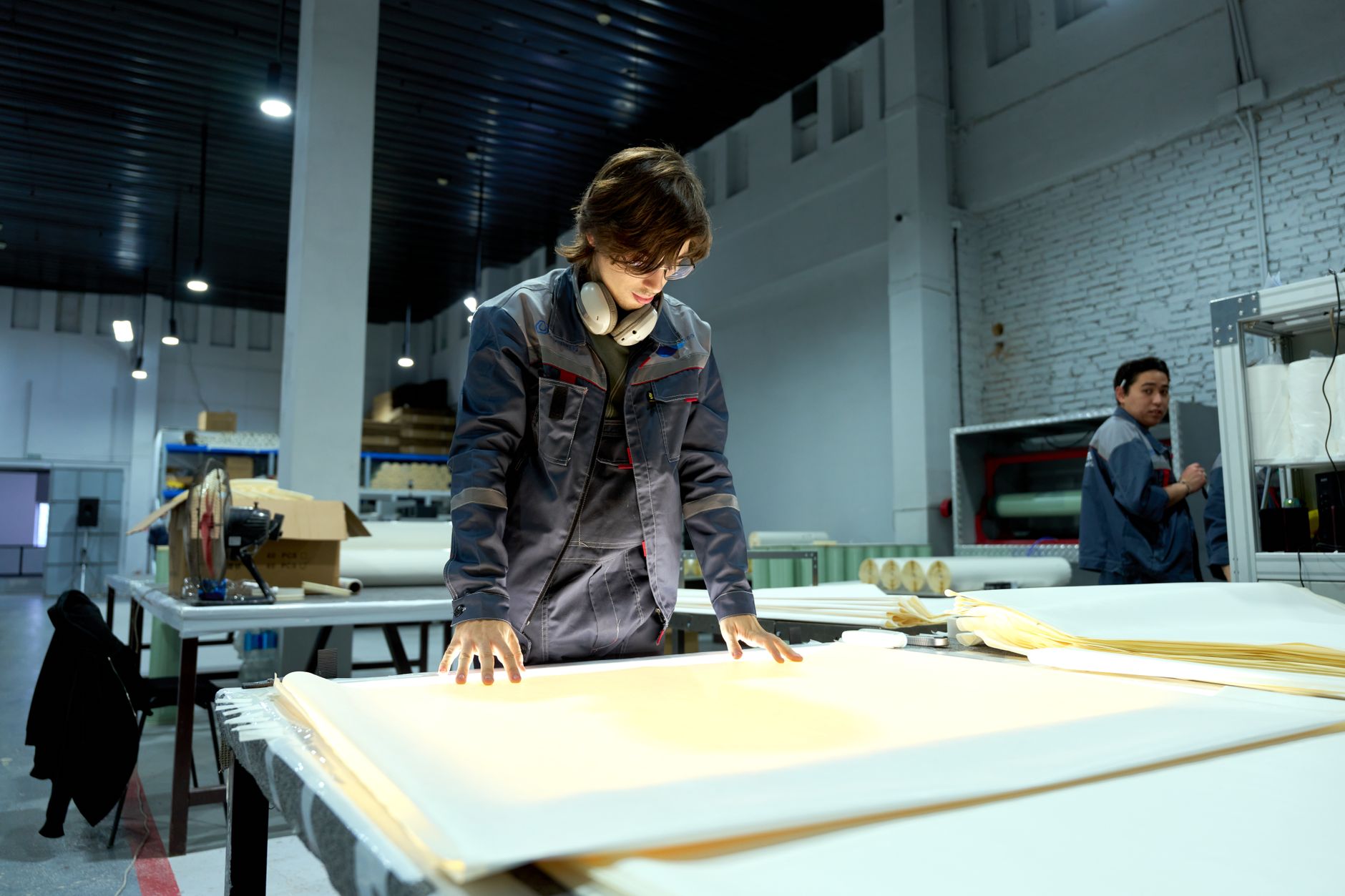

How should vision check gasket placement?
Cameras can confirm continuous edge coverage, corner overlap, and missing segments before the door indexes to assembly. Full 3D seal measurement is rarely needed on a first cell.
Train on your actual failure modes: short corner, twisted cord, bubble under tape, and gasket offset from a latch hole.
Barcode or weld mark on the panel confirms the correct program loads before motion starts. Wrong gasket profile on the right door size is a common mix-up in high-mix lines.
How do you handle rapid model changeovers?
Store one validated path per door or panel SKU with a photo of the fixture setup on the teach pendant or cell display. Operators should not re-teach from memory at shift change.
Group changeovers: run material family A until the queue clears, then swap roller tooling and adhesive recipe together.
Keep pre-cut kits kitted by SKU near the cell so the arm path and human prep stay aligned.
What labor and injury context sits behind the ROI talk?
U.S. Bureau of Labor Statistics 2024 data show fabricated metal product manufacturing at 3.2 total recordable cases per 100 full-time workers, with 1.8 cases involving days away, restriction, or transfer. Architectural and structural metals manufacturing recorded 3.5 total recordable cases per 100 workers in the same table.
Repetitive hand sealing and knife trim on gasket prep add strain even when headline rates look moderate. Cobots remove steady roll-and-press motion on the modal panel, not the need for a lead on exceptions.
When skilled fitters are pulled to gasket rework instead of assembly, automating the highest-volume flange often stabilizes leak test before it removes a headcount.
How do you pilot without breaking leak-test trust?
Pick one door or panel family that already fails leak or smoke test on gasket issues weekly. Measure rework hours, scrap gasket material, and test pass rate before and after.
Include Monday morning cold-start and Friday afternoon rush, not only midweek demos.
Track field callback data on seal leaks per thousand units shipped, not only arm cycle time.
Where does a full-service integrator fit the first gasket cell?
Gasket work sits between sheet-metal variance, adhesive supplier specs, and test-stand data your ERP rarely sees. Service Robot Co. works as a vendor neutral commercial robot integrator for U.S. HVAC and fabrication shops. We match arms, compliance tooling, and vision to your flange library, then finance, deploy, train, and service through a nationwide engineer network.
Collaborative robot arm rental with maintenance included can carry one gasket lane through a seasonal build surge on operating budget before you commit capital to every panel family. One partner number covers path libraries, interlocks, and the monthly service plan after go live.
