How to Choose Cleaning Robots for Warehouse Mezzanines

What makes a cleaning robot suitable for an upper pick module?

A compact cleaning robot can work well on a warehouse mezzanine when the site treats it as moving equipment on a constrained platform, not as a smaller version of a ground-floor scrubber. The right unit must stay within the deck's load limits, maintain dependable separation from exposed edges, negotiate the usable aisle width, and remain recoverable after any fault.

Selection should therefore begin with the building and operating route. Verify the deck, guardrails, floor openings, transitions, elevator, pedestrian traffic, charging position, communications, and recovery access before comparing cleaning productivity. A lightweight machine with poor turning behavior or weak edge safeguards can be a worse fit than a slightly larger unit with controlled motion and better sensing.

The operating plan matters just as much as the machine. Define when it may run, which routes are prohibited, who responds to an alarm, and how a disabled robot comes back downstairs. Overnight cleaning with no operator beside the machine can be practical, but it still requires remote alerts and a trained responder who can reach the upper level safely.

• Document the robot's travel envelope with brushes, squeegees, and side-cleaning hardware extended.
• Map every open edge, stair landing, pallet gate, floor penetration, ramp, threshold, and temporary staging area.
• Confirm that workers can pass, pick, replenish, and evacuate without stepping into the robot's planned path.
• Test the fully loaded robot, including water, collected debris, batteries, and any onboard consumables.

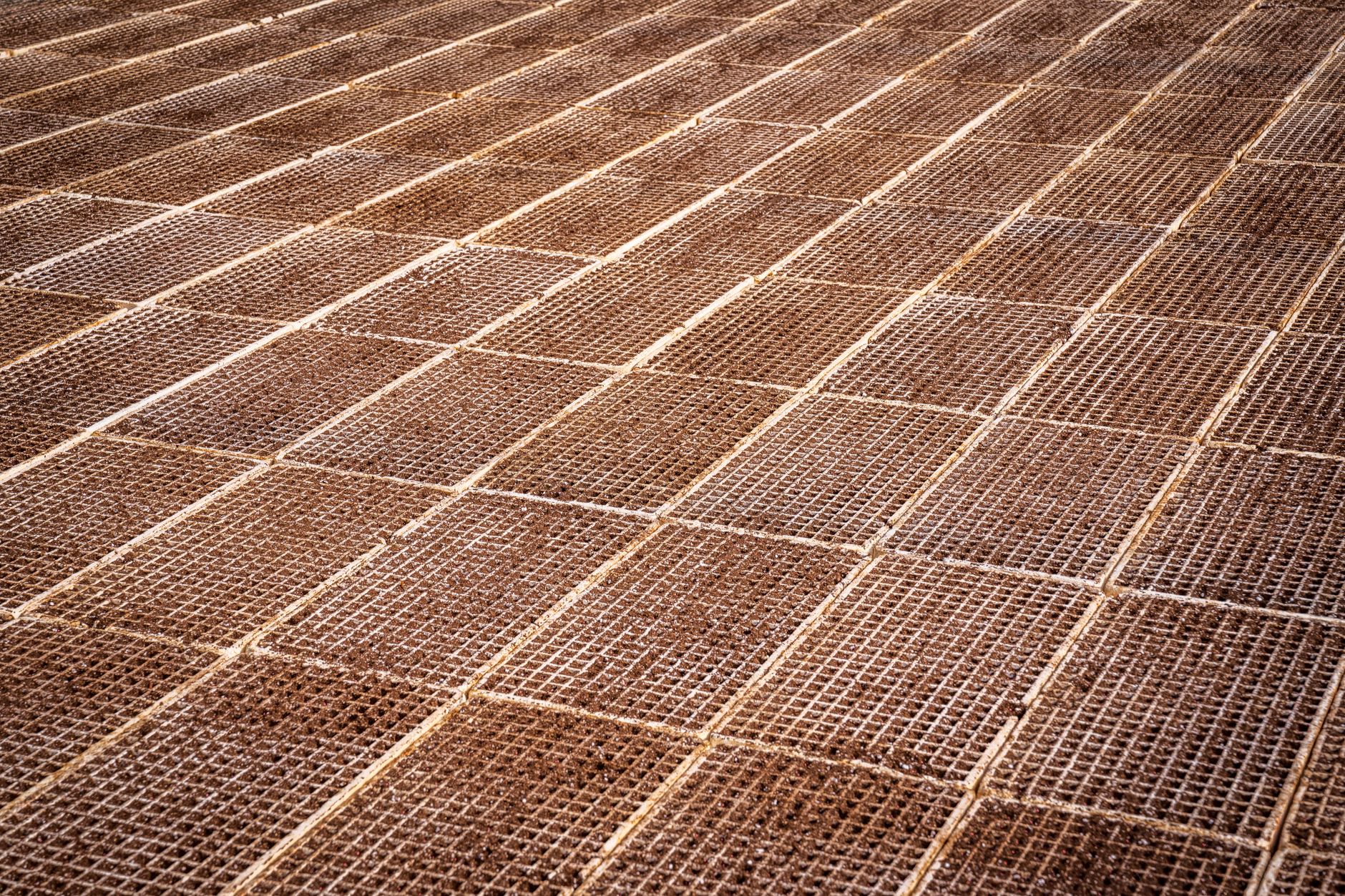

Can the structure carry the robot and its dock?

Start with approved structural drawings, posted load information, and a review by the facility's qualified structural professional. OSHA's walking-working-surface rule requires each surface to support its maximum intended load. OSHA defines that load broadly to include employees, equipment, vehicles, tools, materials, and other loads reasonably expected at the same time.

Do not compare only the robot's catalog weight with a floor rating expressed across a broad area. A mobile cleaner transfers weight through wheels or casters, creating concentrated reactions that can govern deck-panel, grating, or joint performance. Dynamic effects from turning, braking, crossing a seam, or striking a threshold also deserve review.

Calculate the worst operating condition. Include clean and recovery-water tanks, debris, attachments, and the person or equipment required for retrieval. Then check coincident loads such as inventory carts, workers, pallet staging, and the charging dock. The dock may occupy one small patch continuously, making its location a separate structural question.

A qualified person should also inspect damaged grating, loose panels, corrosion, deflection, and patched penetrations. OSHA requires regular inspection of walking-working surfaces and qualified supervision when a repair affects structural integrity. A permissible total load does not make a deteriorated travel lane acceptable.

• Operating weight at maximum fluid and debris capacity
• Maximum reaction at each wheel and the wheel contact area
• Dock, cable, barrier, and service-access loads
• Permitted travel and parking zones from the structural review
• Prohibited areas around openings, repairs, cantilevers, and pallet gates

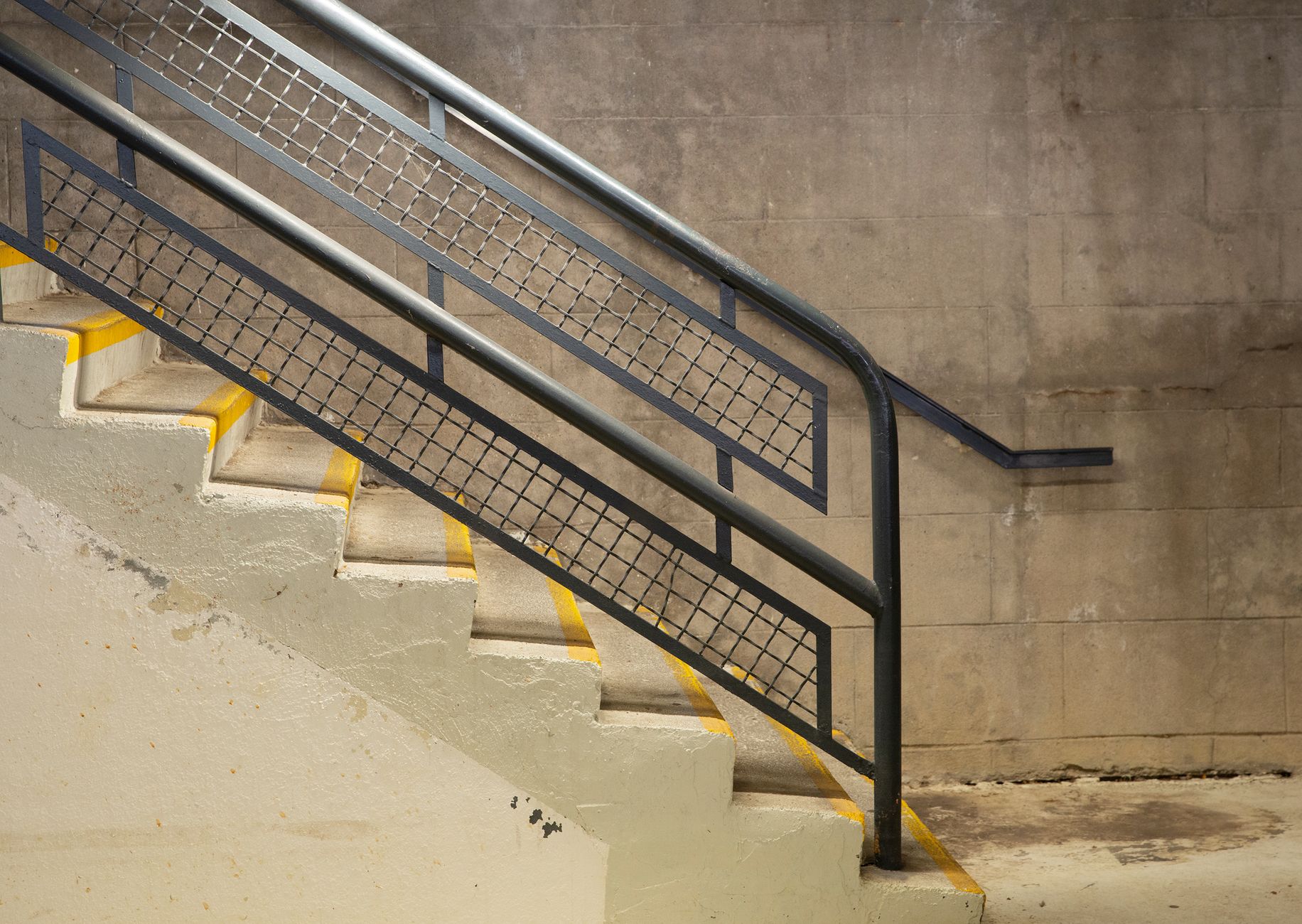

How should the robot behave near guardrails and openings?

OSHA specifies a top edge height of 42 inches, plus or minus 3 inches, for general-industry guardrail systems. It also limits many intermediate openings to 19 inches and requires a top rail to withstand at least 200 pounds applied downward or outward. Those figures describe fall protection for people. They do not certify a rail, mesh panel, or toeboard as a vehicle barrier.

OSHA's minimum toeboard height is 3.5 inches. A low robot might contact or climb a member of that size before its upper sensors recognize the hazard, especially at an angled approach. The site must evaluate the actual geometry rather than assuming an existing toeboard will contain the machine.

Use multiple controls. Mark a conservative virtual exclusion zone inside every exposed edge, keep routine paths away from pallet gates and stair heads, and validate cliff or drop detection on the real deck surface. Add an engineered curb, barrier, mesh, or other physical restraint where the risk assessment calls for one. Any attachment to the guardrail or structure needs approval from the responsible building professional.

Tests should cover glossy surfaces, dark joints, grating, low light, pooled water, dust, and temporary obstructions. Run approaches straight on and obliquely, then repeat them with worn cleaning components and a full tank. A passing demonstration in an open ground-floor aisle does not establish safe behavior beside a drop.

How much aisle width does a compact robot really need?

Chassis width is only the first dimension. Measure the active cleaning head, squeegee, sensor overhang, stopping distance, turning sweep, and the clearance needed to reverse around an unexpected tote. A machine that physically enters an aisle can still be unable to clean it without clipping rack uprights or trapping a picker.

Survey the aisle in its normal operating state. Include carton overhang, step stools, pick carts, stretch wrap, trash bins, fire equipment, and replenishment activity. The controlling measurement is the narrowest repeatable usable width, not the nominal distance between rack faces.

Protect human circulation first. OSHA says exit access must remain at least 28 inches wide at every point, and the required width can be greater for the occupant load. The U.S. Access Board describes a 36-inch continuous accessible route, with 32-inch reductions permitted only at qualifying short points up to 24 inches long. These are life-safety and accessibility dimensions, not targets for squeezing a robot alongside a person.

Create yielding rules at pinch points and designate places where the robot can pull clear. If there is no credible passing space, schedule cleaning outside picking and replenishment windows. A night shift autonomous scrubber should pause when an unexpected person or cart blocks the corridor, not improvise a route through an edge buffer or exit path.

Can the robot use the elevator reliably?

An elevator changes the project from route mapping to building integration. Confirm car dimensions, clear door opening, threshold gap, leveling accuracy, rated capacity, communication coverage, door timing, and space for the robot to enter, rotate if necessary, and exit without striking riders or freight.

The U.S. Access Board's elevator guidance illustrates compliant passenger-elevator configurations with minimum clear door openings of 36 or 42 inches, depending on the car arrangement. Existing cars and material lifts vary, so measure the installed equipment. The ASME A17.1 safety code is the accepted North American guide for elevator design, operation, inspection, maintenance, alteration, and repair.

Coordinate all controls with the building owner, elevator contractor, fire-alarm team, and authority having jurisdiction. Test call registration, car arrival, door reopening, destination selection, timeout behavior, loss of connectivity, and recovery from a missed ride. Elevator fire recall and other emergency modes must override robot missions.

A single robot dedicated to one mezzanine often avoids elevator complexity entirely. If the elevator is essential, decide what happens when it is occupied, out of service, or too crowded. The robot must wait in a protected area that does not block landing controls, doors, pallet traffic, or egress.

Where should the charging dock go?

Place the dock on structurally approved, level flooring with enough approach distance for repeatable alignment. Keep it outside exit access, elevator landings, pallet-transfer zones, guardrail gates, and the turning envelopes of carts. Leave service access around the dock so a technician does not need to work beside an exposed edge.

Confirm electrical capacity, receptacle protection, cord routing, battery documentation, and local fire-code requirements with the facility's electrical and safety teams. UL identifies ANSI/CAN/UL 3300 as a safety standard for service robots and notes that it addresses safe mobility, fire, shock, charger, and battery concerns. Buyers should ask what listing or certification applies to the complete robot and charging system.

Cleaning chemistry adds another layer. The dock should not sit where a leaking recovery tank can reach electrical equipment, floor openings, inventory, or an elevator sill. Set an inspection routine for connectors, cables, contacts, batteries, and fluid systems, and keep the isolation procedure where responders can find it.

Opportunity charging can reduce the battery capacity carried upstairs, but frequent dock movements may add traffic at the charging point. A dedicated upper-level dock avoids repeated elevator trips. It also means power, fire review, service access, and replacement-part handling must work on the mezzanine itself.

What happens when the robot stops upstairs?

Emergency retrieval is a selection criterion, not an afterthought. A disabled machine may stop beside a guardrail, across an exit route, inside an elevator, or behind an immovable cart. The response plan must remove the hazard without asking a worker to lean over an edge, defeat a guardrail, or drag an awkward load down stairs.

Specify an accessible manual brake release, approved tow point, push mode, power isolation, and recovery instructions. Confirm that the chosen recovery device fits through every gate and elevator door. If a lift is the only safe descent method, document what happens during lift failure and how the robot is secured until service returns.

Remote triage can distinguish a mapping fault from a hardware failure, but it cannot replace physical access. Name trained responders for every operating shift, set escalation contacts, and stage approved recovery equipment on the correct level. Record each incident and revise the map or procedure before unattended operation resumes.

• Robot stopped within the edge-exclusion zone
• Blocked stair landing, exit access, or pallet gate
• Robot immobilized across an elevator sill
• Battery fault, smoke, unusual heat, or fluid leakage
• Network loss with the machine in an active pick aisle

Prove the route before expanding the program

A mezzanine pilot should reproduce real work. Run the robot at peak congestion and after hours, with ordinary rack overhang, carts, shadows, dust, wet patches, floor seams, and elevator traffic. Observe near-edge behavior directly and review event logs after every exception.

Service Robot Co. approaches this as an OEM-neutral integration project. We compare machines across manufacturers, conduct site assessment mapping, arrange financing, deploy and integrate the selected equipment, train the staff, and service units through a nationwide U.S. engineer network. One accountable vendor stays with the robot from selection through field support.

Commercial cleaning robot rental, robot leasing for business, and monthly payment programs can support a controlled pilot or phased fleet rollout. The commercial arrangement still needs to specify maintenance included, response coverage, loaner availability, software support, and responsibility for building integrations. Financing cannot cure a poor physical fit.

Acceptance should be based on documented evidence. Approve operating zones, forbidden zones, stopping behavior, elevator cases, dock alignment, alarm delivery, manual controls, and recovery drills before authorizing autonomous shifts. Then repeat critical tests after layout changes, rack work, guardrail modification, elevator service, or software updates.

• Signed structural and electrical approvals
• Verified edge, opening, and pallet-gate controls
• Measured route, turning, passing, and egress clearances
• Successful elevator and communications fault tests
• Timed recovery drills with trained shift personnel
