From Palletizing to Packing: A Guide to Cobot End Effectors

What is a Cobot End Effector?

A collaborative robot, or cobot, is just a strong, flexible arm without a tool at the end of it. What makes it useful is its 'hand', known in the industry as an end effector or End-of-Arm Tooling (EOAT). This device, mounted to the robot's wrist, is what allows a cobot to grip, inspect, pack, or process items.

Choosing the right end effector is arguably more important than choosing the cobot arm itself. The EOAT is the part that directly interacts with your products. An incorrect choice can lead to damaged goods, inefficient cycle times, and an automation project that fails to deliver. The versatility of a cobot is entirely unlocked by the tool it wields.

This guide explains the primary types of end effectors and which are best suited for common industrial tasks. Understanding these components is the first step toward successful end-of-line automation, from simple pick-and-place to complex, sensor-driven quality control.

What Are the Main Categories of End-of-Arm Tooling?

End effectors are broadly divided into three main families: grippers, process tools, and sensors. Each category serves a distinct purpose, turning a general-purpose robotic arm into a specialist for a specific job.

Grippers are the most common type, designed to grasp and manipulate objects. They function like a human hand, enabling the robot to perform tasks such as pick-and-place, machine tending, and assembly. Process tools, on the other hand, perform an operation on a part. This category includes tools for sanding, polishing, welding, and dispensing materials like glue.

Sensors represent the third category, giving the cobot a sense of its environment. These include cameras for vision guidance, force/torque sensors for a sense of touch, and laser scanners for precise measurement. Often, sensors are used in combination with grippers to perform more advanced tasks.

How Do I Choose the Right Gripper?

Grippers are powered in several ways, with vacuum, pneumatic, and electric being the most common. The right choice depends entirely on your application's specific needs, including the item's properties and the required speed.

Here is a breakdown of the primary gripper types:

• Vacuum Grippers: These use suction cups to lift objects, making them perfect for handling flat, smooth items like boxes, bags, and sheets of glass or plastic. They distribute force evenly, which is excellent for fragile items, but they are not suitable for porous materials where a seal cannot be formed.
• Pneumatic Grippers: Powered by compressed air, these grippers are fast, powerful, and cost-effective, making them a mainstay in manufacturing. Their high grip force and durability are ideal for high-speed machine tending and material handling. According to one 2026 market analysis, about 68% of new cobot deployments utilize pneumatic grippers.
• Electric Grippers: Also called servo-electric grippers, these use motors to control the movement of their jaws or fingers. Their key advantage is precise control over force and position. This makes them ideal for handling delicate components, performing precise assembly, or when an application requires gripping a variety of part sizes.
• Magnetic Grippers: As the name suggests, these use magnets to pick up and move ferrous metal parts. They are simple, reliable, and effective for tasks involving steel sheets or machined components.

What Role Do Sensors Play?

Sensors give a cobot awareness, transforming it from a machine that simply repeats a path into one that can perceive and react to its environment. This capability is crucial for advanced tasks, improved safety, and higher quality output.

Force/torque sensors are among the most important. Mounted at the robot's wrist, they allow the cobot to 'feel' contact and resistance. This feedback enables precise force control for sanding or polishing, ensuring consistent quality. It also enhances safety, as the sensor can detect unexpected contact with a person or object and command the robot to stop immediately.

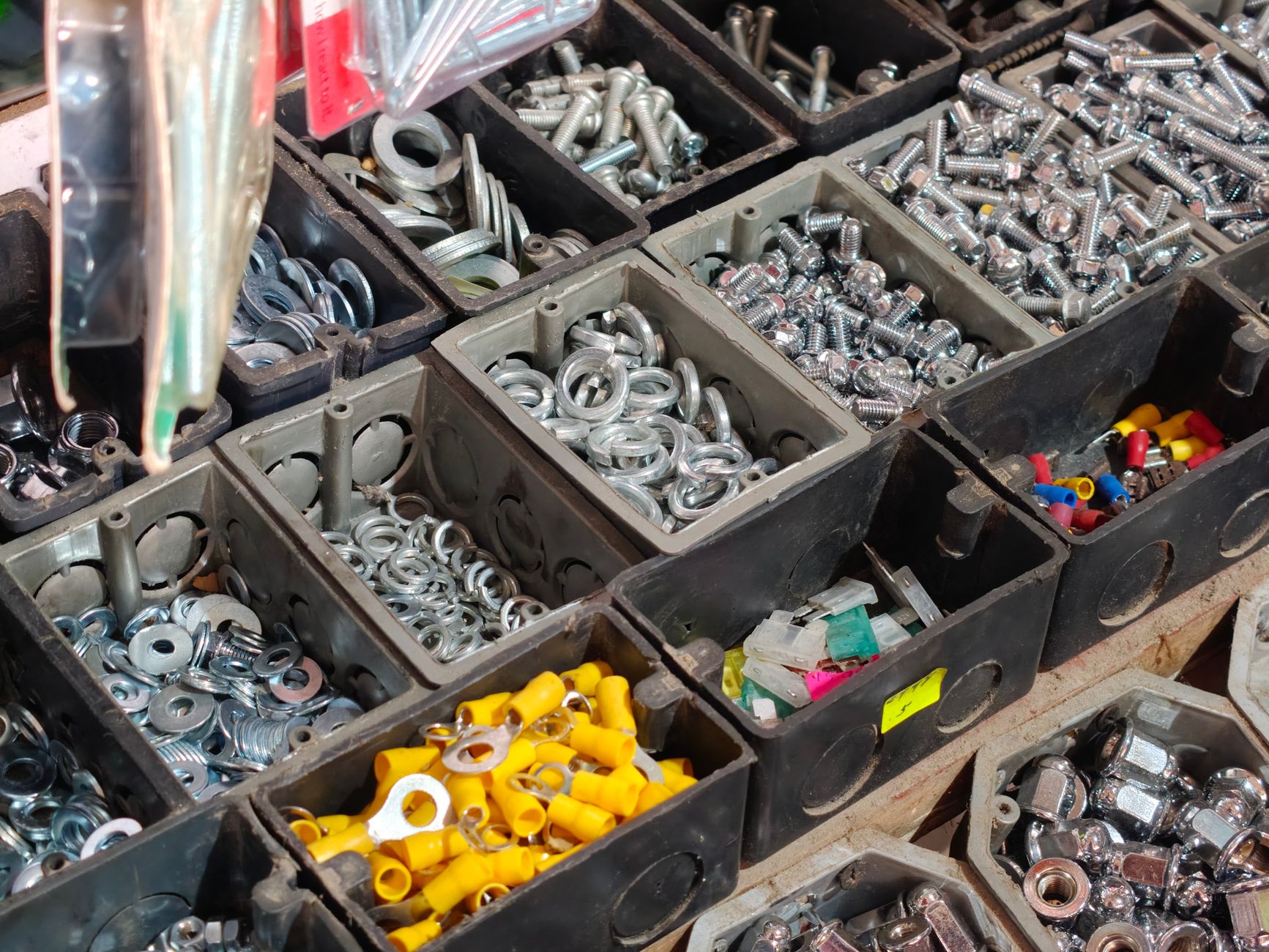

Vision systems, including 2D and 3D cameras, act as the eyes of the cobot. They are essential for applications where parts are not perfectly positioned. A vision system can identify an object's location and orientation, guiding the gripper to pick it up accurately. This is fundamental for tasks like bin picking, where components are jumbled in a container, and for advanced quality control inspections.

How Are End Effectors Used in Common Applications?

The effectiveness of a cobot in any role is defined by its tooling. Matching the end effector to the specific operational demands of palletizing, machine tending, or inspection is what determines success.

For palletizing and end-of-line automation, vacuum grippers are often the top choice. They can handle cardboard boxes and sealed bags gently and efficiently, and larger vacuum arrays can be configured to pick up multiple items or entire layers at once. For pails or other containers with handles, specialized pail grippers are a more effective option.

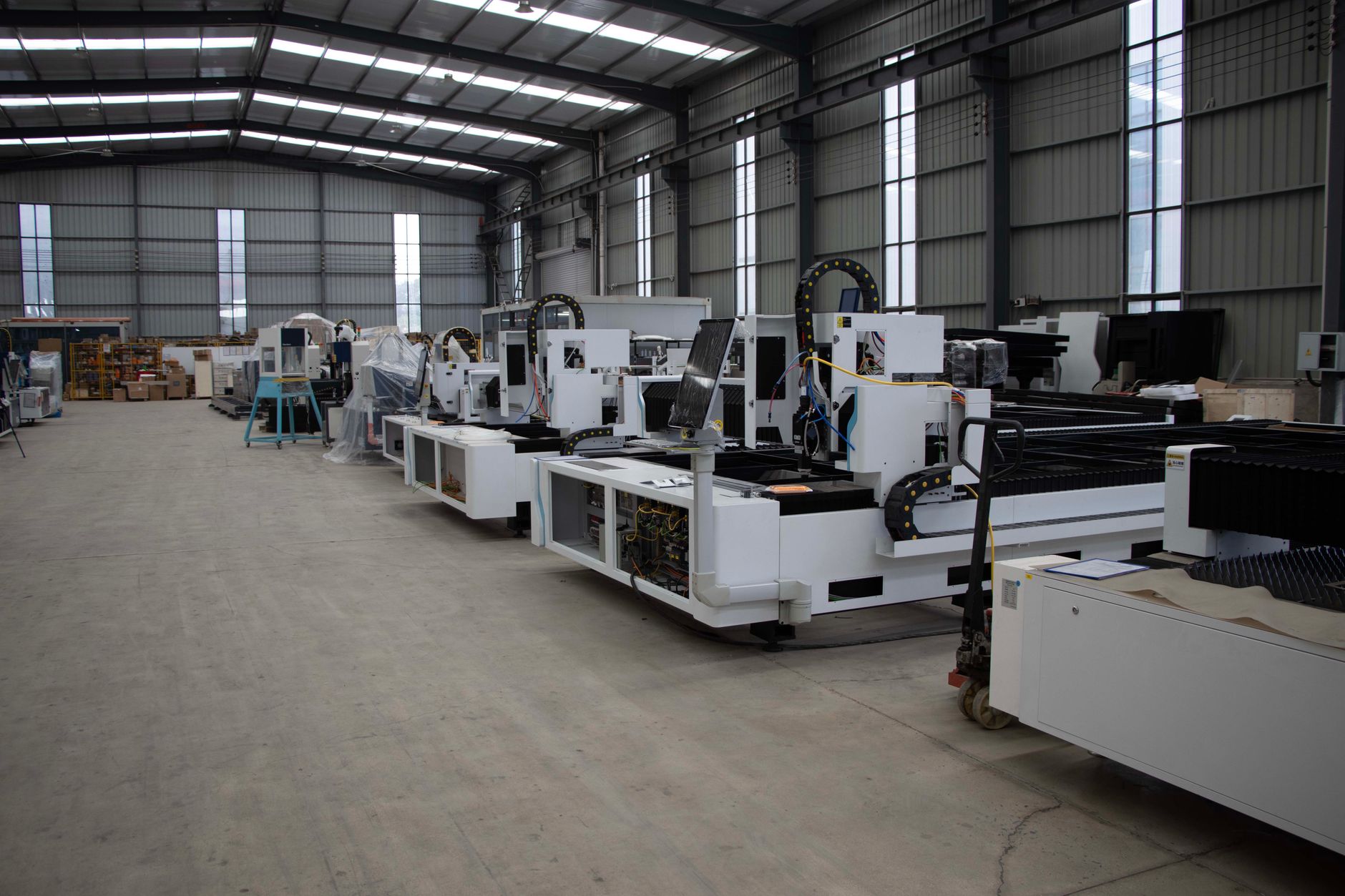

In machine tending, a cobot's job is to load and unload parts from machines like CNCs or injection molders. This repetitive work demands speed and consistency, making pneumatic grippers a very common choice due to their fast cycle times. For applications involving a high mix of part sizes, the programmability of electric grippers allows for quick changeovers without manual adjustments.

Quality control inspection relies heavily on sensors. A cobot might use a camera to perform visual inspections for defects, a laser scanner to check dimensional accuracy, or a probe with a force sensor to test the fit of assembled parts. These automated inspections deliver more consistent results than manual checks, especially over long shifts.

Why is Expert Integration Critical for End-of-Arm Tooling?

Choosing the right end effector is only part of the puzzle. Ensuring it communicates and functions correctly with the cobot arm and your other factory systems requires deep integration expertise. This is where many do-it-yourself automation projects falter, leading to delays and unexpected costs.

A cobot arm from one manufacturer, a gripper from another, and a vision system from a third must all work together perfectly. This requires not just physical mounting but also software and electrical integration to ensure commands are passed and feedback is received correctly. An experienced integrator handles this complexity.

At Service Robot Co., we are OEM-neutral. This means we are not tied to any single robot or tooling manufacturer. Our priority is to select the absolute best combination of arm and end effector for your specific job, whether it's for a palletizing robot rental or a sophisticated inspection cell. We provide one point of contact for the entire lifecycle, from the initial site assessment and deployment to ongoing service from our nationwide engineer network. This turnkey robot deployment approach ensures you get a system that works, not just a box of parts.

What Are the Future Trends in Cobot End Effectors?

The world of cobot end effectors is evolving rapidly, driven by advancements in artificial intelligence and material science. The next generation of tools will be smarter, more adaptable, and capable of handling a wider range of tasks.

AI-driven vision systems are making bin picking more reliable than ever. By combining 3D vision with intelligent software, a cobot can identify the best way to grasp an object in a cluttered, random pile. We are also seeing the rise of soft grippers, often made from food-grade, flexible materials that can gently handle delicate and irregularly shaped items like produce or baked goods.

Another key trend is the integration of multiple sensor types directly into the gripper. Recent developments include commercializing fingertips with high-frequency tactile sensing, giving a standard gripper a precise sense of touch. This allows a cobot to generalize grasping behaviors across different materials without extensive programming, making automation more flexible for high-mix production environments.
