Key takeaways
- Detention vaults are often permit-required confined spaces, so remote inspection can reduce entry frequency.
- Crawlers fit sump silt, joint cracks, and low light when you need contact and stable video.
- Tethered pan-tilt units work when access is a single manhole but the floor span is wide.
- Match lighting, traction, and washdown ratings to standing water and grit, not just dry demo floors.
Why inspect detention vaults remotely at all?
Stormwater detention vaults sit underground to slow peak flows and trap sediment before discharge. They are also maintenance liabilities. Sediment builds in floor lows, trash wedges against outlet structures, and coating failures start where water stands between storms. Someone has to verify function before the next winter surge.
Many vaults meet OSHA confined space definitions because entry is limited, they are not designed for continuous occupancy, and atmospheres can change after stagnation. According to OSHA, employers must test oxygen, flammable gases, and toxic contaminants in that order before authorized entry, and maintain monitoring during work when required. Remote robots do not erase those rules, but they can answer visual questions without opening a permit entry for every quarterly look.
Property operators and civil contractors use inspection robots to document sediment depth, trash accumulation, structural cracks, and outlet control damage on a repeatable route. That record supports maintenance bids, municipal compliance letters, and decisions about when a vacuum truck is truly needed.

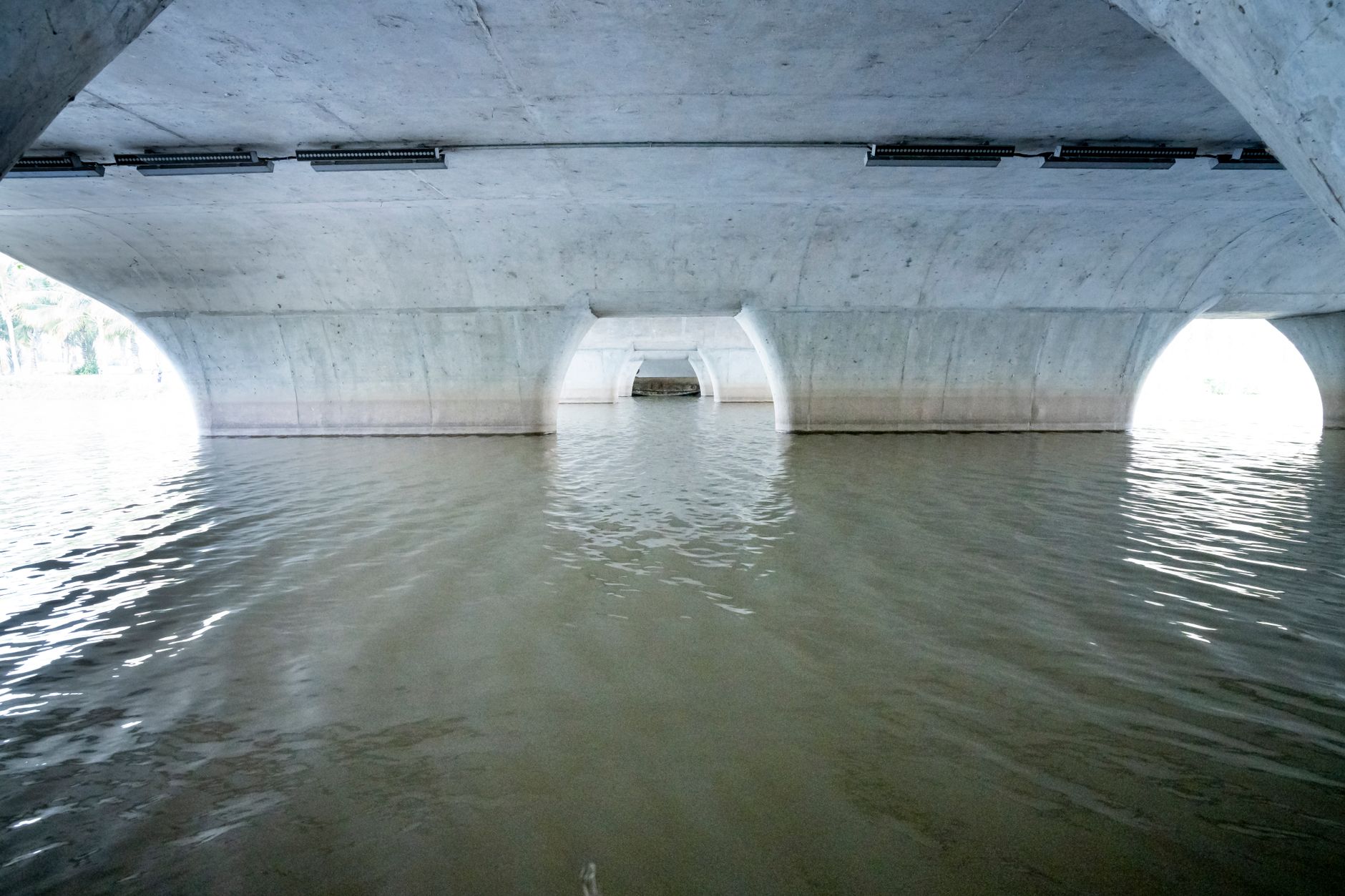

What access geometry do vaults impose on robots?
Design manuals for detention vaults often require access openings within roughly fifty feet of any point on the floor, with ladders and handholds sized for human maintenance. Tacoma and Washington stormwater BMP guidance also calls for ventilation pipes or removable panels so crews can ventilate before entry. Your robot has to fit those same choke points.

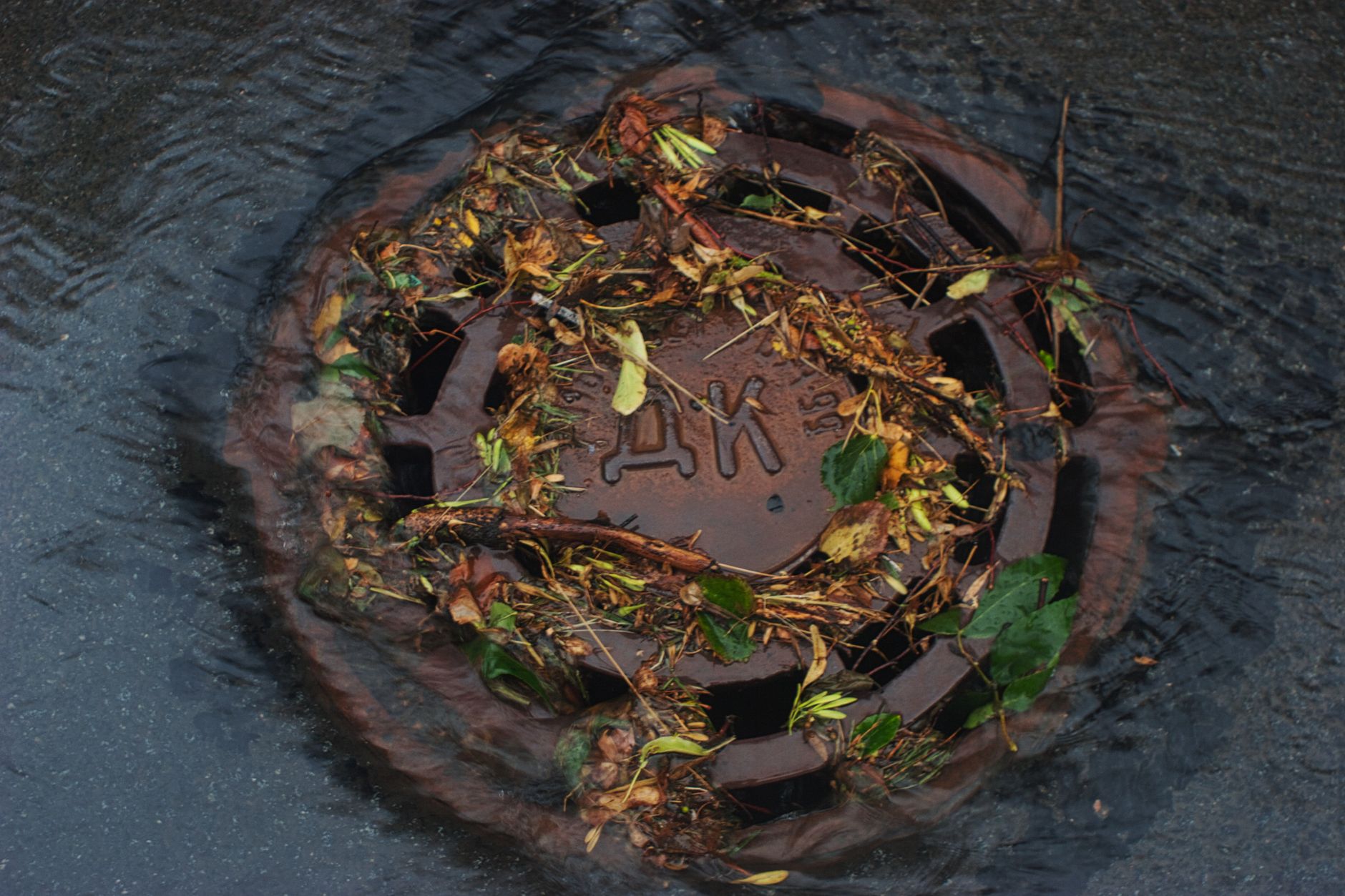

Manhole diameters, grate types, and ladder wells define the largest package you can lower without rigging. Vaults with minimum internal heights around seven feet give headroom for a mast camera, but low arches and stepped floors still catch tether lines. Measure the narrowest portal on site, not the spec sheet drawing.
Long rectangular vaults favor ground robots that drive the floor while a tether pays out from the entry point. Deep or segmented chambers may need a second access drop or a relay point mid-vault so cable weight does not stall the platform.
When is a crawler the right choice?
Tracked or wheeled crawlers win when the floor is wet, gritty, or uneven and you need stable proximity video along walls and outlet structures. They can pause at a joint, zoom on rebar exposure, and creep through shallow ponded areas if traction and ingress protection are rated for it.
Crawlers also carry auxiliary lighting and sometimes simple manipulators for moving light debris off a lens guard. That matters in vaults where a single overhead light leaves the downstream corner in shadow.
Tradeoff: crawlers need a clean enough path to turn. If sediment berms block the aisle, budget a partial clean or accept that the robot only covers the inlet bay until maintenance opens the floor.
When do tethered cameras beat crawlers?
A tethered pan-tilt-zoom head on a reel works when the vault is shallow, the floor is relatively clear, and you mainly need ceiling and wall scans from one entry. Operators can snake the head along a gutter line or suspend it from a temporary gantry for outlet cone inspection.
Tethered systems are lighter to mobilize for property managers who inspect dozens of small vaults across a retail portfolio. Setup time stays low if you standardize one reel length and one lighting ring per truck.
They struggle when you need to traverse fifty feet of silted floor without human spotters. In that case a crawler or a hybrid cart pays for itself in fewer aborted runs.
Do drones belong inside detention vaults?
Indoor micro drones tempt teams who want to skip floor debris entirely. In practice, GPS-denied flight in a damp concrete box demands skilled pilots, prop guards, and often mesh or cage protection so a wall strike does not end the flight in standing water.
Drones can excel in tall overflow structures or atrium-like chambers where a ground robot would need an impractical mast. For typical shallow detention vaults with seven foot clear heights, drones are niche, not default.
Regulators and insurers may ask for flight logs and battery safety plans. Treat drones as a supplemental view, not the only tool, unless your risk review explicitly accepts them.
How should you light and record for defensible reports?
Municipal reviewers want dated video or stills tied to structure IDs, not a single hero frame. Program stops at inlet, outlet, floor low points, and joint lines. Burn in vault name, GPS when available, and compass heading if your software supports it.
LED temperature affects how cracks read on gray concrete. Cool white often shows staining boundaries; warm light can hide thin efflorescence. Carry a secondary handheld light for human entry days so imagery matches what a tech will see later.
Store files where your CMMS or stormwater log already lives. Service Robot Co. can help property teams spec inspection robots alongside patrol and cleaning fleets, but the inspection record still belongs in your compliance folder first.
What safety workflow should stay human-led?
Robots reduce entry; they do not replace gas testing when a person must descend. If sediment removal or structural repair requires entry, run the full permit program, ventilation plan, and rescue readiness OSHA expects.
Use robots for routine condition surveys, post-storm checks when atmosphere status is unknown, and pre-bid documentation for vacuum contracts. Flag any robot loss of traction or unexpected vapor reading as a stop sign for human entry until atmospheres are retested.
Train attendants to manage tether tension and retrieval if the platform stalls. A stuck robot is still a confined-space event for recovery planning even if no human entered.
How do you pilot a vault inspection robot program?
Start with three vaults: one clean, one moderate sediment, one problem child near an outlet you already know leaks. Run the same route twice to compare repeatability. Note setup minutes, battery swaps, and whether imagery convinced a manager to schedule maintenance.
Compare cost to a confined-space crew doing only visual entry. Even avoiding one permit entry per quarter on a large portfolio can fund lease payments when vacuum trucks are not yet required.
Service Robot Co. offers vendor-neutral selection, rental or monthly lease paths, integration with your reporting workflow, and nationwide service when a wheel encoder fails before a storm. Pilot with explicit success criteria: coverage percent of floor, crack detectability, and time on site.
