Key takeaways
- Rated payload is a declared machine limit, not an automatic approval for every load and route.
- Carrier hardware, top modules, restraints, and permanent accessories consume payload capacity.
- Center of gravity, acceleration, turns, slopes, and braking can set a lower limit than static strength.
- A defensible safety margin comes from documented risk assessment and route testing, not a universal percentage.
What does the headline rating actually tell you?
An AMR's rated payload is not necessarily the weight of product it can safely carry through your facility. It is a declared capacity tied to defined conditions. The usable payload is the lower application limit imposed by the configured robot, carrier, load geometry, motion settings, route, and documented safety case.
Start by asking exactly what the rating includes. Depending on the specification, the quoted figure may describe weight supported by the mobile base, while the top module, rack, conveyor, lift, fasteners, guards, and load restraints must all be counted against it. A 1,000-pound rating does not automatically leave 1,000 pounds for inventory.
The practical equation is simple: usable product payload equals the validated gross carried load minus every permanent and reusable item riding on the base. That result is still provisional until the complete machine stops, turns, climbs, docks, and handles foreseeable disturbances safely on the real route.
Why does center of gravity change the answer?

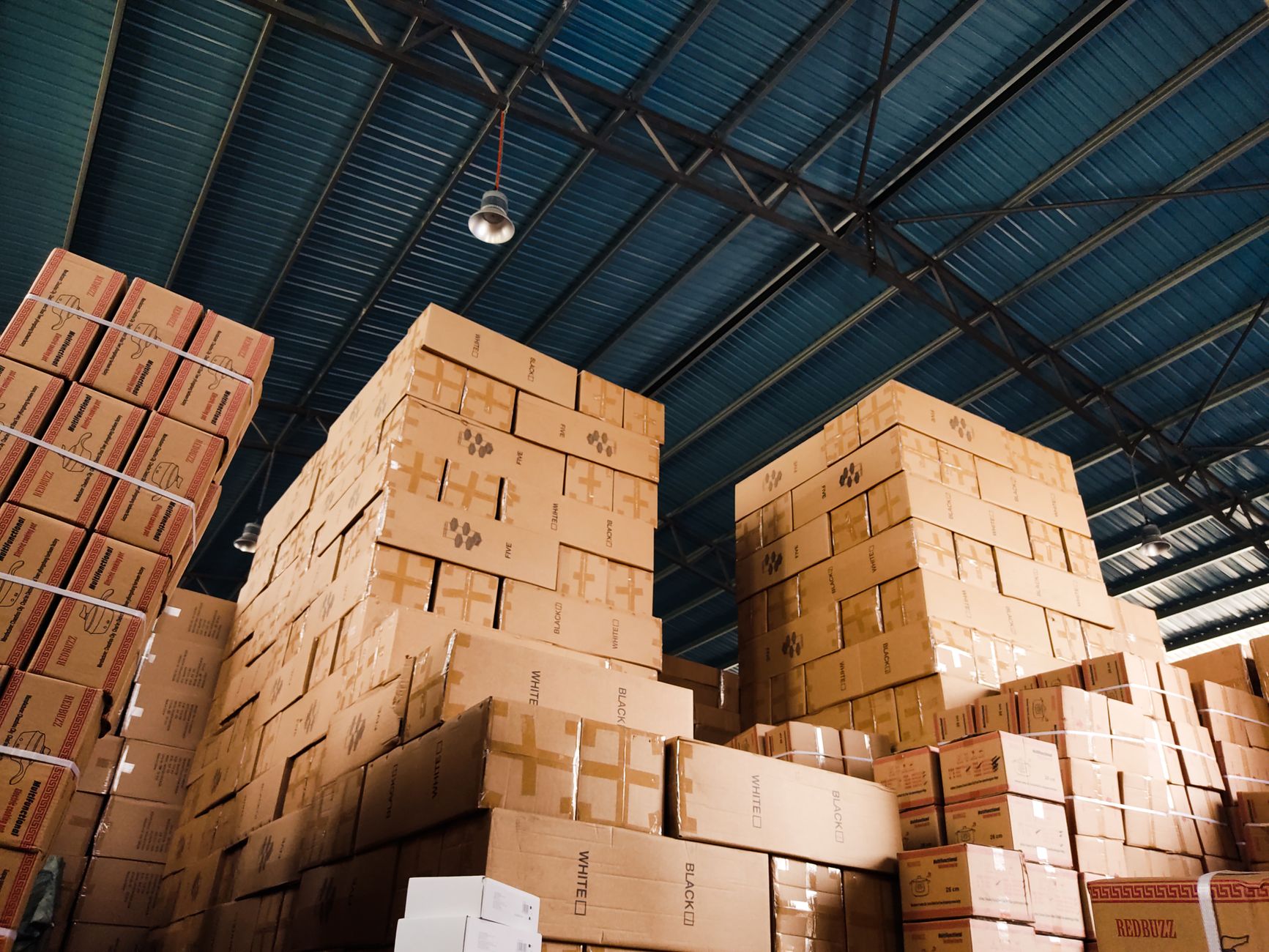

Mass alone does not describe stability. Its location matters. A tall rack, an offset tote, or a dense component placed near one edge moves the combined center of gravity of the robot, top module, carrier, and product toward the boundary of the wheel support area.
OSHA illustrates the underlying load-moment principle with a powered industrial truck rated for 3,000 pounds at a 24-inch load center. The allowable moment is 72,000 inch-pounds. Moving the load center to 30 inches reduces the calculated load to 2,400 pounds. That is a 20 percent reduction without changing the vehicle itself.
That example is not an AMR derating formula. It shows why two loads with identical scale weights are not equivalent. AMR selection should obtain the permitted horizontal and vertical center-of-gravity envelope, then check the worst loading pattern, including partially filled racks and items placed in the least favorable position.
How do acceleration, turns, and stopping alter capacity?
A stationary load creates a static demand. A moving load adds inertial force. Acceleration pushes the effective load rearward, braking shifts it forward, and cornering drives it sideways. Flexible racks can sway, liquid containers can surge, and unsecured cartons can slide before the chassis reaches its own stability limit.
Stopping distance contains both response travel and braking travel. Under constant deceleration, the braking component grows with the square of speed. Doubling speed therefore makes that component four times as long if available deceleration stays unchanged. Added mass, wheel slip, floor contamination, brake limits, and a downhill grade can further change the measured result.
This is why a payload that works at a slow commercial robot demo may fail at production speed. Validate normal stops, protective stops, and emergency behavior with the heaviest credible load and its worst center-of-gravity position. Slowing the AMR can improve dynamic behavior, but it cannot raise a structural rating or cure an unstable carrier.
According to OSHA's robot safety guidance, each application needs its own risk assessment because path, task, equipment, and nearby workplace features create distinct hazards. Stopping and speed settings belong to that application assessment, not just the base specification.
What changes when the route includes slopes?
A grade adds a component of gravity along the direction of travel. Climbing raises traction and drive demand. Descending increases the braking duty needed to hold speed and stop. A cross-slope shifts the combined center of gravity toward one side, which can narrow the stability margin during a turn.
The United Kingdom's Health and Safety Executive warns that a vehicle proven safe uphill should not automatically be assumed safe downhill. Its workplace transport guidance also advises avoiding turns across slopes and keeping speed low. These are general transport principles, not substitute AMR limits.

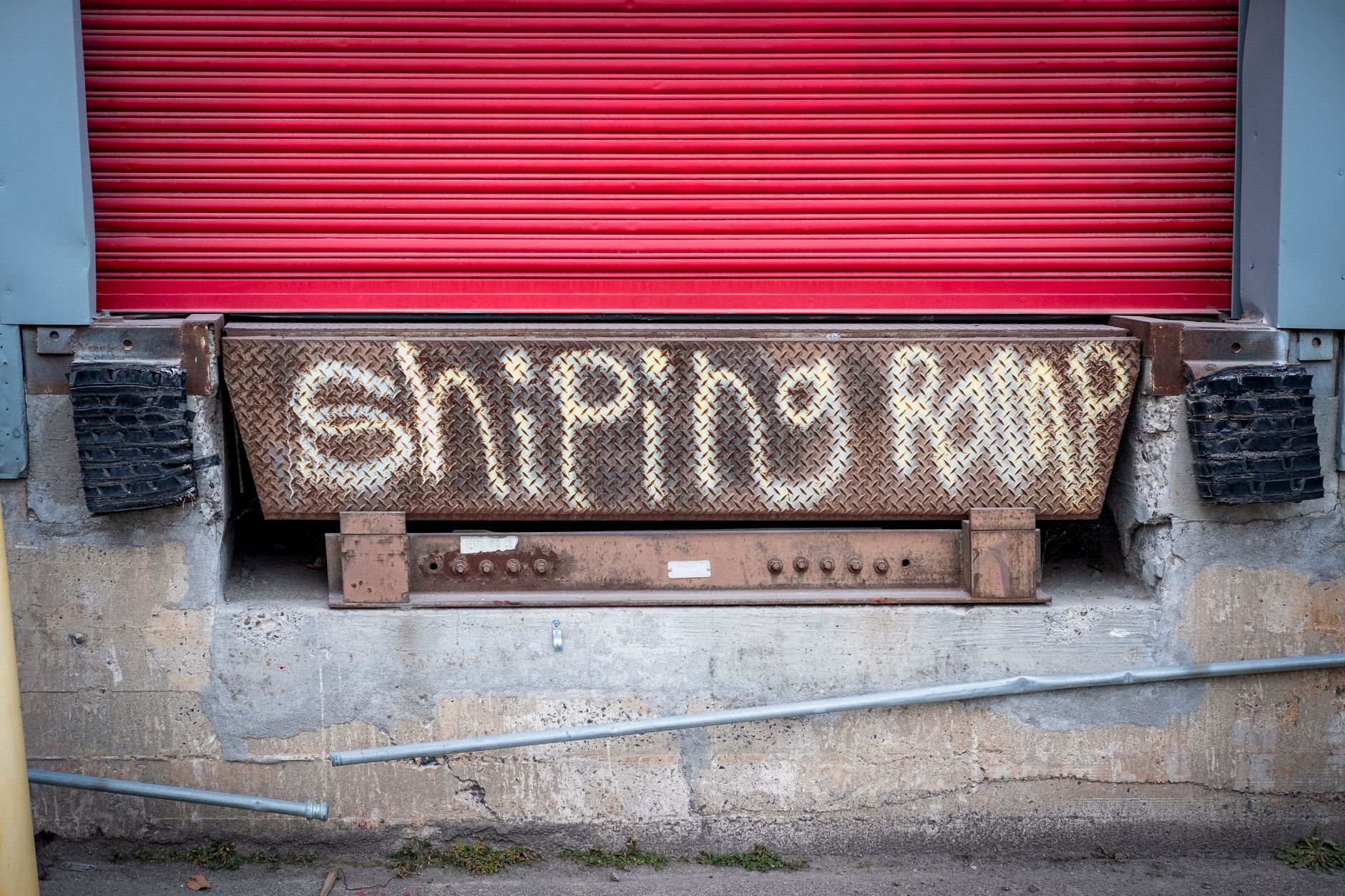

Record the route's maximum longitudinal and cross-slope, ramp transitions, expansion joints, thresholds, surface material, and likely contamination. Use measured values rather than a floor-plan assumption. A short ramp near a dock or fire door may govern usable payload for the entire mission.
How much capacity does a top module consume?
Every top module is payload before it carries anything. Its frame, lift, conveyor, rollers, cart interface, sensors, guarding, controller, cabling, and fasteners add mass. Their location can matter more than their total weight because equipment mounted high or beyond the wheelbase increases the overturning moment.
The module can introduce new dynamic forces too. A lift changes center-of-gravity height. A conveyor starts and stops cargo relative to the base. A tug hitch applies force behind the chassis, while a rack-mating mechanism may create an offset load during transfer. The completed machine must be assessed in every operating state, not only with the module parked.
The current U.S. standards framework reflects this distinction. ANSI/RIA R15.08 Part 1 addresses the industrial mobile robot, while Part 2, published in 2023, addresses systems and applications. ISO 3691-4:2023 likewise says the condition of the operating zone significantly affects safe operation of a driverless industrial truck system, a category that expressly includes autonomous mobile robots.
How should buyers calculate a provisional usable payload?
Begin with the manufacturer's declared rating and every condition attached to it. Then build a mass and geometry ledger for the complete moving assembly. Do not hide carrier weight inside an informal allowance or assume optional equipment was included in the headline figure.
A useful worksheet separates structural capacity, stability, traction, braking, load retention, and route constraints. The lowest validated limit wins. An arbitrary rule such as always using 80 percent of rated payload can be overly conservative for one application and dangerously generous for another.
The provisional product allowance should include these deductions and checks:
- Subtract the measured mass of the rack, deck, conveyor, lift, hitch, enclosure, fasteners, and reusable dunnage.
- Map the loaded center of gravity in height, length, and width for full, partial, and uneven loading patterns.
- Confirm permitted acceleration, deceleration, speed, turning radius, slope, and cross-slope for that configuration.
- Account for product movement, including slosh, caster swivel, rack flex, and sliding inside totes.
- Reserve a documented application margin for measurement uncertainty, wear, load variation, and foreseeable misuse.
- Record the resulting product limit by route and carrier type rather than publishing one fleet-wide number.
What should a production payload test prove?

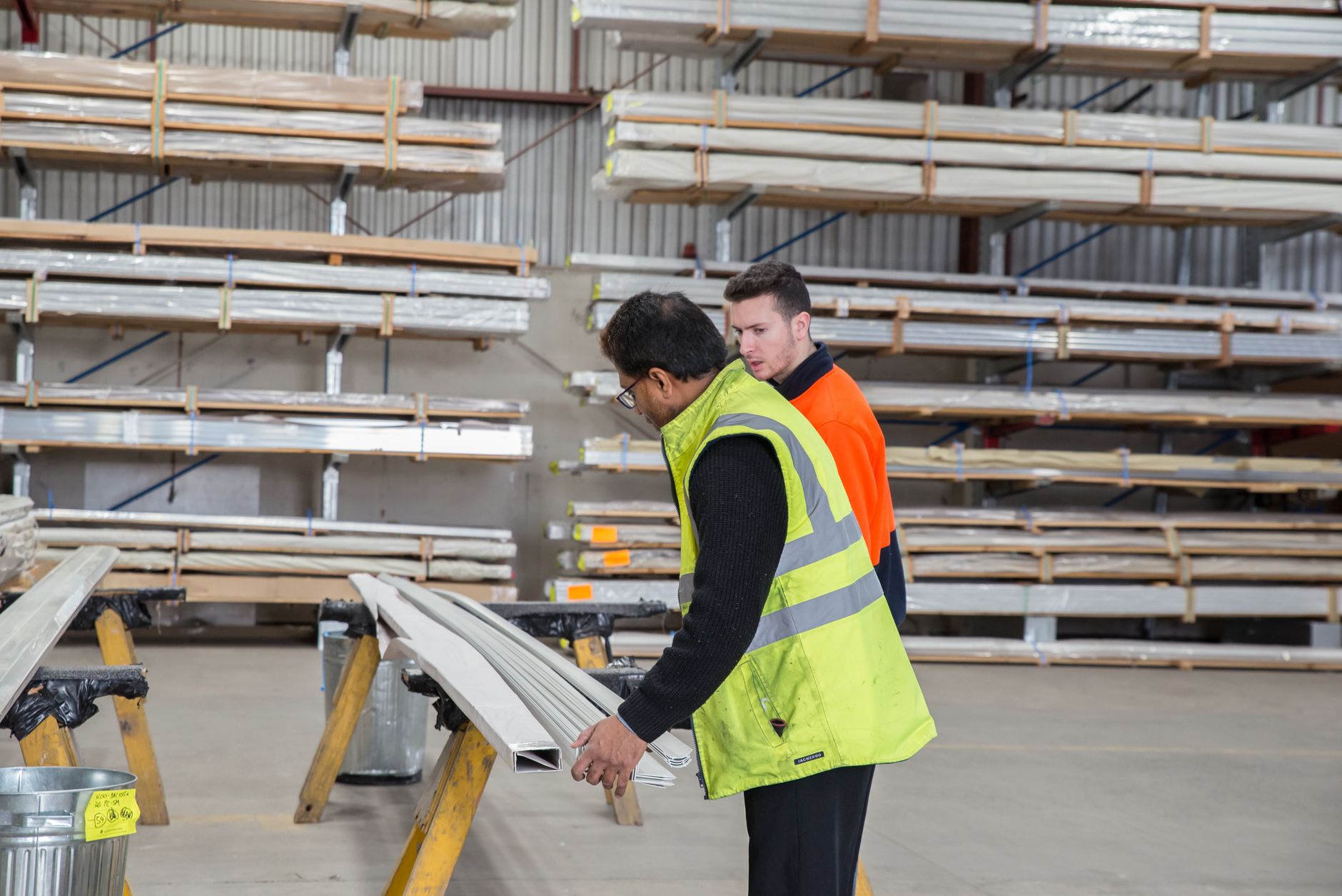

A payload test should reproduce the hardest credible mission, not a ceremonial lap on clean, level concrete. Test the minimum, typical, and maximum load patterns at approved production speeds. Include the steepest grade, tightest turn, roughest transition, longest stopping approach, docking event, and busiest pedestrian interaction.
Measure stopping distance, load movement, wheel slip, path tracking, docking repeatability, clearance, motor or brake warnings, and any tilt or stability alarms. Repeat tests with the center of gravity in its least favorable allowed position. Reassess after changes to the carrier, route, software settings, floor coating, or product mix.
