Robotic Inspection of Theater Fly Systems: Practical Guide

Why are theater fly systems hard to inspect on schedule?

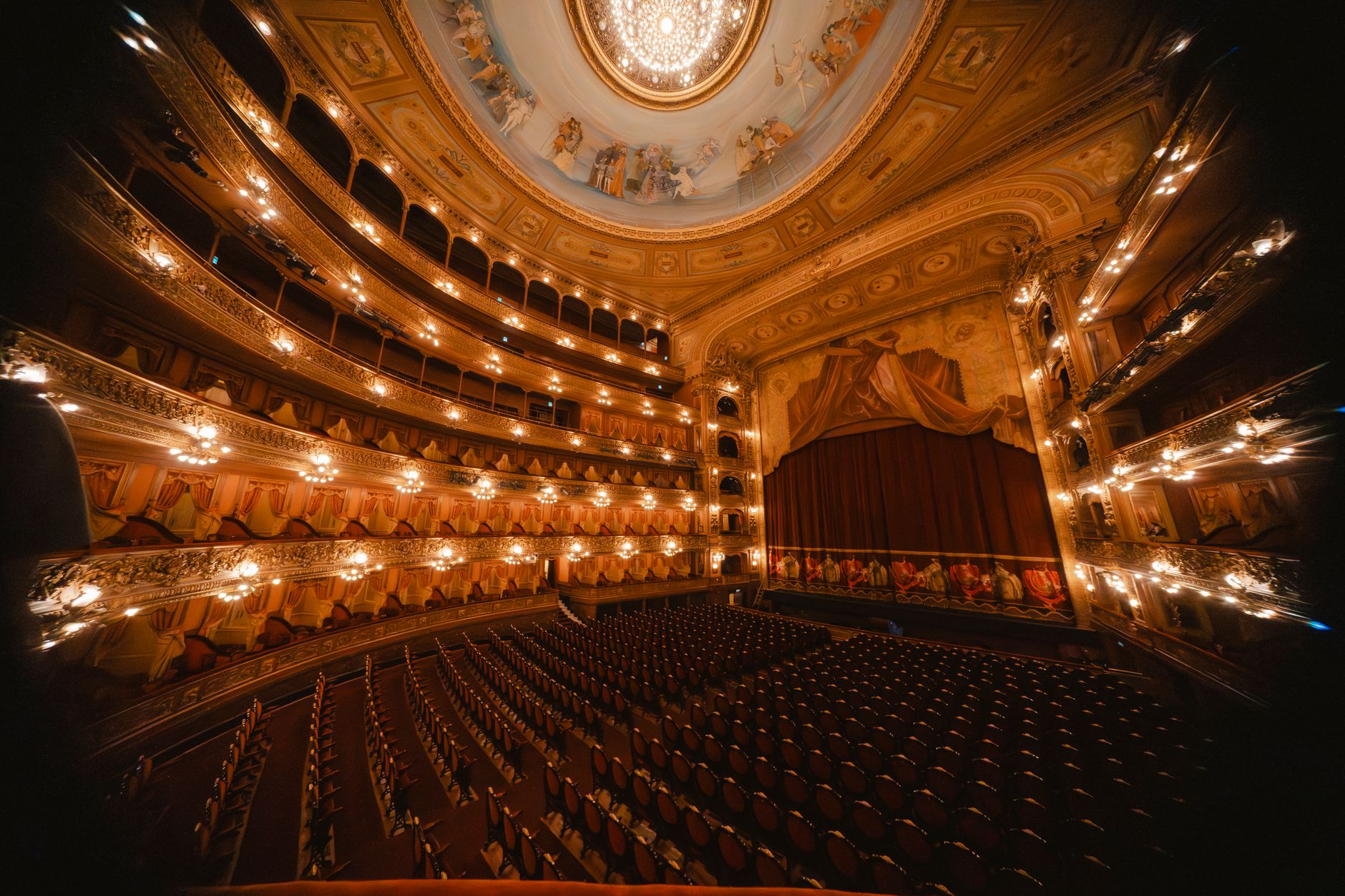

Fly lofts stack sheaves, head blocks, lift lines, and battens where a quick floor walk cannot see wear at the grid. Schools and civic theaters defer climbs when budgets lack lift rentals or when shows stack back to back. Deferred checks let cable fatigue, misaligned sheaves, and loose hardware hide until a line chatters during a focus call.

Robotic inspection of theater fly systems adds repeatable photos and video from programmed paths in the grid and along catwalks. A compact crawler or stabilized camera on a pole reaches sheave mouths and termination plates while riggers stay on protected walkways. The deliverable is indexed imagery your qualified inspector reviews before signing the annual report.

Documentation also helps facilities that rotate between community groups. Each renter sees the same baseline photos instead of inheriting verbal handoffs about which arbor was noisy last season.

What do ANSI and building codes require?

ANSI E1.47 Recommended Guidelines for Entertainment Rigging System Inspections define inspector qualifications, inspection levels, and reporting expectations for venues that use rigging to move scenery and luminaires. NFHS guidance summarizes that qualified inspectors should have at least five years or 10,000 hours of relevant entertainment rigging experience, and that operation experience alone is not enough.

Level 1 inspections focus on accessible components such as battens, arbors, rope locks, and blocks, and are recommended annually. Level 2 inspections require access equipment to examine grid level attachments, terminations, and less visible hardware. ANSI tables recommend Level 2 at least every five years for many manual counterweight systems, annually for motorized systems, and after major installs or repairs when history is unknown.

The International Building Code Section 20.9.1 states that rigging systems shall be inspected annually, with Section 20.9.1.1 requiring that work by a qualified person in jurisdictions that adopt the code. Local amendments and manufacturer bulletins can demand more frequent checks than the baseline.

Where can robots improve grid and fly loft documentation?

Grid iron passes benefit from fixed photo stations at each head block pair. A rover can pause, zoom on sheave grooves, and capture shackle pins without occupying a lift for the entire loft.

Along fly galleries, mast or rail mounted cameras pan battens for sag, knot slippage, and missing safety wire. Timestamped files map to arbor numbers your shop already uses.

When robotics cannot replace hands on torque checks, the robot still cuts how long a lift must hold position. That matters in rented lifts billed by the day.

• Grid level: sheave alignment, cable stacking, hardware corrosion.
• Gallery level: batten endpoints, stop collars, label legibility.
• Stage level: rope lock engagement photos for training audits.

What should motorized fly inspections add?

Motorized and automated systems carry brake wear, encoder drift, and limit switch issues that manual galleries hide until a runaway cue. ANSI aligned guidance treats many motorized installs as candidates for deeper annual review than manual counterweight gear on a five year Level 2 cycle.

Robot passes should include drive racks, chain buckets, and catwalk views of cable drums where permitted by your lockout plan. Thermal imaging can flag hot brake housings when the system is exercised under controlled conditions.

Never bypass manufacturer control interlocks to chase a photo. Coordinate with the automation vendor and your qualified inspector before powered moves.

How do fall protection and lift plans interact with robots?

Even when robots reduce time on the grid, any human follow up still needs fall protection, rescue plans, and trained attendants per your venue policy. Treat robot routes like any other overhead work during dark days.

Schedule imaging when the stage is clear of flown scenery and electrics are locked out. Post the loft so no one energizes a line while a camera head sits in the path.

Store harness inspection dates beside robot maintenance logs so auditors see one consolidated safety file.

What limits should reports state plainly?

Robotics does not certify a fly system. Only the qualified person named on your ANSI style report can accept or reject components. Robot output is supplemental evidence: photos, video, and optional thermal notes.

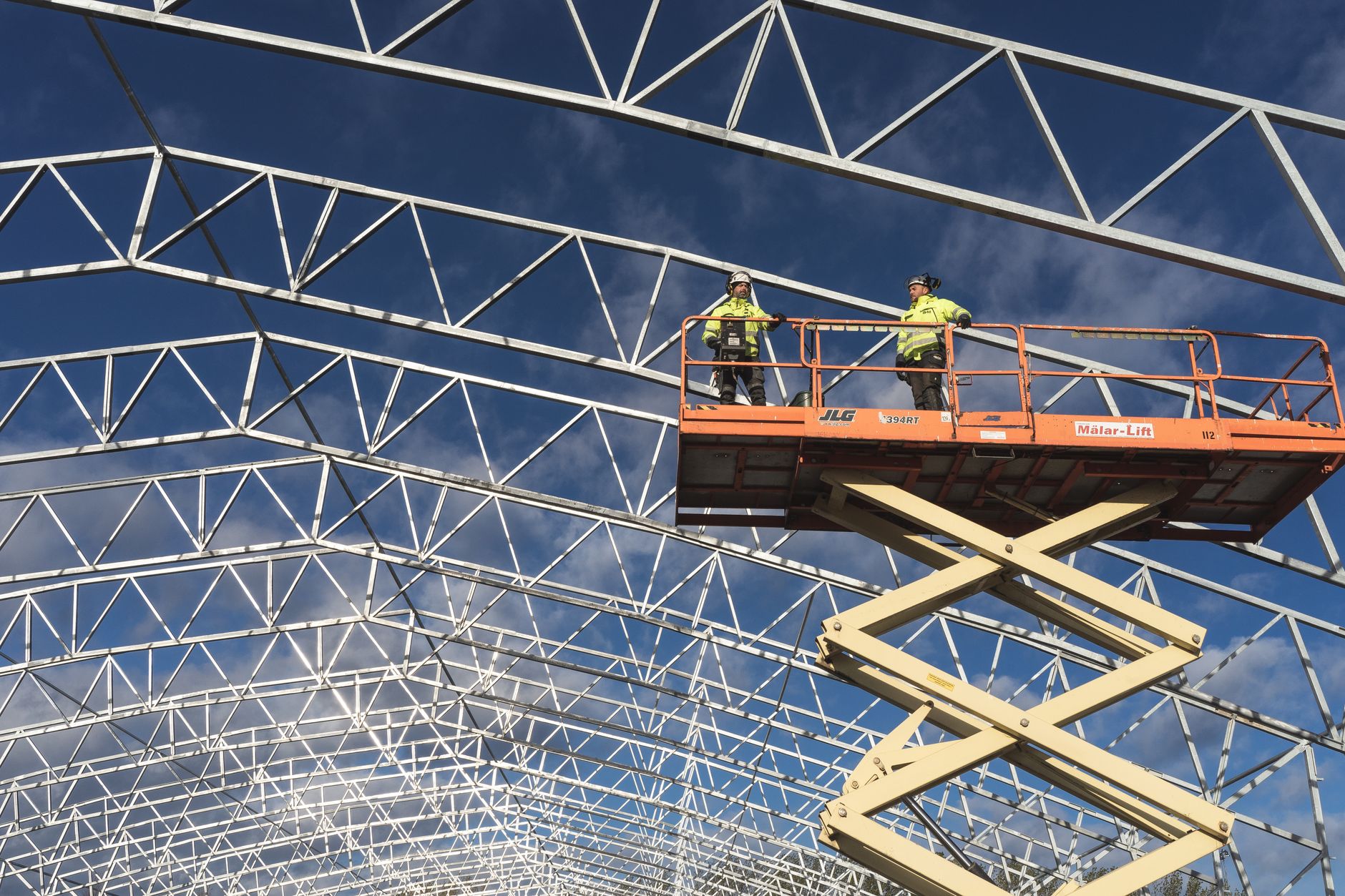

Call out blind zones behind ductwork, masking, and old hemp relics the camera could not reach. Recommend Level 2 aerial access when imagery shows a suspect sheave the robot could not resolve.

Keep raw files for the interval between annual inspections so trend lines show groove wear rather than a single snapshot.

How should schools and civic theaters budget the work?

Annual Level 1 contracts plus periodic lifts dominate small theater budgets. Robotics spreads documentation across the year so the lift day focuses on hands on tasks that require touch.

Inspection robot rental fits districts that cannot justify owning a grid crawler used twice annually. Month to month programs swap pole rigs for crawlers between a 500 seat auditorium and a black box studio.

Pair robot logs with your rigging logbook entries NFHS guidance expects: inspections, repairs, training records, and flame retardancy paperwork for curtains.

Where does Service Robot Co. fit fly system programs?

Service Robot Co. selects inspection platforms across manufacturers, maps safe routes with your technical director and qualified rigger, and trains staff on lockout, tethering, and file naming. We finance buy or rent paths and support fleets with remote triage plus on site dispatch through a nationwide network of regional service engineers.

A free site assessment should confirm grid geometry, lift access points, and who signs reports before the first loft pass. Phased deployment can start on one arbor line while rehearsals continue on the deck below.
