How does the line handle so many variants?

Manufacturing execution system orders tell the cell which product family and variant to build next. Software changeovers replace hard tooling swaps for many of the up to forty variants per family.

What quality controls stayed in place?

Published accounts emphasize that throughput gains did not come at the expense of industry quality standards. Electrical and mechanical test stations remain in the automated sequence before release to shipping conveyors.

Is this a Service Robot Co. project?

No. It summarizes a documented low-voltage switch assembly example for readers on our site. SRCo selects, finances, deploys, and services commercial robots for US businesses as one vendor neutral partner.

Can a US plant start with one product family?

The European project structured around two families on one line, but the same MES-driven pattern suits a pilot on a single family before adding variants. Phased rollout limits downtime while you prove cycle time and test coverage.

a low-voltage power-switch manufacturing operation in Europe

How a European Switch Plant Raised Assembly Throughput Fivefold

Q: Did automation replace every manual step?

The line automates assembly, testing, labeling, and handling while operators still oversee orders, exceptions, and material loading. Semi-autonomous buffers cover up to two hours of run time from staged components.

A low-voltage power-switch factory in Europe deployed a custom robotic assembly line and reported a 400 percent productivity gain with two product families and 40 variants.

400%
Productivity gain: 5x
Throughput rise: 40
Max variants: <30 s
Cycle time

Based on a documented real-world deployment. Figures are from public reporting; the organization is not named.

Low-voltage electrical switch components prepared for precision assembly in a manufacturing plant. — Photo: ranjeet .

Volume growth across many variants

A low-voltage power-switch manufacturing operation in Europe produces equipment for solar, auxiliary power, IT, and industrial installs where precision assembly and test steps cannot slip as volumes climb.

Rising demand collided with numerous product variants and strict quality expectations. Manual and semi-manual stations could not scale fast enough without pushing cost up or sacrificing traceability through assembly and inspection.

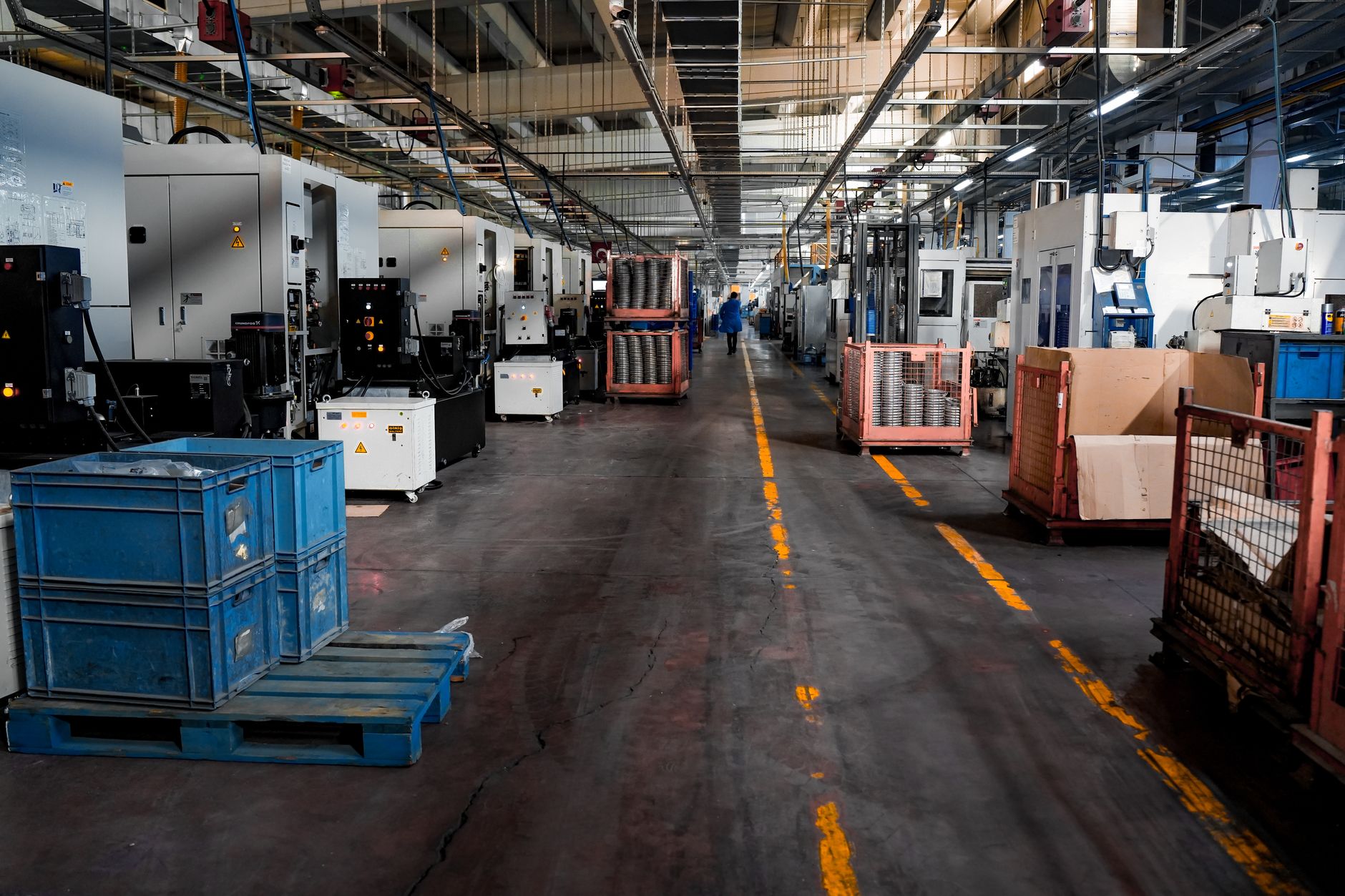

A production hall where high-mix electrical builds must scale without losing test discipline. — Photo: Yetkin Ağaç

Custom robotic line tied to MES

Automated inspection and labeling stations along a continuous assembly path. — Photo: Ruslan Alekso

An integration partner built a custom automated assembly line using six-axis and SCARA arms, each assigned to pick and place, screwdriving, labeling, mechanical assembly, and electrical test stations. Manufacturing execution system orders drive which variant runs next, so the line swaps products dynamically instead of rebuilding tooling for every change.

Machine vision guides component pickup while incoming material stations buffer up to two hours of semi-autonomous production. Stations feed tested units to outgoing conveyors with labeling for traceability through the full build.

Link production orders to the plant MES for variant selection
Run two product families with up to forty variants on one line
Combine vision picking with sub-thirty-second target cycle times
Automate assembly, test, and labeling in sequence

Documented throughput outcomes

Published results report productivity on the line rising by 400 percent, described as a fivefold increase in throughput while quality standards stayed intact.

The automated system handles two distinct product families with up to forty variants each, supports semi-autonomous runs from buffered material, and holds cycle times under thirty seconds through vision-guided handling.

Tested electrical products moving toward outbound shipping after automated handling. — Photo: Yetkin Ağaç

What electrical plants can borrow

High-mix switch and breaker assembly is where cobot rental for manufacturing and end of line automation pay off when every variant still needs full test traceability.

Service Robot Co. did not deploy this European line. We are a vendor neutral integrator for US plants that need machine tending robot cells, inspection robot rental adjacent to assembly, phased deployment with no shutdown, and nationwide service on one contract. Robot leasing for business and commercial robot demo pilots can mirror one family before you scale variants.
