When Robotic Cart Moves Pay Off in Industrial Laundries

Do robotic cart moves usually pencil out?

Yes, robotic cart moves can pay off in industrial laundries, but only when you model the whole linen loop instead of pricing one robot against one person. The strongest cases are plants where operators spend paid time walking carts between soil sort, washer banks, finishing, and dispatch, where carts sit waiting for a human handoff, and where night or weekend coverage is thin.

The industry is large enough for those minutes to matter. According to the U.S. Census Bureau, industrial launderers in the United States reported 1,426 establishments, 317 firms, 12.046 billion dollars in revenue, and 2.900 billion dollars in annual payroll in 2022. TRSA said the broader linen, uniform, and facility services industry generated 27.7 billion dollars of economic output in 2024 and supports 304,000 jobs nationwide.

Labor is the first line item to test. The U.S. Bureau of Labor Statistics counted 198,040 laundry and dry-cleaning workers in May 2025, with a mean wage of 16.79 dollars an hour. That does not mean every cart move should be automated. It means walking, waiting, and pushing are expensive enough that a workflow-level AMR case deserves disciplined math.

Where the return actually comes from

Most plants miss the return because they look for direct labor replacement only. In a laundry, a cart pulling robot or autonomous mobile robot rental program earns its keep by recovering paid motion that does not wash, dry, fold, finish, or load a truck.

The gains normally appear in several places at once. Fewer operator minutes go into long walks. Carts return to service faster. Aisles clog less at transfer points. Coverage stays steadier on second shift, third shift, weekends, and breaks, when internal cart service often goes soft.

• Walking time removed from soil sort to wash, wash to finishing, and finishing to dispatch loops.
• Cart availability gained because soiled and clean carts return faster.
• Route smoothing from repetitive transport automation, especially at break changes and truck cutoffs.
• Coverage stability when one AMR keeps moving during meals, shift changes, and light staffing windows.

How should you model walking time and paid motion?

Start with the route, not the robot. Measure every origin and destination pair, average travel distance, queue delay at the handoff, and the return leg. Then count trips by hour and by shift. Many plants already track pieces or pounds by department. Add a week of trip counts and you have the missing denominator.

Build the labor model in minutes. Annual labor hours recovered equals trips per shift times minutes saved per trip times shifts per year, divided by 60. For labor cost, do not stop at base wage. BLS reported a 16.79 dollar mean hourly wage for laundry and dry-cleaning workers in May 2025, and BLS also reported that wages and salaries were 70.2 percent of total private industry compensation in June 2025. That means wage-only math understates what paid walking time really costs.

Keep the time study honest. Include empty returns, congestion detours, battery charging, door opens, and the minutes a human still spends staging or hitching a cart. Exclude wishful savings that depend on headcount cuts you will not actually make. A finance team will trust recovered labor hours, overtime avoided, and higher pounds per labor hour long before it trusts a promise to remove whole jobs.

• Minutes saved per trip, loaded and empty.
• Trips per department pair, by shift.
• Loaded labor rate, using site pay and benefit burden.
• Realized capture rate, because no plant converts 100 percent of saved minutes into cash.

Cart flow matters as much as headcount

Cart availability is often the hidden prize. If clean carts return late to soil sort, or finished carts stack up before dispatch, the plant buys buffer inventory in the worst possible form, more carts, more floor space, and more waiting. Faster cart circulation can postpone cart purchases and reduce the square footage swallowed by parked work in process.

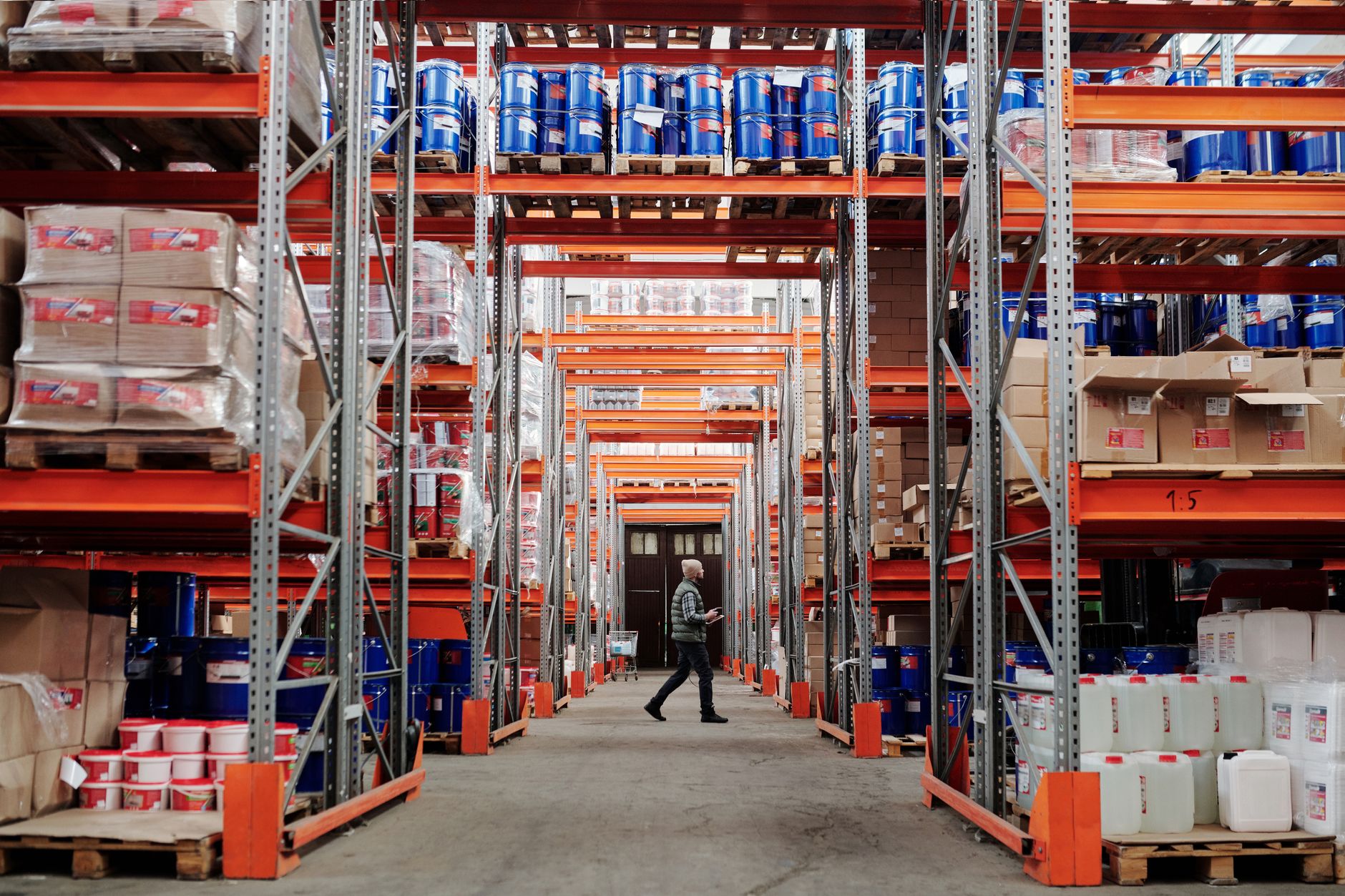

Congestion belongs in the model as its own line, not as a footnote. Aisles that pinch at washer unload, shuttle elevators, or tunnel exits create stop and go traffic that spreads upstream. A robot fleet that simply joins the jam adds cost without fixing flow. The right question is which lanes need scheduled moves, passing rules, one-way traffic, or dispatch logic before the first unit arrives.

This is why some of the best AMR cases in laundry are narrow at first. One repeated corridor, one cart type, one shift pattern, and one service promise to production. Once the plant can see turns per cart per day, handoff delays, and missed internal pickups, expansion becomes a flow decision, not a gadget decision.

What do safety and injury data add to the case?

The injury argument is not fluff. BLS reported 2024 total recordable case rates of 4.2 per 100 full-time workers for linen supply and 2.9 for industrial launderers. Days away, restricted, or transferred case rates were 3.2 and 1.5, respectively. Those are meaningful rates for work that includes pushing, pulling, reaching, and handling heavy wet goods.

BLS also reported that overexertion, repetitive motion, and bodily conditions produced 946,290 DART cases across private industry in 2023 and 2024 combined, with a median of 24 days for DART cases and 14 days for cases with days away from work. OSHA's laundry ergonomics guidance is explicit that excessive reaching and pushing during laundry transport, and lifting wet heavy laundry, can cause strains and sprains to the back and shoulder area.

You should still treat safety ROI carefully. Do not claim a specific reduction unless your own claims history supports it. Instead, present it as risk compression. Fewer hard pushes, fewer long cart hauls, and fewer rushed cross-traffic moves reduce exposure in a process where manual material handling is built into the day.

Which costs belong in the model?

A serious model includes more than the robot payment. It needs mapping, route commissioning, software setup, charging hardware, network work if the plant needs it, staff training, and the integration points that make the robot part of production instead of an orphan in the aisle.

Service belongs in the first spreadsheet, not the last. In a laundry, uptime matters at shift edges and dispatch cutoffs, not just in the middle of a calm day. That is why buyers often prefer robot as a service, monthly payment programs, or robot leasing for business with maintenance included, spare unit coverage, and a defined response promise.

Power cost is usually not the blocker people fear. According to the U.S. Energy Information Administration, the average U.S. industrial electricity price in 2025 was 8.62 cents per kilowatt-hour. In most plants, charging cost is small next to labor, downtime, and missed cart circulation. The expensive mistake is not electricity. It is underbuying service, training, or integration.

• Fleet subscription, lease rental or sale structure, or capital purchase.
• Integration to doors, elevators, call buttons, traffic rules, and production handoffs where needed.
• Service plan, remote support, on-site response, parts, and loaner units.
• Site changes such as staging zones, hitching method, signage, and charging placement.

How big should the first lane be?

Start where the traffic is boring. The best first lane has high repetition, predictable cart geometry, clear right of way, and pain on multiple shifts. Soil sort to wash, washer unload to finishing, or finishing to dispatch prep are common fits because the task repeats even when product mix changes.

Avoid the lane that looks impressive but behaves badly. If the route depends on constant human judgment, mixed cart dimensions, or floors that flood without notice, you are testing edge cases before you have baseline data. Prove one repeatable loop first.

A good pilot should be large enough to expose workflow truth, but small enough that you can fix staging, congestion, or training without touching the whole plant. In practice, that often looks more like a tug robot rental or cart pulling robot trial than a full fleet launch.

• At least one corridor with repeat trips every hour.
• One cart style or a small family of cart styles.
• Known pain on second shift, third shift, or weekend coverage.
• Clear success measures, labor minutes recovered, cart turns, handoff delay, and missed internal pickups.

Why the integrator model changes ROI

This is where the integrator matters. A laundry buyer does not need one box and three extra vendors. It needs a full-service commercial robot integrator that can choose the right machine across manufacturers, finance it, deploy it, integrate it with the plant's real traffic and control points, train the team, and keep it running after go live.

Service Robot Co. takes that OEM neutral role. For U.S. operators that means one vendor for the whole lifecycle, from site assessment and robot deployment and integration through operator training, service, and expansion. Some plants want no upfront capital and start with autonomous mobile robot rental, AMR rental, or material handling robot rental terms. Others want lease rental or sale. The commercial case changes by plant, but the point stays the same, one partner and one number.

That service layer is not cosmetic. Service Robot Co. states 10-minute remote triage during business hours, 24-hour nationwide on-site dispatch, 24-7 emergency response, and regional service engineers in all 50 states. In a plant that runs long hours, phased deployment with no shutdown and a real path to emergency robot replacement can protect the ROI far better than a cheaper quote with thin support.

The right metric is flow recovered

A finance-ready AMR case for laundry should fit on one page. Route counts. Minutes saved. Loaded labor rate. Cart turns. Congestion effects. Shift coverage. Integration and service cost. If the model cannot show how the robot changes the movement of linen through the building, it is not ready.

The plants that win with repetitive transport automation do not start by asking how many people a robot replaces. They start by asking how much paid motion, waiting, and cart idling the workflow can stop carrying. In industrial laundries, that is where the return usually lives.
