Cobot vs. Gantry for Injection Molding Machine Tending

Which architecture fits injection molding takeout first?

Injection molding machine tending comes down to two architectures most shops actually buy: a collaborative robot on a mobile or fixed pedestal, or a Cartesian gantry spanning the press. Both load inserts, pull finished parts, and hand off to conveyors, bins, or inspection stations. They differ in how they handle changeovers, how much floor they eat, and how painful guarding becomes when an operator still opens the gate every hour.

Pick the gantry when the mold, the insert nest, and the unload pose stay stable for long production runs. Pick the cobot when your scheduling board looks like a weather map and you retool inserts between shifts. Neither choice is morally better. Each is a bet on how much variety your plant will throw at automation over the next three years.

U.S. plastics product manufacturing employed about 582,400 workers in 2025, according to Bureau of Labor Statistics figures tracked by the Federal Reserve Bank of St. Louis. That sector keeps shrinking in headcount even when output holds. Machine tending automation is less about novelty and more about keeping spindles turning when experienced mold techs are hard to hire.

How do cycle time and dry cycle overlap compare?

Gantries move in straight lines with stiff drives. Once programmed, they can enter the mold during guarded portions of the cycle with little variance. That repeatability is why high-volume automotive and medical cells still favor overhead or side-entry Cartesian systems when the press never changes.

Collaborative arms trade peak speed for flexibility. A well-tuned cobot cell may lose a second or two per shot against a hardened gantry path, yet regain it across a week of mixed molds because teach and touch-up take minutes, not days of offline programming. If your bottleneck is cooling time, not robot traverse, the architecture matters less than whether the robot clears the part before the next close signal.

Always model the full press cycle, not just pick and place. Include sprue handling, regrind drops, and whether the robot must wait on a chilled part fixture. A gantry that wins on paper can lose live shifts when an operator adds a manual clip station the layout never planned for.

What happens when SKU mix and insert kits change often?

High-mix custom molding is where cobots earn their keep. Swap the gripper fingers, load a new teach frame, and run five validation shots. Gantries can change too, but every new insert nest often means mechanical hard stops, revised interlocks, and a programmer slot that may not arrive until next week.

Document insert weight, pick approach, and part release angle for each job. Cobot cells store those recipes in the controller or cell PC. Gantries store them in fixture plates bolted to the floor. Ask which asset your team will actually maintain at 2 a.m. when a rush medical order lands.

Downstream tasks multiply the comparison. If the robot only drops parts into a bin, either architecture works. If it must orient parts for pad printing, bagging, or a weigh scale, cobots adapt with an extra station or a second arm. Gantries need new rails or auxiliary axes, which pushes cost and commissioning time.

• Fewer than three active molds per month: gantry merit rises if volumes are high.
• Weekly mold changes: cobot merit rises even if individual runs are short.
• Insert families that share pick faces: either path can standardize tooling.
• Parts that need degating at the press: plan end-of-arm tools for both architectures.

How much floor space and height does each option need?

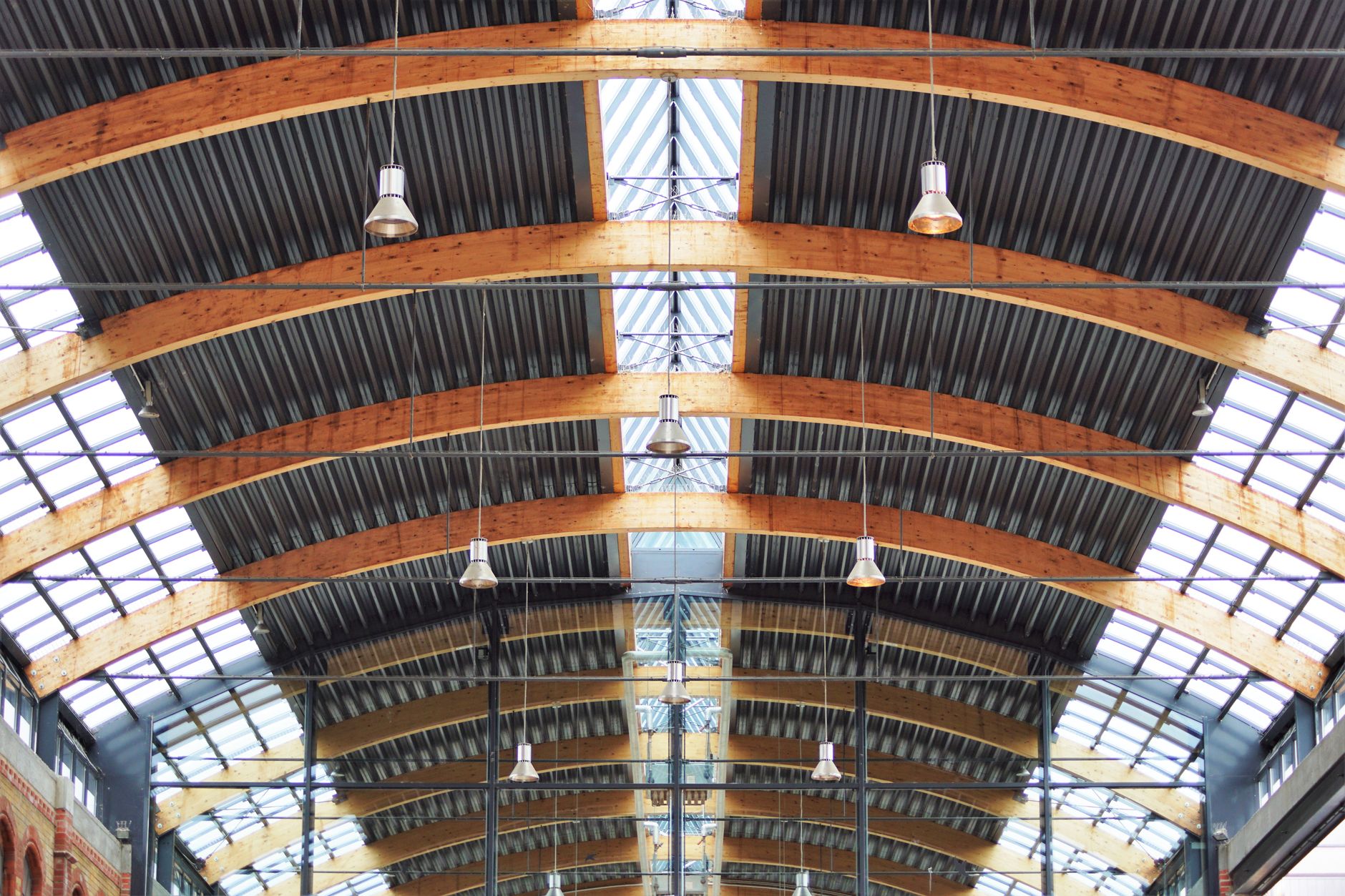

Gantries want a rectangular footprint clear of forklift aisles, plus overhead room for the beam and cable chains. Low-ceiling bays common in older molding shops can kill a gantry bid before quotes return. Cobots fit beside the press with a pedestal or rolling base, though you still need safety clearance when the mold opens wide.

Measure the swing envelope with the mold fully open and the ejector forward. Add the operator walkway you refuse to give up. A cobot on a linear track can cover two presses, mimicking some gantry reach without a full bridge install.

Future presses matter. Gantries bolted to one machine center are expensive to redeploy. Cobot cells on casters or standard bases move with the press sale or the new cell layout, which matters for contract molders who re-slot floors every year.

How do guarding and safety validation differ?

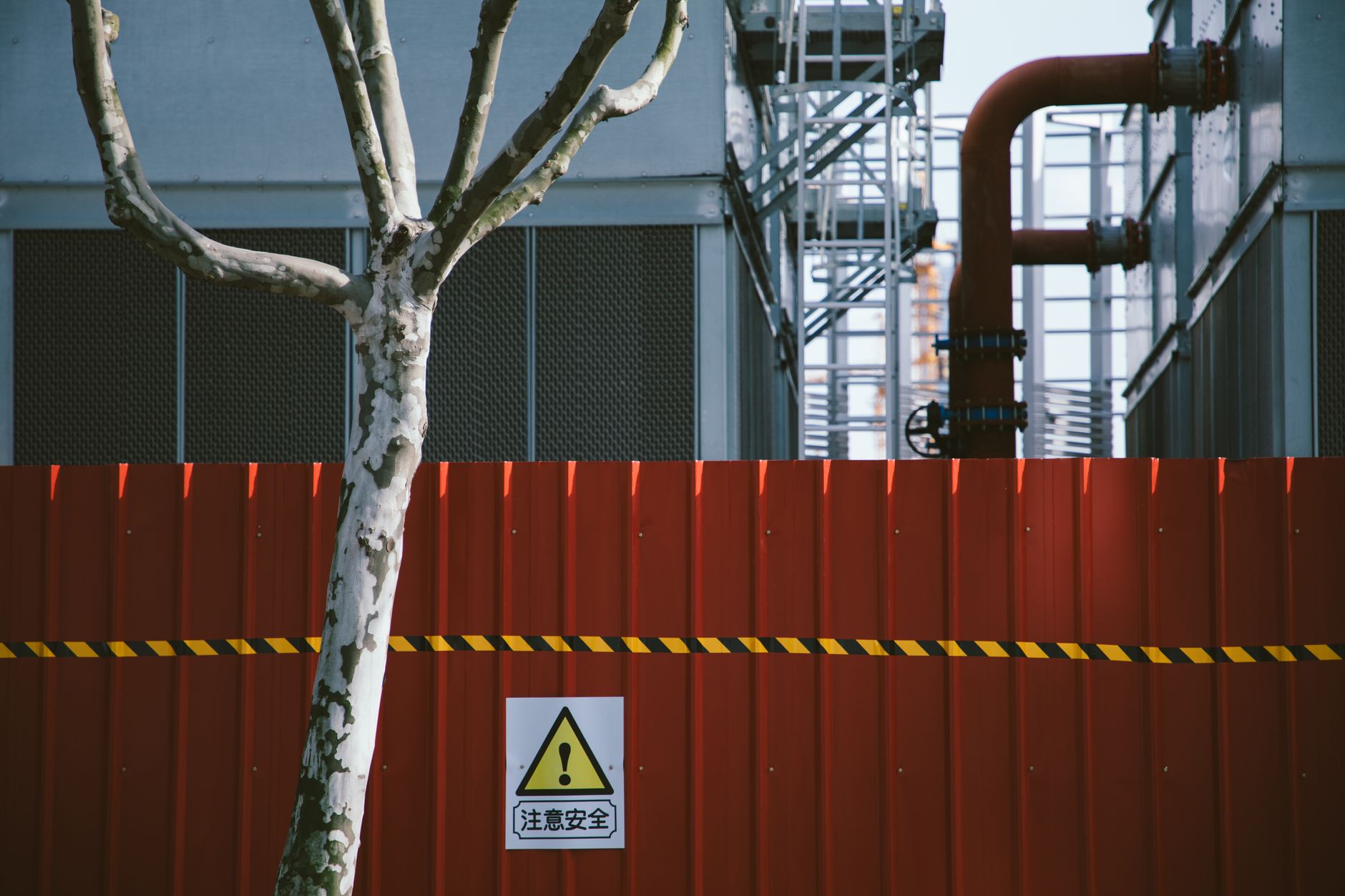

Gantries usually live inside hard guarding with light curtains or door interlocks tied to the press. The safety case is familiar to OEM auditors because the envelope is fixed. Changes to the mold height can violate the light curtain map until someone reprograms heights.

Collaborative robots rely on speed and separation monitoring, area scanners, or reduced modes when people enter the cell. That fits low-volume cells where operators still hand-start inserts. OSHA continues to treat ergonomic risk factors in manufacturing seriously, with median days away from work for manufacturing MSD cases at 27.6 in federal injury data cited in OSHA ergonomic guidance. Machine tending that removes repeated reaches into hot molds is often part of the safety story, not just the throughput story.

Never confuse collaborative rated with hands inside the mold while it cycles. Both architectures need a written risk assessment, documented stop categories, and press interlocks that match your insurer checklist.

What about maintenance and uptime?

Gantries spread wear across linear bearings, belts, and drive cards that may be custom to the integrator. Spares sit on a shelf you pay rent on. When a axis faults, the whole press line waits unless you keep a backup motor drive.

Cobots consolidate motion in the arm with field-replaceable joints and standardized controllers. Maintenance included service plans from a nationwide integrator matter because molding floors are harsh: oil mist, regrind dust, and hose leaks find every seal.

Predictive checks should cover gripper air, vacuum cups, and ejector sync sensors weekly. Gantries add rail alignment and cable carrier inspection. Cobots add collision log review after any mold crash. Both architectures fail on neglected end-of-arm tooling, not on the motion platform alone.

Can you redeploy or finance one path more easily?

Contract molders should score redeployment before capex committees meet. Cobot rental monthly programs and robot leasing for business contracts let you park a machine tending cell on one press for a six-month program, then roll it to an overflow bay. Gantries rarely move without a rigging crew and new anchor bolts.

Service Robot Co. treats the choice as a lifecycle decision: site survey, simulation if needed, press interface wiring, operator training, and 24 hour dispatch when a vacuum cup melts on a Friday night. OEM-neutral selection keeps the integrator honest when a gantry vendor insists their beam is the only answer for a 90-ton press with six mold changes a week.

Used commercial robots for sale and refurbished arms can lower cobot entry cost, but only when the integrator revalidates reach studies for your mold heights. A cheap arm that cannot clear your tie-bar spacing is still inventory.

What decision framework should processors use?

Start with mold change frequency and required downstream tasks. Score cycle time second. Add floor and ceiling constraints third. Finish with guarding complexity and who will own maintenance.

Run a paid pilot on the cobot side when scores are close. Gantries seldom pilot well without engineering drawings and a concrete pour schedule. If the pilot hits takt for four weeks across at least two molds, expand. If not, fix tooling before you blame the architecture.

Write requirements without naming a brand, then let a vendor-neutral integrator propose both layouts with the same acceptance tests: parts per hour, scrap from drops, mean time to recover after a mold crash, and minutes to change over inserts.
