Cobots for Laser Marking Surgical Instruments

How does a cobot create traceable surgical instruments?

A cobot can load each surgical instrument, present the correct surface to a laser, trigger the approved marking recipe, and move the finished part to machine-vision verification. The cell then records the decoded identifier and inspection result before releasing the instrument or diverting it to quarantine.

That sequence removes several fragile manual handoffs. Orientation becomes repeatable, the selected marking file can be tied to the scanned work order, and every instrument receives an electronic record connecting its physical mark to the production batch and serial number.

The FDA says a device required to bear a UDI on its label must generally carry a permanent UDI on the device itself when it is intended for repeated use on different patients and for high-level disinfection or sterilization between uses. For reusable surgical instruments, the cobot is therefore supporting a traceability control, not merely adding a logo.

What happens inside the marking cell?

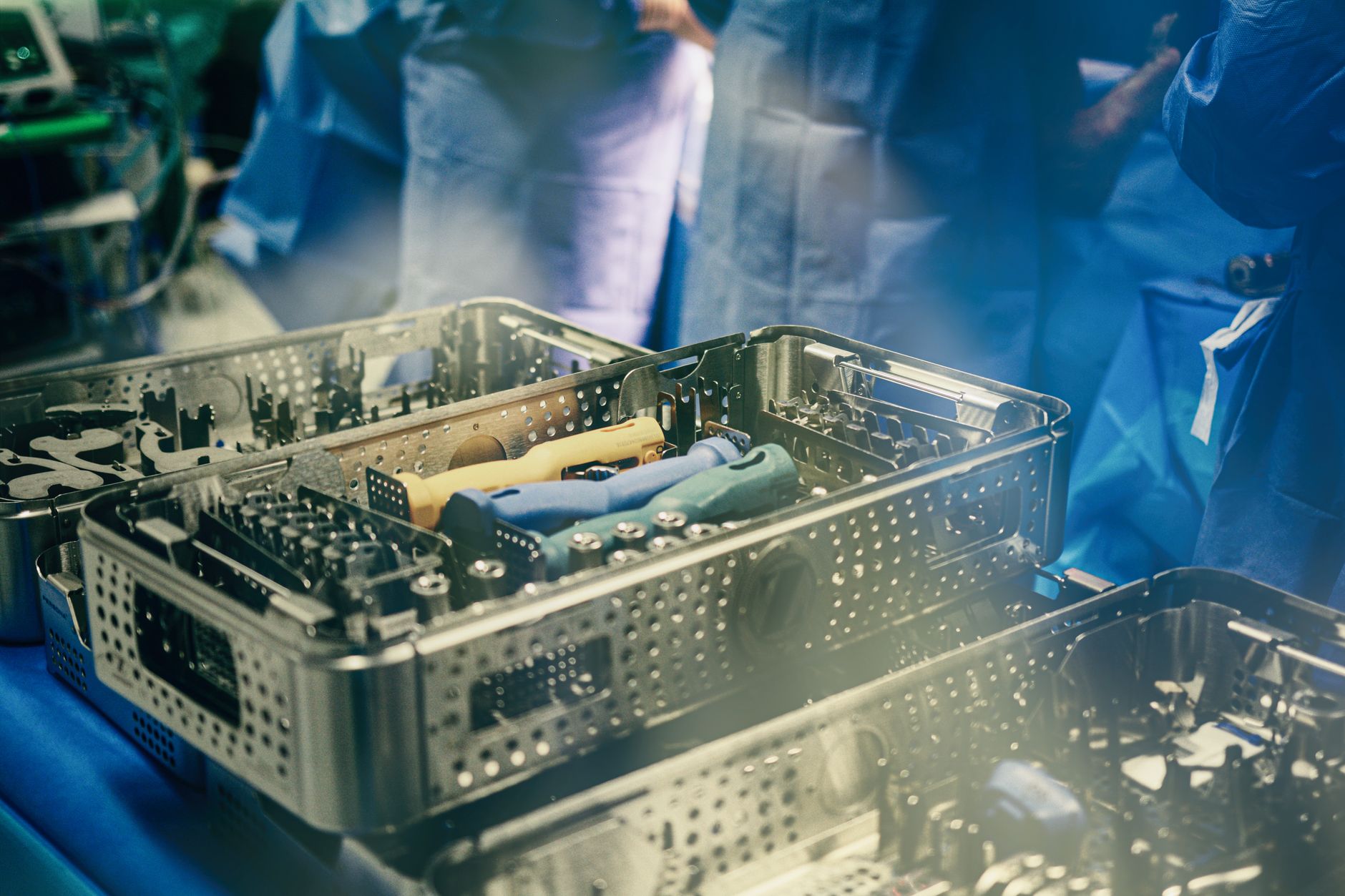

The process begins with controlled presentation. Instruments may arrive in machined nests, compartmented trays, or an indexed feeder. The cobot grips a validated noncritical surface and uses fixture datums or vision to establish the marking face, rotational position, and focal distance.

Next, the controller confirms that the physical instrument, production order, and approved laser recipe agree. Only then does the arm place the part inside the interlocked marking chamber. A fixed nest often gives the laser the final positional accuracy while the cobot handles movement between stations.

After marking, a direct-part-mark reader decodes the symbol. A verifier can also grade it against the chosen acceptance specification. The cell compares the decoded data with the expected record, checks for duplicates, and routes failed parts to a locked reject location rather than allowing an unreadable or incorrectly serialized instrument downstream.

• Load the instrument from a known tray position or identify it with vision.
• Orient the approved marking zone to the fixture and confirm focus height.
• Match the instrument identity to a revision-controlled laser recipe.
• Mark the UDI and any permitted human-readable text.
• Decode, grade, and compare the result with the expected payload.
• Record the result and segregate mismatches or unreadable marks.

How does UDI affect the mark and its data?

Under 21 CFR 801.45, a direct UDI may use easily readable plain text, automatic identification and data capture technology, or both. FDA guidance also explains that the directly marked UDI generally includes the device identifier and applicable production identifiers, although specific requirements and exceptions depend on the device and its labeling circumstances.

The labeler remains responsible for determining the applicable UDI format, assigning identifiers through an FDA-accredited issuing agency, and maintaining the corresponding device data. Automation should consume those controlled records. It should never invent identifiers or allow an operator to type an unverified serial number at the laser workstation.

GS1 guidance recommends a DataMatrix containing a trade-item identifier and serial number as an appropriate approach for reusable instruments. Its small-instrument guidance identifies a 0.200 mm target module width for non-ink laser marks, with a stated range of 0.100 to 0.300 mm and a quiet zone one module wide on all four sides. Those dimensions are useful starting points, not substitutes for application testing.

Why are polished and curved surfaces difficult?

Polished stainless steel can send intense specular reflections toward the camera while a dark laser mark reflects diffusely. Small changes in illumination angle may therefore make the same code appear crisp, washed out, or partly missing. Curvature adds focus variation and geometric distortion.

ISO/IEC 29158:2025 addresses this direct-part-mark environment. It defines image acquisition and quality assessment for marks whose altered and unaltered surfaces reflect light differently, including conditions involving mirror-like reflection. Verification should use the specified lighting geometry and a calibrated verifier, not a successful decode from one convenient handheld reader.

The qualified recipe must cover the actual alloy, finish, curvature, and prior surface treatment. Relevant settings include focal offset, pulse behavior, power, scan speed, hatch spacing, and mark orientation. The study should also examine heat tint, corrosion behavior, cleanability, surface roughness, and functional damage. A readable symbol is unacceptable if producing it impairs the instrument.

What must be validated before production release?

Validation should treat the cell as a controlled manufacturing process and a data system. FDA's Quality Management System Regulation became effective on February 2, 2026, incorporating ISO 13485:2016 by reference. The validation package should fit the manufacturer's risk management, document-control, production, and record-retention practices under that quality system.

Installation, operating-range, and production-performance studies should challenge more than the nominal sample. Include permitted materials and finishes, marking-zone tolerances, fixture wear, focus variation, illumination drift, reader changes, recipe revisions, and representative operators. Durability testing should use the claimed reprocessing conditions and number of cycles, including the adverse combinations justified by the risk analysis.

Acceptance criteria should define the required payload, minimum symbol grade, mark location, human-readable content when used, material acceptance, and electronic record fields. Challenge duplicate serial numbers, lost network connections, unreadable source codes, removed trays, power interruption, failed verification, and rework. FDA's February 2026 computer software assurance guidance supports a risk-based approach to establishing confidence in production and quality-system automation.

• Prove that the decoded UDI exactly matches the authorized production record.
• Set a documented direct-part-mark grade threshold and verification method.
• Demonstrate permanence after the validated cleaning and sterilization exposure.
• Confirm that marking does not compromise corrosion resistance, geometry, or intended function.
• Verify alarms, reject segregation, audit trails, access controls, backups, and recovery behavior.

Does a collaborative arm eliminate guarding?

No. Collaborative robot features address hazards created by robot motion under defined conditions. They do not neutralize laser radiation, hot particles, fumes, sharp instrument tips, pinch points, or the gripper itself. The risk assessment must evaluate the complete application.

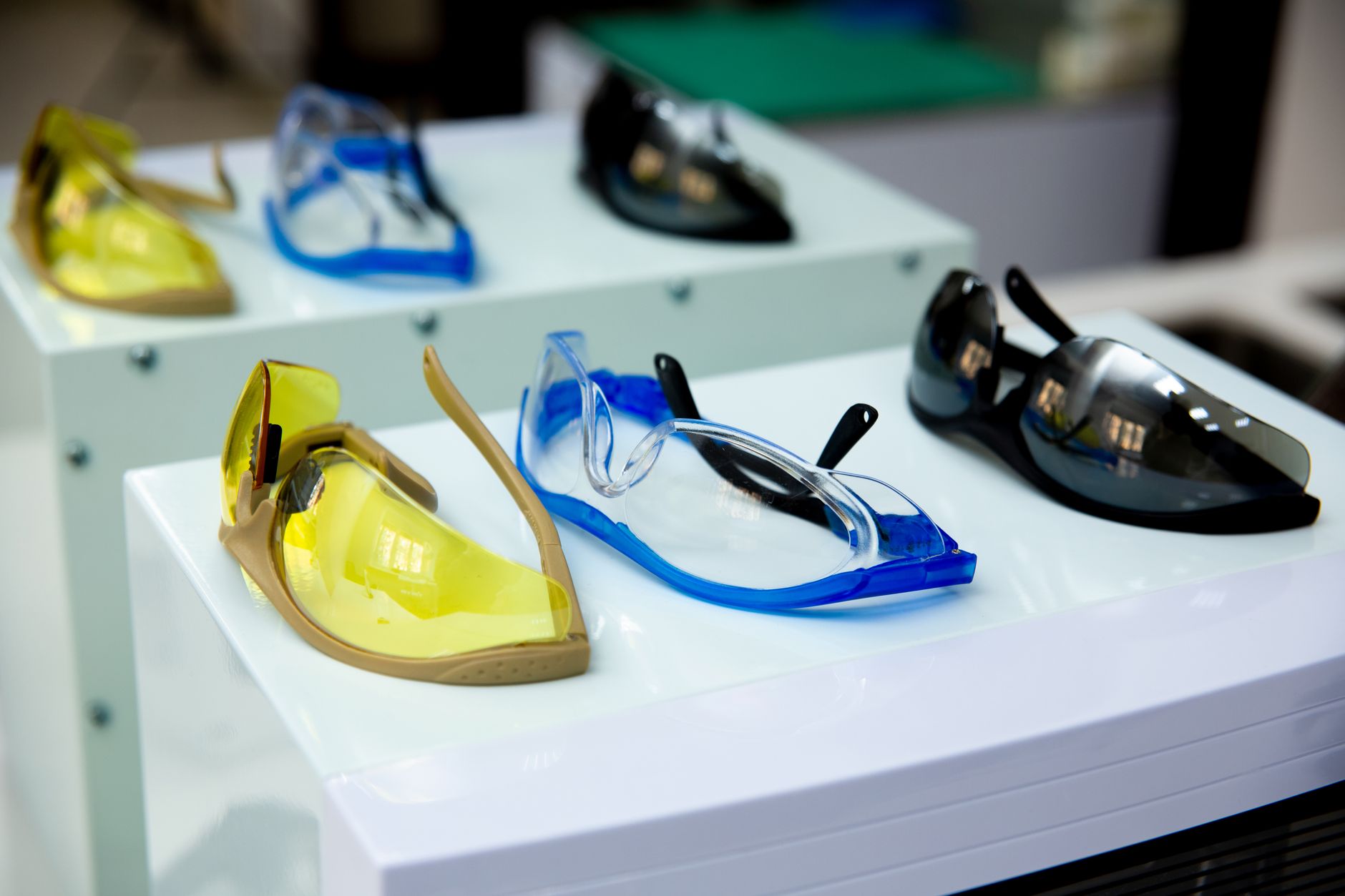

OSHA identifies Class 4 industrial lasers as immediate eye and skin hazards from direct or reflected beams, with possible fire hazards. Reflective instruments make containment especially important. OSHA guidance favors enclosing the beam path and interaction area, using interlocks that prevent operation when the enclosure is open, and providing emergency shutoff systems.

A practical cell usually places the laser and marking nest inside a rated enclosure with an interlocked access door, controlled viewing window, beam stop, and suitable fume extraction. Opening the chamber should inhibit laser emission and command an appropriate robot stop. Setup and service modes need separate procedures, access control, training, and protective equipment selected from the documented hazard assessment.

How should mixed-product batches be controlled?

High-mix work is where a cobot cell earns its keep, but only if product identity drives the process. A scanned traveler, tray code, or upstream system record should call the permitted instrument family and marking recipe. Vision or fixture sensing then confirms that the loaded geometry belongs to that family.

Recipe locking prevents a correct code from being placed in the wrong location or with unsuitable laser parameters. Unknown parts, conflicting identities, and expired revisions should stop before marking. For visually similar instruments, keyed nests or dimensional checks provide stronger mistake-proofing than image classification alone.

The production record should reconcile parts received, marks attempted, passes, rejects, and rework. Changeover approval can require a cleared fixture, verified first article, and recipe checksum. This makes a mixed batch auditable without relying on handwritten counts or an operator's memory of the last product run.

Building the commercial case for automation

The strongest candidates combine repetitive handling with exacting traceability: many instrument variants, awkward manual orientation, frequent identifier changes, or costly marking errors. Cycle studies should separate robot handling time, laser dwell, verification time, and changeover. A multi-position nest may let the cobot unload one part while another station verifies the prior mark.

Service Robot Co. approaches the project as an OEM-neutral, full-service commercial robot integrator for US businesses. The team can assess the site, select the appropriate arm and peripherals across manufacturers, finance the equipment, perform robot deployment and integration, train operators, and service the cell through a nationwide US engineer network.

That one-vendor lifecycle can support a cobot rental, robot leasing for business, or a purchase program according to the plant's approval path. A robot pilot program should still use production-representative instruments and measurable acceptance criteria. Maintenance included, remote triage, and on-site dispatch also need defined response procedures because the marking cell may sit directly on the release path.
