Key takeaways
- Floor pedestals win when operators need close access and the cell may move within a year.
- Overhead mounts free floor space but tie maintenance to lifts, catwalks, and longer cable runs.
- Wall mounts suit tight footprints yet limit reach envelopes and future machine rearrangement.
- Multi-station tending favors layouts that share one arm without crossing human walkways.
- Match guarding to the mount: overhead paths often need wider vertical clearance checks.
Which layout should you pick first?
Floor-mounted or overhead cobot layout is not a style choice. It sets reach, how much floor you lose to fencing, how fast you can service the arm, and what it costs to move the cell later. Most machine tending and packaging cells start on a floor pedestal because the integrator can walk the envelope with a tape measure and a human-height fence.
Overhead mounts earn their keep when floor space is already committed to conveyors, pallets, or forklift aisles you cannot shrink. The arm drops into the work zone from above, which can clear operator paths along the front of a CNC line. The trade is access: someone needs a safe way to reach the joint pack when grease intervals hit.
Wall mounts sit between those poles. They hug a column or stud wall, which can preserve aisle width in a narrow shop. Reach and stiffness still follow the same physics, so the decision stays anchored in part size, stack height, and how often the cell must relocate.
How does reach change with mount height?
Every cobot has a rated reach sphere. A floor pedestal places the shoulder near waist height on the operator side, which feels natural for loading fixtures from a cart. An overhead mount raises the shoulder, which can help the tool point down into a deep machine cavity without the arm folding into itself.

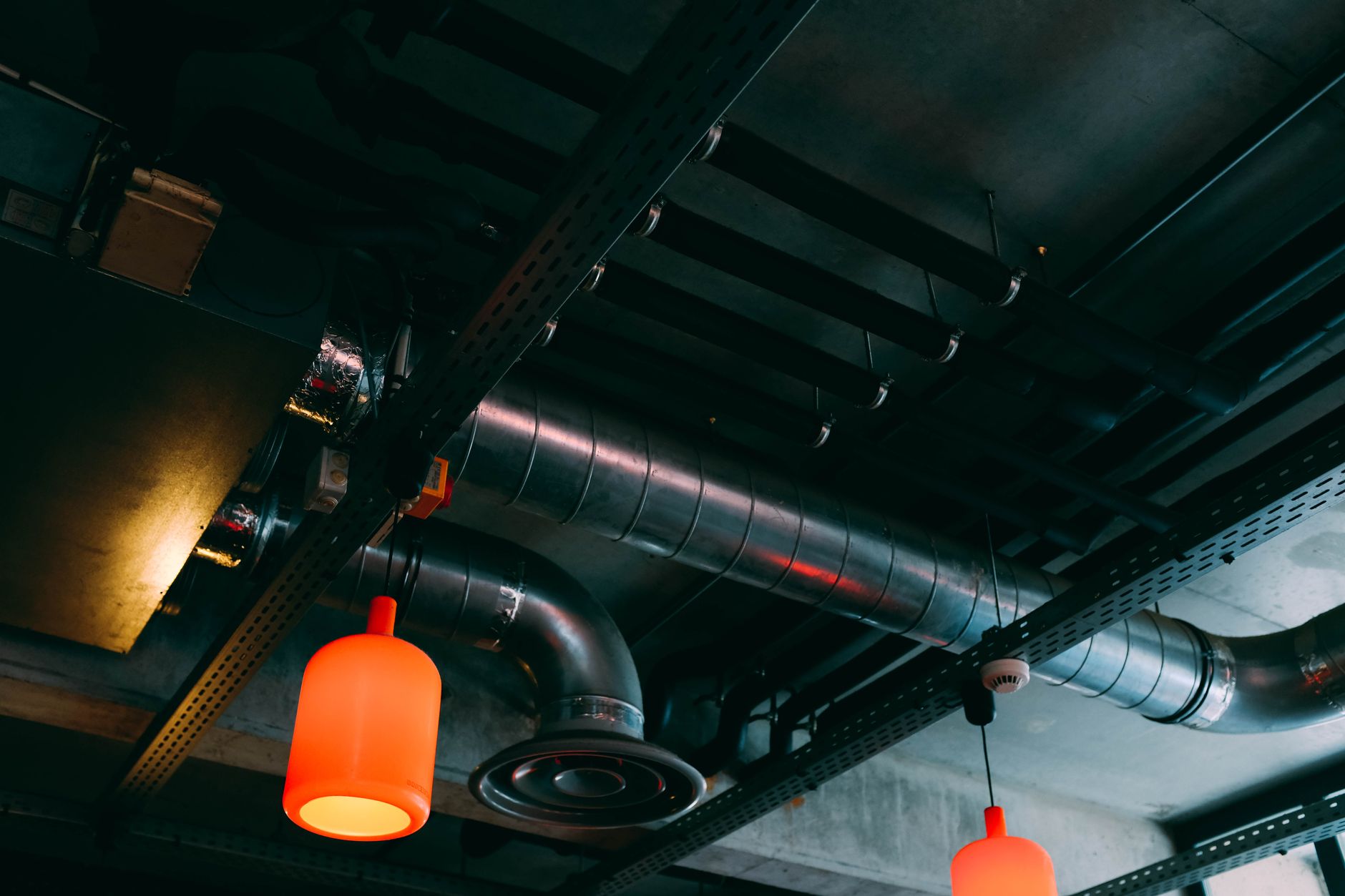

That extra height can also push the elbow into lighting grids or sprinkler lines you forgot to survey. Overhead layouts need a vertical stack drawing before purchase, not after the crane leaves. Floor mounts make those clashes obvious during a walkthrough because the arm sits where people already work.
Wall mounts rotate the reach envelope toward one side of the aisle. They work when the machine door opens toward a fixed wall and the part never crosses the open aisle. If you later spin the machine ninety degrees, the wall mount may not follow without a new bracket and a fresh risk assessment.
What happens to floor space and guarding?

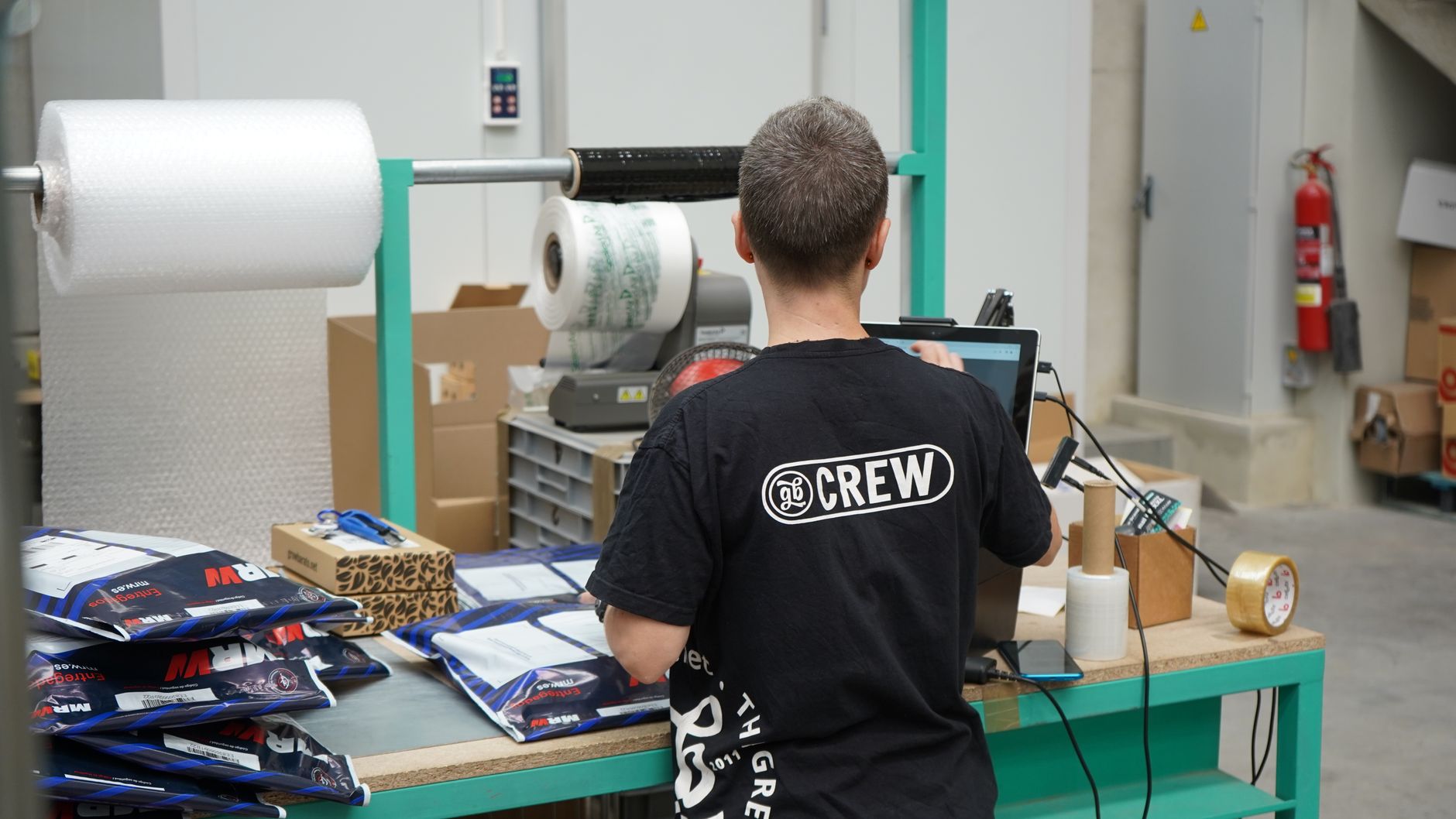

Floor pedestals consume a footprint for the base, cable tray, and safety scanner posts. Light curtains or area scanners still need clear lines of sight, so you cannot hide the pedestal behind stacked totes. The upside is a fence line that matches human intuition: stay outside the painted box on the floor.
Overhead mounts shrink the fenced floor area because the arm travels above the workpiece. Operators can stand closer to the machine door if the safety rated monitored stop zone is modeled correctly. You still need horizontal guarding where the arm could reach into a walkway at its lowest point.
Packaging lines with case erectors and taper stations often mix both ideas: a floor mount at the infeed and an overhead bridge across a conveyor gap. The layout choice follows choke points, not catalog photos.
Where does maintenance access hurt or help?
Cobots need joint inspections, cable dress checks, and occasional tool changes. A floor pedestal lets a tech kneel beside the base with a standard toolbox. An overhead unit may need a ladder, lift, or platform that your safety team must approve before anyone climbs during production hours.
Cable fatigue shows up first at the wrist on overhead installs because the harness hangs through gravity and vibration. Service plans should count those inspections as scheduled tasks, not reactive surprises. Remote triage can spot temperature spikes, but someone local still has to touch the hardware.
Service Robot Co. documents mount-specific PM steps during go live so month to month cobot rental pilots do not stall when the first grease interval lands. The same playbook travels with relocated cells because the mount type follows the arm in the asset record.
How painful is relocation for each mount?
Floor pedestals bolt to plates that can move with a pallet jack if you pre-drill fork pockets and keep cable lengths modest. Re-teach time dominates the move, not steel fabrication. That flexibility matters in job shops that win a six-month contract and then retask the arm.
Overhead rails and gantries tie to building steel. Moving them is a small construction project: rigging, structural review, and new anchor patterns. If your business model includes frequent line rebalancing, overhead hardware can become a sunk cost anchored to one bay.
Wall mounts leave scars on cladding and may need fire-stop patches when removed. Treat them as semi-permanent unless you standardize bracket patterns across the plant.
Which layout fits machine tending?

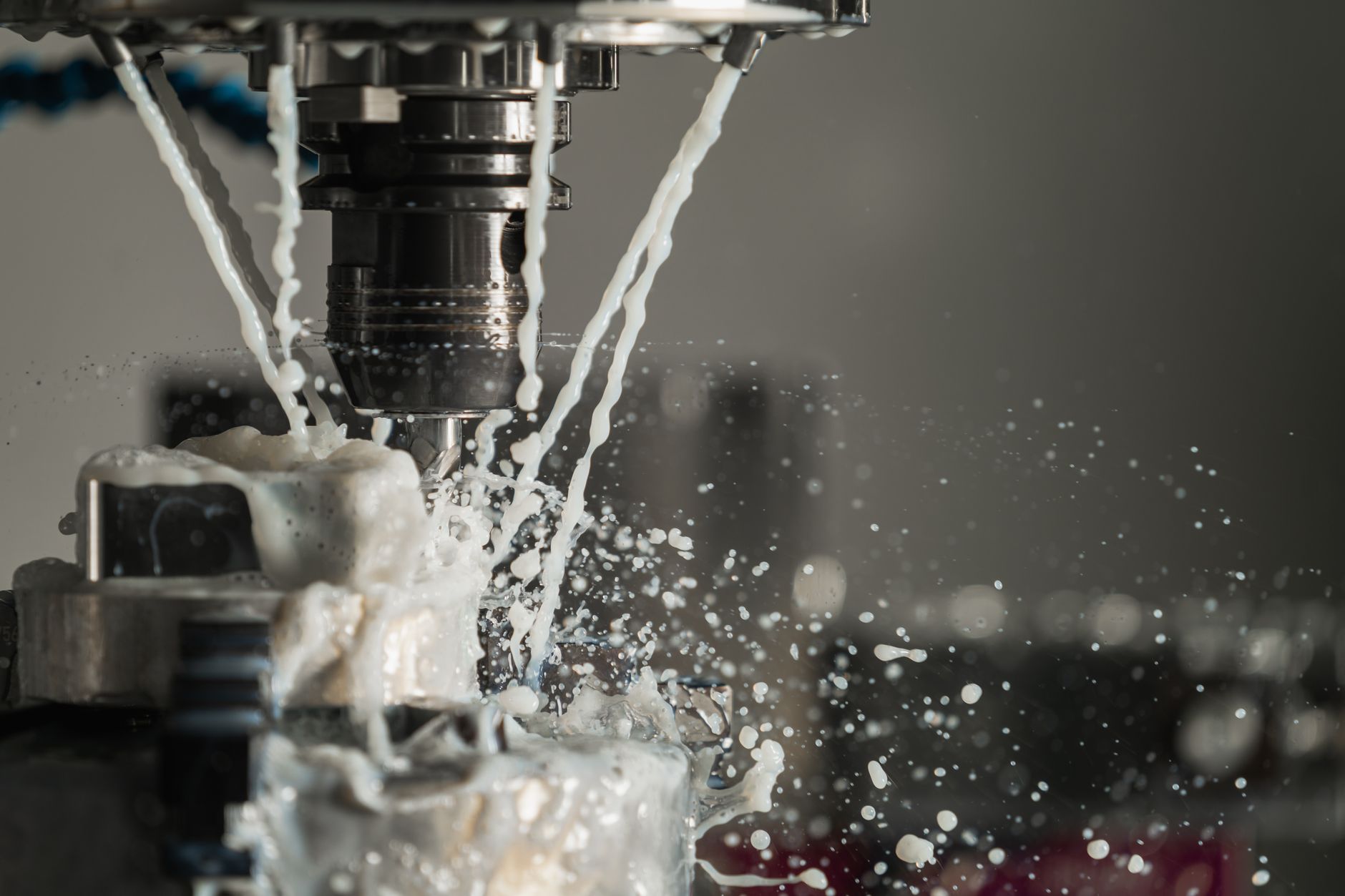

Machine tending favors layouts that align the tool with the spindle or chuck axis. Floor mounts beside a CNC door are the default because operators can hand load while the door is up and step back before the cycle starts. Overhead mounts help when the machine is already on a pit or when chip fall zones block a side pedestal.
Dual-spindle lathes with opposed doors sometimes use one floor arm on a slide base to serve both openings. That is still a floor solution, but it trades footprint for reach sharing. Overhead arms rarely slide laterally without a rail, which adds cost and calibration steps.
According to the International Federation of Robotics, global factory robot installations were about 542,000 units in 2024, with metal and machinery among the sectors gaining share. Shops adding cobots in those plants usually optimize tending first because cycle time is already measured in seconds.
What about packaging and end-of-line work?

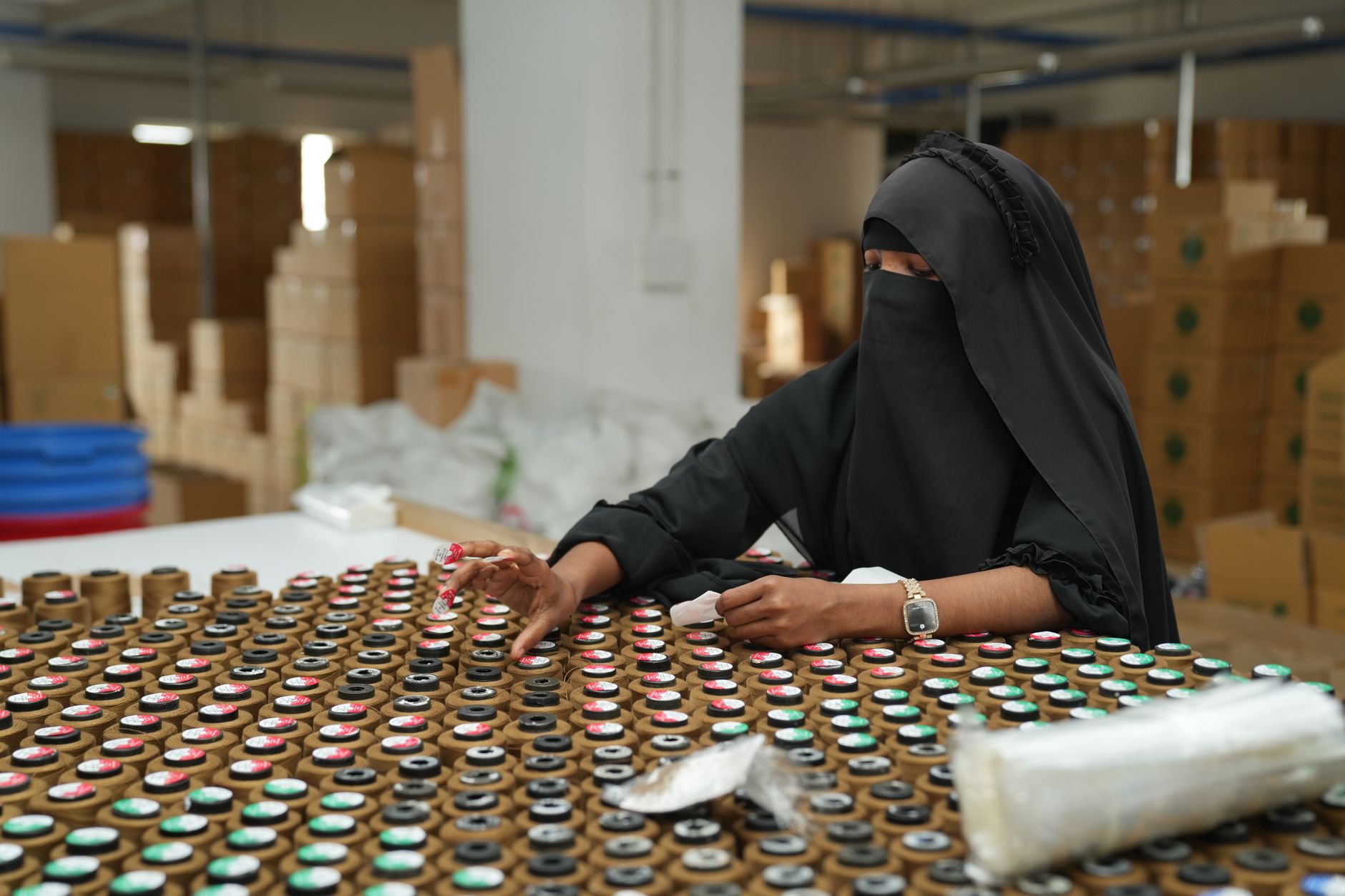

Packaging cells need height for erected cases and taper heads. Overhead mounts can clear tall stacks while humans walk along the outfeed. Floor mounts work when the cobot only lifts from a low conveyor to a pallet at knee height.
Multi-station packaging, label, weigh, and palletize sequences punish layouts that force the arm to cross an operator aisle every cycle. A floor mount on a linear slide can serve three stations with one controller if the slide vendor and safety file agree on limits.
End-of-line work also generates cardboard dust. Overhead cable runs need guards or troughs so debris does not settle on connectors. Floor mounts keep harnesses in trays operators already inspect during shift start.
How do you choose without overbuilding steel?
Sketch the worst-case part envelope and the tallest obstacle in the cell. If the overhead path clears sprinklers with margin, model an overhead concept. If not, stay on the floor and spend budget on a smaller fence or a slide base instead of building steel.
Run a time study on maintenance tasks you already perform on manual stations: how long to change grippers, clear jams, and wipe sensors. Pick the mount that keeps those tasks under your target minutes without a lift permit.
Pilot on a floor pedestal through cobot rental or a short lease window, then commit to overhead steel only after throughput data says the arm is the bottleneck. Layout should follow proof, not the reverse.
- Mark forklift and walk paths before you freeze pedestal locations.
- Confirm ceiling load ratings and sprinkler head zones on paper.
- List tool change steps and who performs them each shift.
- Capture teach points you will need again after any move.
