Path Planning vs. Obstacle Avoidance: A Robot's Two Minds

What Is the Difference Between Path Planning and Obstacle Avoidance?

In autonomous mobile robots (AMRs), path planning and obstacle avoidance are two distinct but deeply connected functions that govern how a machine navigates its environment. Think of them as the robot's strategic and tactical minds working in concert.

Path planning is the strategic component. It happens first. Given a map of a facility, the robot's software calculates the most efficient, permissible route from its current position to a destination point. This is the 'big picture' navigation, much like using a GPS app to map out a drive from one side of the city to the other before you even start the car.

Obstacle avoidance, by contrast, is the tactical, real-time component. It is the robot's ability to perceive and react to things that were not on the original map. This includes people walking by, a misplaced pallet, or a freshly mopped floor. It is the moment-to-moment adjustments a driver makes for other cars and pedestrians along the GPS-planned route.

How Does Global Path Planning Work?

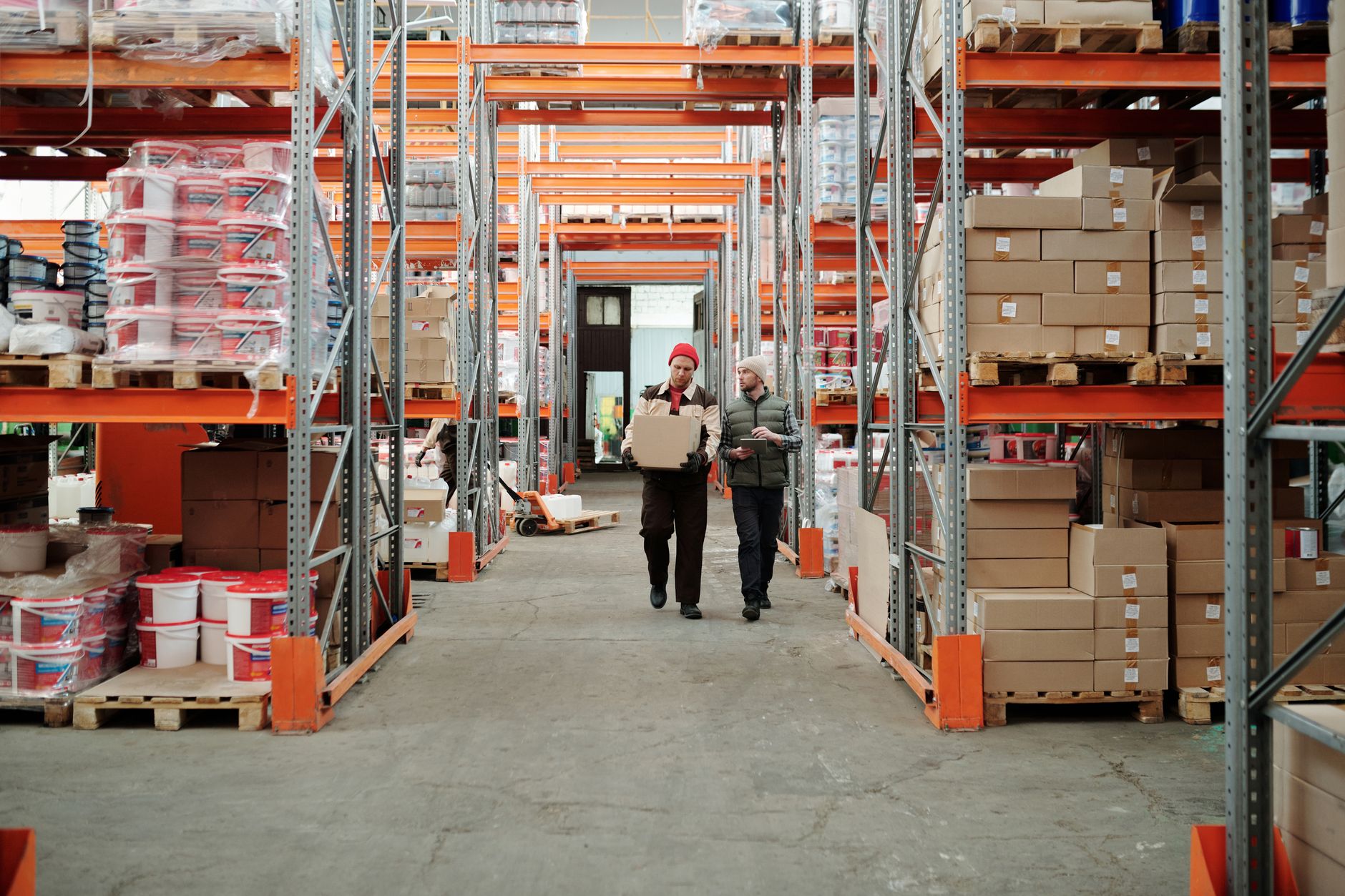

Global path planning relies on having a detailed map of the operating environment. This map is often created during the initial robot deployment and integration phase using a technology called Simultaneous Localization and Mapping (SLAM). During a mapping run, the robot is guided through the facility while its sensors, typically LiDAR, scan walls, racking, and permanent fixtures to build a precise digital floor plan.

Once this map exists, the robot uses it to calculate an optimal path. Algorithms like A* (A-star) or Dijkstra's analyze the map to find the shortest or most efficient route between two points, treating the environment like a massive grid or graph. The resulting path is a series of waypoints that the robot intends to follow.

This function is purely computational and assumes the world is static and matches the map it was given. It provides the essential blueprint for any task, from a restaurant delivery robot carrying trays to a table to an industrial floor scrubbing robot cleaning a large warehouse aisle overnight.

What Is Obstacle Avoidance?

Obstacle avoidance is the set of reactive behaviors a robot uses to safely deviate from its globally planned path when it encounters an unexpected object. While the global planner thinks about the entire facility, the obstacle avoidance system is only concerned with the immediate area around the robot.

This function relies entirely on live data from the robot's sensors. These can include:

The robot continuously processes this sensor data to detect anything that impedes its path. When an object is detected, a local planning algorithm, such as the Dynamic Window Approach (DWA), kicks in. DWA evaluates multiple short-term trajectories based on the robot's current velocity and calculates which small turn or speed adjustment is the safest and most efficient way to get around the object without straying too far from the original global path.

• LiDAR, which uses lasers to create a 360-degree view of distances to nearby objects.
• 3D cameras, which provide depth perception and can help identify what an object is.
• Ultrasonic or infrared sensors that detect objects at very close ranges, acting as a final safety check.

How Do Planning and Avoidance Work Together?

The two systems operate in a constant hierarchy. The global path planner sets the overall mission: "Travel down this main corridor and take the third left." The local obstacle avoidance system executes that mission while handling real-world dynamics: "Proceeding down the corridor. A person has just stepped into the path. Slowing down. Person has moved. Resuming course. A cart is blocking the left side. Deviating slightly to the right to pass it. Now returning to the planned path."

This layered approach provides both efficiency and safety. Without global path planning, a robot would wander aimlessly, only reacting to the nearest walls. Without obstacle avoidance, the robot would collide with anything and anyone that wasn't on the original map. A successful AMR fleet deployment depends on robots that have mastered this sophisticated interplay.

This is why the performance of autonomous mobile robots can vary so much in dynamic environments like distribution centers or hospitals. The quality of the sensors, the speed of the onboard computer, and the sophistication of the navigation software all determine how gracefully a robot handles the unexpected.

Why This Technical Distinction Matters for Your Business

Understanding the difference between these two core functions helps you evaluate which commercial robot is truly right for your operations. A machine intended for a quiet, predictable space may not need the same advanced reactive capabilities as a material handling robot navigating a chaotic warehouse floor.

This is where the value of working with an OEM-neutral integrator becomes clear. Service Robot Co. isn't tied to a single manufacturer's navigation technology. Our role is to perform a detailed site assessment of your facility, understanding your specific workflow, traffic patterns, and potential challenges.

Based on that analysis, we select the right machine from across the industry, whether it's an autonomous floor scrubber for a retail store or a fleet of AMRs for a manufacturing plant. We focus on the robot that fits your floor and your operational reality. As a full-service partner, we handle the entire lifecycle, from the initial site assessment and mapping to financing, integration, training, and ongoing service through our nationwide network of engineers.

You get one partner and one number to call for the entire deployment, ensuring the technology is not just present, but productive.
