AMRs for Autoclave Cart Moves in Research Facilities

When does an AMR belong on your autoclave cart loop?

Research facilities should look at autonomous mobile robots when the same cart trip repeats between a prep bench, a pass-through autoclave, and a clean-side unload point with little variation in timing or path. If technicians stop bench work to push loaded carts through corridors, those minutes add up faster than most core labs track. The fit is strongest where carts stay on a standard footprint, loads are bagged or contained before travel, and the autoclave cycle itself is not the bottleneck.

AMRs are a poor first move when every PI runs a different container style or when carts must detour through unrelated vivarium corridors daily. Fix floor marking, cart standards, and door scheduling before you buy mobility. Mixed traffic with rolling cage racks or shared elevators without dedicated windows will stall even a well mapped robot.

According to the International Federation of Robotics World Robotics 2025 report, vendors sold 102,900 transport and logistics service robots in 2024, up 14 percent from the prior year. That volume reflects how common controlled indoor cart loops have become outside traditional warehouses, including regulated research buildings.

How do you prevent clean, in-use, and waste-side carts from mixing?

Biosafety practice treats autoclave loads as directional: material enters on the contaminated side, cycles under validated steam conditions, and exits on the clean side only after the cycle completes. A BSL-3 waste decontamination study published in Applied Biosafety described double-door pass-through autoclaves where doors cannot open simultaneously, which prevents cross traffic between sides. Your AMR software should mirror that intent with separate route profiles, not just colored tape on the floor.

Assign each cart a status in the fleet manager: clean staging, in-use collection, queued for autoclave, in-cycle lockout, and post-cycle clean release. The robot should refuse a pickup if the cart tag does not match the zone scanner at the dock. Visual mismatches still happen when someone borrows a cart for glassware runs, so weekly audits of tag inventory matter as much as the automation.

Never let one AMR serve both pre-cycle waste collection and post-cycle media prep without a washdown or swap window defined in SOP. Cross-contamination risk is procedural as well as robotic.

• Color and RFID tags tied to zone, not to individual users
• Separate charge docks on clean versus dirty sides of the barrier
• Software lock while autoclave cycle status is running
• Exception form when a cart returns from an unplanned detour

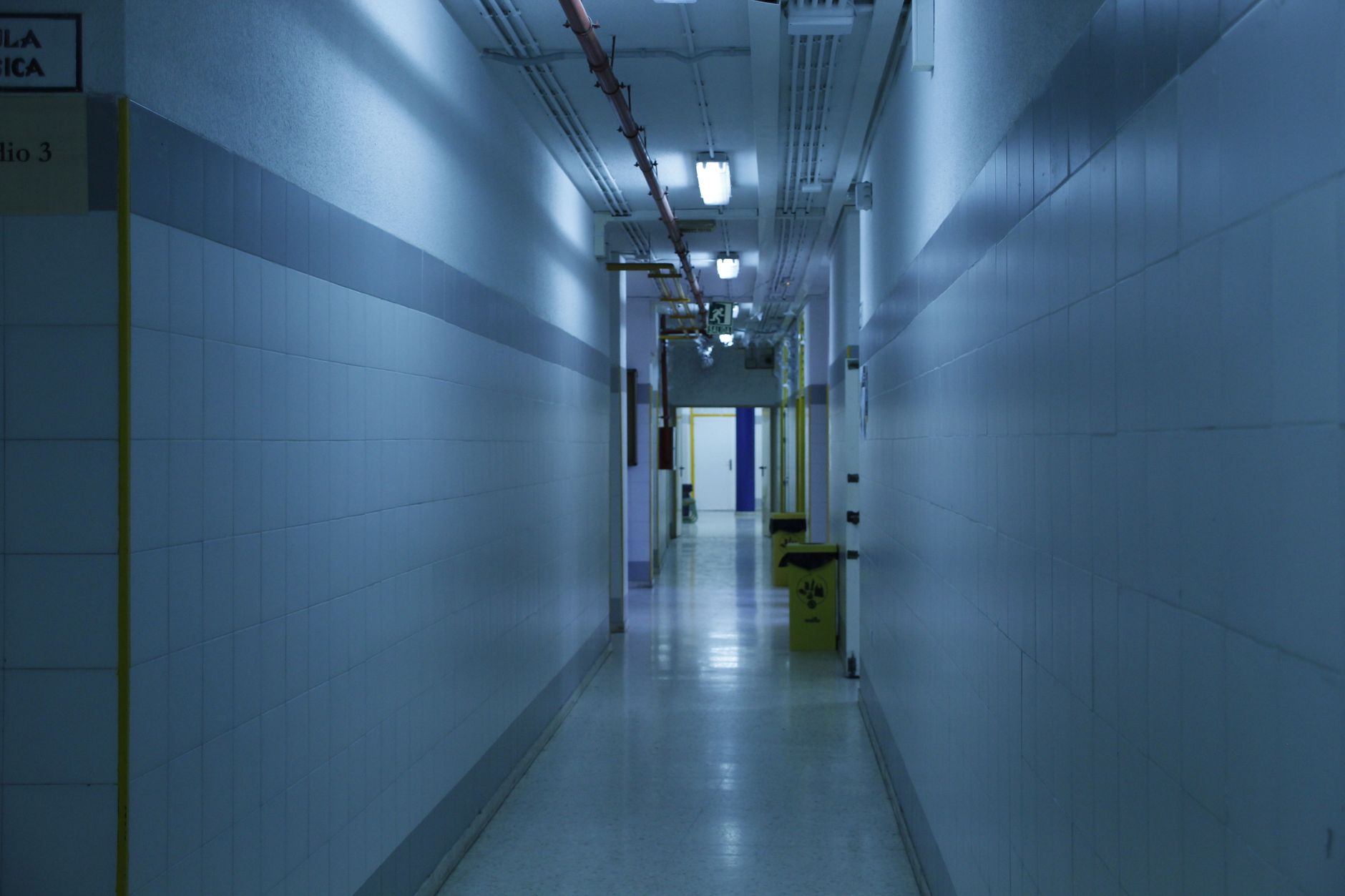

What heat exposure and door interfaces should you plan for?

Autoclave vestibules radiate heat long after a cycle finishes. AMRs need rated components, parking offsets outside the soak zone, and timed waits before docking so seals and casters are not sitting on hot tile. Vendor manuals for research waste autoclaves often specify specialized loading carts with liquid containment features, which tells you how much moisture and heat the robot must tolerate at the handoff point.

Door interfaces are the fragile link. Pass-through units interlock doors so only one opens at a time. The AMR must handshake with building controls or a dry contact from the autoclave PLC before entering the vestibule. If your facility uses manual door propping during busy periods, fix that habit before automation. A robot cannot safely enter a door with uncertain state.

Schedule integration tests with empty carts during real steam cycles, not only during idle autoclave maintenance windows. Heat, humidity, and floor condensation show up only when the vessel is working.

How should cart docking and securing work?

Docking should align the cart footprint within tolerance so a tug or low-profile AMR can engage without staff pushing from the side. Use mechanical guides or V-blocks at autoclave load positions so a slight navigation error still lands the cart correctly. Securing means more than a brake: chain hooks, bungee replacements with rated straps, or captive ledges stop shifting when the robot accelerates in a long corridor.

Payload sensing confirms the cart is present before motion starts. Empty pickup attempts waste cycle time and erode trust from lab staff. Weight thresholds also catch partial loads that could tip when the robot turns.

Keep backup manual docks adjacent but out of the robot lane so staff can bypass a failed dock without entering the guided path.

What chain of custody should the AMR record?

Chain of custody for research waste and reusable labware is a log problem as much as a transport problem. Each pickup and drop should capture timestamp, cart ID, zone ID, operator badge or PIN, autoclave ID, and cycle number when available. Export those events to your ELN or waste log rather than leaving them in the robot vendor cloud alone.

Regulators and institutional biosafety officers ask what happened between bench and autoclave. The AMR audit trail closes that gap when manual sign-off sheets get skipped during late-night runs.

Retention policies should match your institution document control. If logs must survive seven years, confirm export format up front, not after go-live.

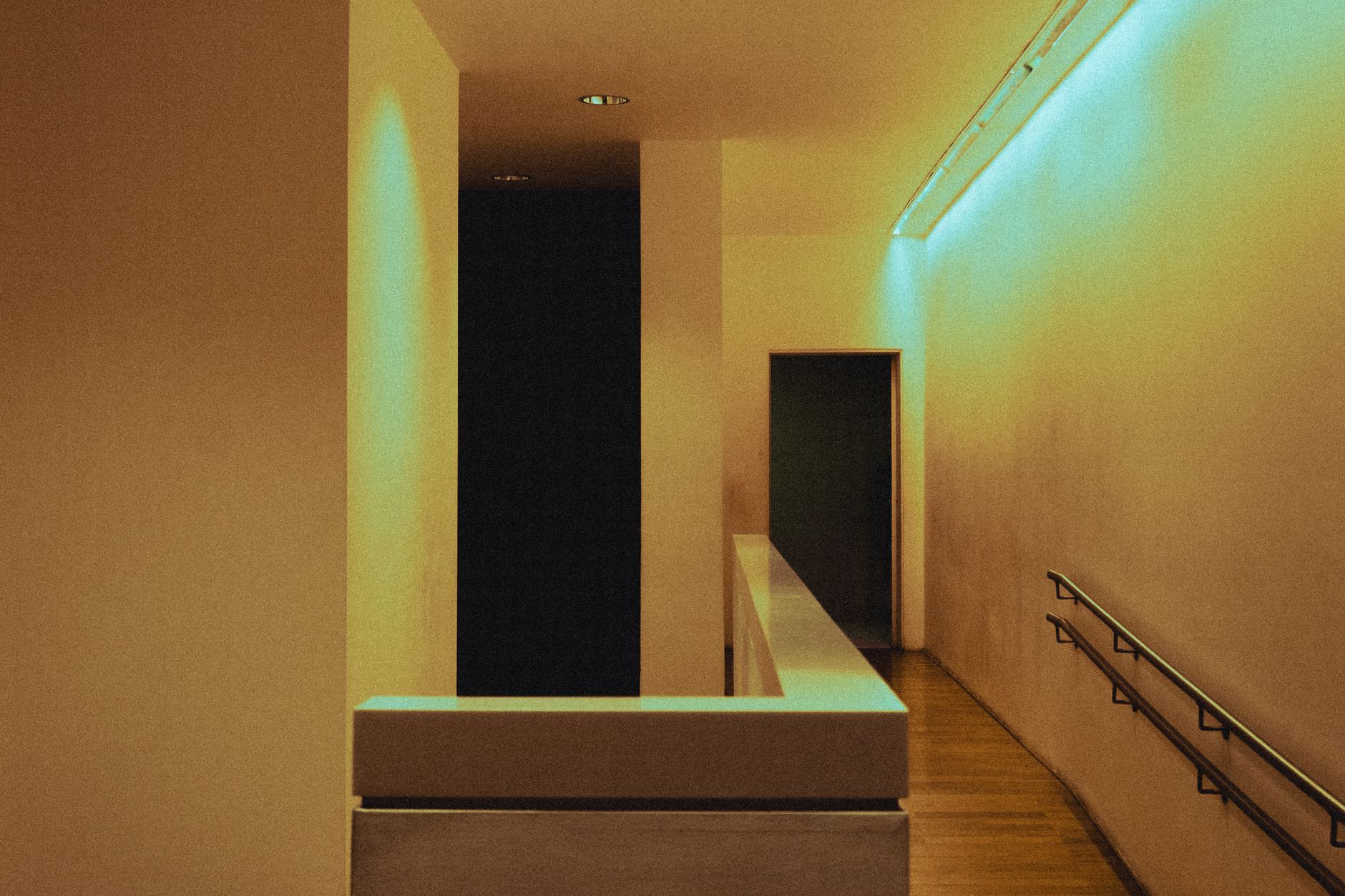

How do you recover when a route is blocked?

Corridor closures, elevator outages, and autoclave faults will block a loop. Define three tiers: reroute within the mapped graph, hold in a safe alcove until the path clears, and manual takeover with a tagged exception. The robot should never idle in a fire lane or in front of a egress door while waiting.

Train staff on a visible manual mode switch and a cart quarantine spot for loads that left the approved graph. Without quarantine, a diverted cart re-enters the clean loop and you lose custody.

Run quarterly drills where you close a primary corridor during a simulated peak load. Measure how long manual fallback takes and whether notifications reach the autoclave operator.

What does a phased pilot look like?

Phase one maps one autoclave and one cart type on the dirty-to-load path only, with humans still pushing from bench to the first dock. Phase two automates the middle corridor segment while staff retain load and unload at the autoclave. Phase three ties cycle status to fleet locks and exports custody logs nightly.

Success metrics are completed loops per shift, exception count, and time from bench ready to autoclave door closed. Compare against your baseline time study, not vendor demo speeds.

Service Robot Co. can run a vendor-neutral site assessment, specify lease or rental options with maintenance included, and pilot an AMR on one validated loop before you expand to secondary autoclaves or vivarium support paths.

What staffing and training change after go-live?

Assign a single lab owner for cart standards and a separate facilities owner for door interlocks. Researchers should know how to release a held robot after a spill cleanup, but only trained staff should edit maps or zones.

Post simple escalation cards at docks: who to call for a stuck cart, who approves a manual bypass, and where quarantined carts wait.

Monthly review of exception codes catches recurring blockers such as a propped door or a cart with a failing wheel that skews docking.
