Cobots for Loading Industrial Parts Washers

Where do cobots actually help at an industrial parts washer?

Industrial parts washers look automated once the spray cycle starts. In practice, labor clusters at the mouth of the cell. Operators lift baskets from carts, flip brackets for drain paths, slide racks onto pins, and hand off single parts that never sit flat in a standard fixture. When that motion repeats hundreds of times per shift, the washer waits on people more than on chemistry or pump pressure.

Collaborative robot arms fit when the part mix is bounded and the washer exposes a stable load zone. Think deburred housings in a fixed basket, machined shafts in a partitioned rack, or stamped panels that always nest the same way. The robot earns hours when it removes reach, twist, and grip force from the worst repetitions while a person handles exceptions, quality checks, and chemical housekeeping.

Cobots are a poor default for one-off rework, constant basket redesign, or jobs where every load is a new puzzle. They shine when engineering has already standardized the basket and the washer PLC can handshake with external equipment. That pairing is what turns a parts washing cell from a ergonomic hot spot into predictable machine tending.

What makes basket and rack loading harder than it looks?

Weight is only part of the story. Baskets often arrive with sharp flash, oily films, or chips that foul gloves. Rack pins must line up within a few millimeters or the washer conveyor jams on the next index. Mixed heights in one load can block spray headers, so orientation is a process rule, not a nice detail.

Manual loading also steals attention from the machine state. A worker watching the HMI while carrying a forty pound basket is split between balance and interlock status. According to the U.S. Bureau of Labor Statistics, manufacturing reported 355,800 total recordable injury and illness cases in 2023, with 224,400 cases involving days away, restriction, or transfer. Parts handling and material movement remain a large share of that burden even when the injury is not tied to a single machine.

Robot loading works when you document the nominal center of mass, the allowed tilt, and the order of operations for nested parts. A teach point on clean, dry samples is not enough. Validation needs oily production scrap, slightly bent tabs, and the same dunnage your night crew uses. Machine tending robot programs that skip that step look fast in a pilot and fail on the first Monday back at rate.

How do hot parts and drying time change the cycle?

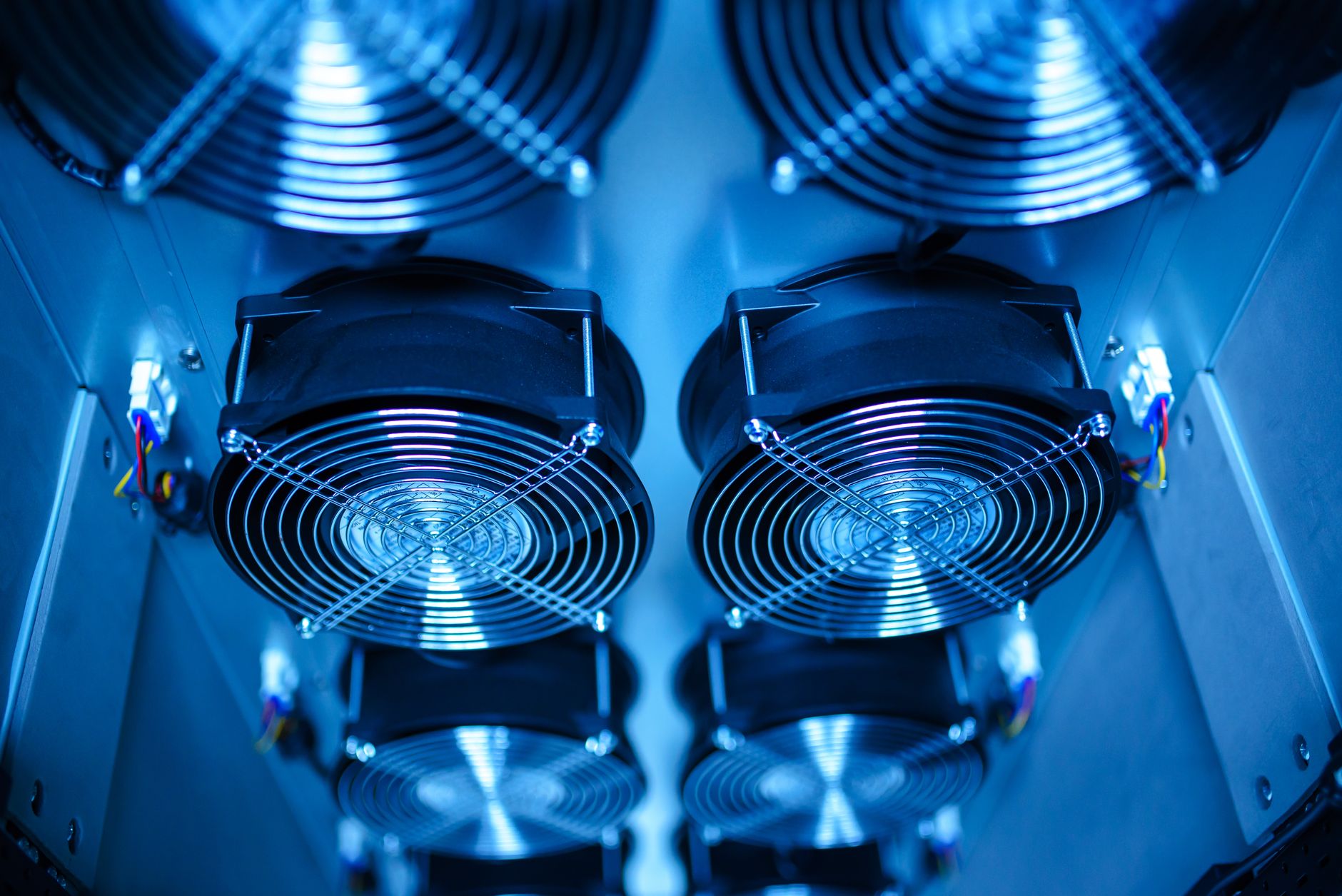

Parts exit washers hot enough to burn skin and warm enough to keep solvent flashing off surfaces. Operators compensate with cool-down racks, fan banks, or timed buffers before the next process. A cobot must respect that same clock. If the arm picks too early, gripper pads slip. If it waits too long, the washer starves and upstream machining backs up.

Drying time is often the hidden cap on hourly output. A six minute wash cycle means little if parts need four extra minutes on a drip table before inspection or packaging. Robotic loading lets you place hot baskets on a cooling nest, return for the next load, and only move cooled sets to downstream stations. The motion plan becomes a schedule, not a single pick and place loop.

Thermal growth matters on tight nests. A warm bracket may sit snug in a fixture and bind when cold. Programs should allow slight compliance in the gripper or a re-grip after cooldown when dimensions must be exact. Document temperature bands on the work instruction so maintenance knows when to re-teach, not only when the washer alarm fires.

How should you manage chemical exposure at the load station?

Parts washing touches alkalines, emulsifiers, and sometimes chlorinated solvents. OSHA’s metalworking fluids guidance lists splash from cleaning compounds, sharp edges, and heavy parts as routine hazards around finishing areas. NIOSH estimates that roughly 1.2 million U.S. workers in metal finishing and related operations may be exposed to metalworking fluid aerosols and skin contact from wet parts.

NIOSH recommends keeping metalworking fluid aerosol exposure to about 0.4 mg per cubic meter thoracic particulate mass as a time-weighted average over a ten hour day in a forty hour week. Even when your washer is aqueous, mist and carryover from neighboring cutting lines can share the same breathing zone as the load station. Local exhaust, splash guards, and keeping tanks covered still matter when a robot replaces hands at the door.

Solvent washers add vapor exposure. OSHA’s methylene chloride standard sets a 25 parts per million eight hour time-weighted average permissible exposure limit where that solvent is in use, and the agency’s fact sheets urge enclosed cleaning, local exhaust, and substitution with aqueous steps when feasible. A cobot does not remove those obligations. It moves the operator laterally to sampling, drain maintenance, and exception handling while the arm stays on the wet side of the guard.

Design the cell so humans never reach across an open tank to clear a dropped part while the washer is armed. Tooling drains back into the system, drip pans are sloped, and glove-friendly manual stations sit outside the robot reach envelope for the tasks you still want people to own.

Why do machine interlocks matter for robotic tending?

A parts washer is interlocked equipment. Doors, lid switches, conveyor locks, and fault resets are not optional extras. Integrating a cobot means the arm motion is another motion axis that must stop when the washer demands it. Updated robot application standards such as ISO 10218-2:2025 spell out start and restart interlocks, monitored standstill, and protection from unexpected restart for integrated cells.

Practical cells map washer states to robot hold conditions. When the chamber cycles, the arm stays outside the splash zone or in a monitored stop. When the conveyor indexes, the robot may not enter until a permissive bit clears. Reset after a fault should require a deliberate human acknowledgment, not an automatic resume that catches someone adjusting a basket pin.

Collaborative modes are application decisions, not a label on the arm. Power and force limiting can help during teach and minor tweaks, but full speed production loads near hot chemical mist often belong behind a fixed guard with interlocked access. Risk assessment should name who clears jams, how the washer is isolated, and what proof you keep that interlocks were tested after any PLC or robot program change.

• Document which washer signals feed the robot safety PLC versus the production PLC.
• Test restart after e-stop with a loaded basket in place and with an empty nest.
• Log interlock bypass events; auditors treat washer cells like any other locked machinery.

How do you validate grip, orientation, and throughput?

Start from the basket drawing, not from the robot demo. Measure lip height, drain hole location, and where oil pools after lift. Vacuum cups fail on porous castings; finger grippers need jaw stroke for flange thickness variation. A machine tending robot should pick from the same stack height your cart delivers, including the bent corner everyone says never happens but does on night shift.

Orientation checks belong in the robot sequence when spray coverage depends on angle. A part flipped ninety degrees may still fit the basket but fail cleanliness spec. Low cost presence sensors, vision checks, or mechanical nesting can catch a reversed bracket before the door closes. Tie those checks to a reject path so the washer does not run a useless cycle.

Rate the cell on loaded washers per hour, not on arm cycle time alone. Include drip buffer, operator refill of empty baskets, and time to clear a chemical alarm. Cobot rental or a monthly payment program only pencils out when those full loops gain minutes you can reassign to inspection or upstream machining.

When does outside integration beat staffing the load station forever?

Facilities often add a second operator before they fix the basket standard. That buys relief but keeps exposure and lifting on the payroll. Financing automation through robot leasing for business or a month to month cobot rental shifts capital into an operating expense line while an integrator owns gripper design, safety validation, and training.

Service Robot Co. acts as a full service commercial robot integrator for U.S. plants. We are OEM neutral, so the arm and end effector match the washer cell rather than a catalog default. We finance, deploy, integrate, train, and service through a nationwide engineer network so one vendor carries the lifecycle after go live.

The first site visit should map chemical classes, interlock wiring, and your basket library. From there, a pilot on one washer line proves drip timing and interlock behavior before you scale to parallel cells. That phased path fits manufacturing plants that cannot shut down finishing for a month long retrofit.
