Repeatable Robot Inspection Routes That Hold Up

What actually makes a route repeatable?

A repeatable robot inspection route is a documented measurement process, not just a path on a map. Choose a fixed set of checkpoints, define the exact view and sensor profile for each one, and tie every reading to a known operating state. If the robot sees the same asset from the same geometry under similar conditions, the data starts to mean something.

NIST defines repeatability as successive measurements of the same thing under the same procedure, instrument, location, and short time window. That is the right mental model for inspection program design. A route is repeatable when the robot can return to the same place, capture the same evidence, and do it with little enough measurement noise that real asset drift stands out.

The route spec should be written before the pilot expands. Each checkpoint needs an ID, asset tag, purpose, robot pose, camera framing, sensor settings, baseline band, and action rule. Without that card, teams end up comparing different pictures of different operating states and calling it trending.

• Checkpoint ID and asset or area name
• Inspection objective, such as leak check, heat anomaly, corrosion watch, or gauge reading
• Robot stop pose, standoff distance, and camera height
• Allowed view angle window and reference features that must stay in frame
• Locked sensor profile, plus any approved conditional overrides
• Baseline operating band, such as machine on, fan at normal speed, lights on, or door open
• Alarm rule, exception rule, and required follow-up

Which checkpoints belong on the route?

Start with consequence, not curiosity. OSHA's hazard prevention guidance says limited resources should be deployed on a worst-first basis after hazard ranking. In practice, that means route space goes first to assets where missed deterioration can stop production, trigger a safety event, damage product, or cause expensive emergency work.

The second filter is detectability. Good checkpoints expose a failure signature the robot can capture consistently, such as discoloration, fluid accumulation, unexpected heat pattern, vibration proxy, indicator light state, or meter position. A theoretically important asset is a poor route candidate if the robot cannot reach a stable view or the signal only appears during rare transient events.

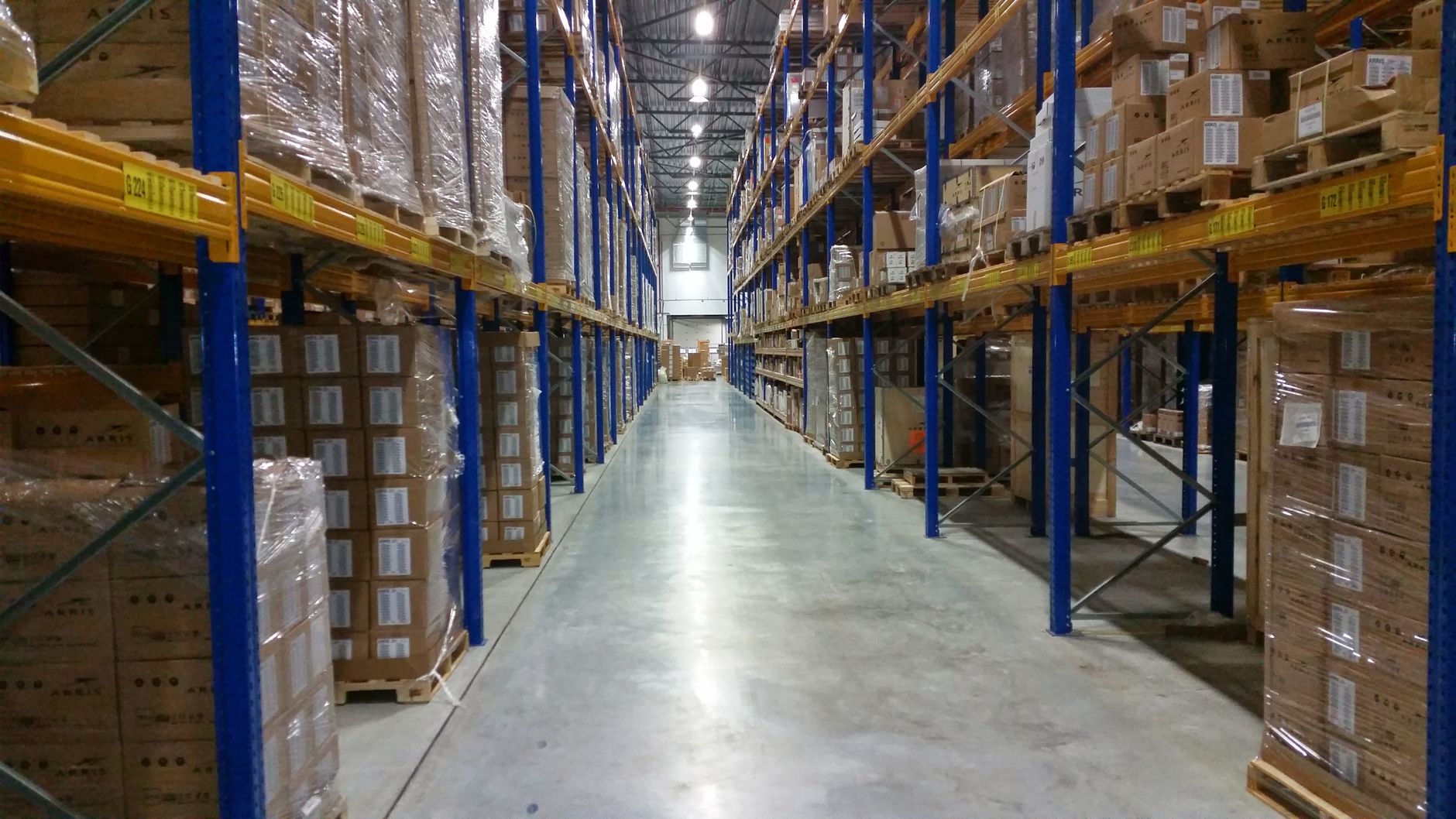

The third filter is serviceability. Pick checkpoints your team can revisit without drama across weeks and months. If a point will be blocked every other shift by parked pallets, scissor lifts, or temporary partitions, it belongs in a separate conditional route or needs a different sensing method. The same rule applies if a crawlspace inspection robot is working under a raised floor or in a utility void with inconsistent access.

• High consequence and slow-to-notice failures
• Stable access on the same schedule the robot will run
• Clear line of sight or repeatable sensor exposure
• Visual or thermal signature that changes before failure
• Simple human confirmation when the robot flags a change

How should camera views be defined?

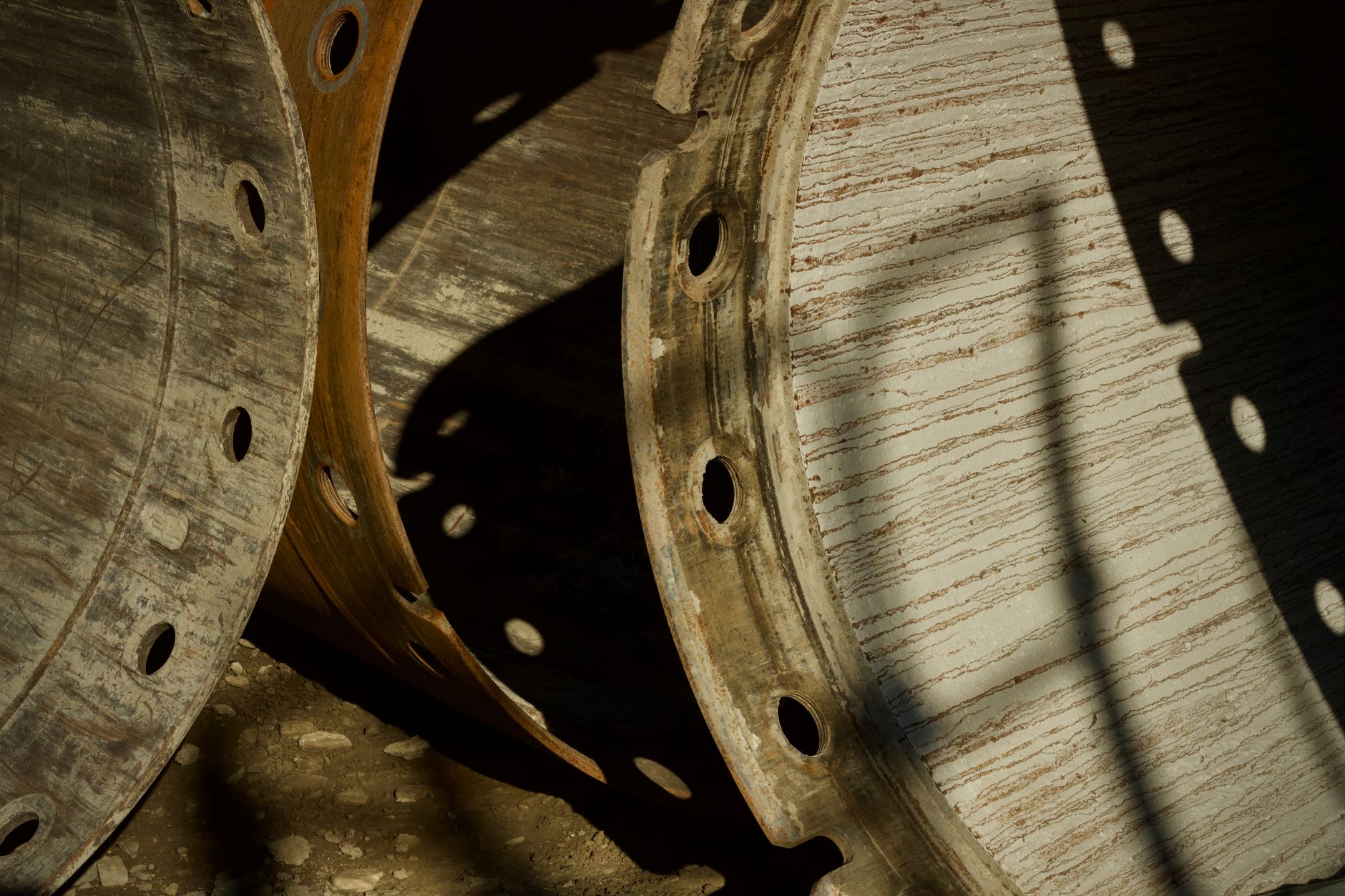

Camera repeatability lives or dies on geometry. For every checkpoint, define the robot stop point first, then the camera height, yaw, pitch, zoom or focal setting, and what must appear in frame. One flange, panel seam, label, or structural edge should act as the visual anchor so the image can be matched every time.

This matters even more on shiny or painted surfaces. NIST notes that reflected light changes substantially with illumination angle and viewing angle, so a small shift in camera position can create a fake hotspot, wash out corrosion, or hide liquid sheen. That is why good programs specify angle windows, not just a vague instruction to look at the pump or look at the panel.

The practical rule is simple. If a human reviewer cannot place today's image over last month's image and recognize the same composition in two seconds, the checkpoint is underspecified. Build viewpoint cards, validate them on day and night runs, and reject any checkpoint that only works when a skilled operator nudges the camera by feel.

• Use a fixed stop marker, not a manual pause anywhere nearby
• Frame the asset plus one permanent landmark
• Set a maximum allowed angular deviation for reflective surfaces
• Keep focal length and crop constant unless the checkpoint is formally redefined
• Store a gold-image reference from commissioning for side-by-side review

Which sensor settings should stay locked?

A useful inspection route does not chase perfect data at every stop. It chooses comparable data. That means each checkpoint gets a sensor profile that stays fixed unless there is a documented reason to change it. Visible cameras need fixed resolution, exposure strategy, white balance mode, and focal setting. Thermal cameras need fixed palette, span logic, emissivity assumption, reflected-temperature method, spot or box location, and image sampling rules.

Locking every setting is not the goal. Lock the settings that change the meaning of the measurement. If auto exposure swings between passes, stain growth can disappear into a brighter scene. If thermal span auto rescales, a serious temperature rise can look mild because the whole color map moved. If gain, averaging, or frame selection changes, noise can masquerade as deterioration.

NIST's measurement handbook recommends structuring check-standard measurements the same way as the reported measurements, and for high-precision work it says a check-standard measurement should be included with every sequence if possible and at least once a day. It also notes that two or three measurements can track both bias and short-term variability. Adapt that idea to robot routes by keeping one or two easy reference checkpoints on every run. If those images drift, your route or sensor profile drifted too.

• Lock by default: resolution, focal setting, crop, thermal palette logic, emissivity assumption, averaging, and measurement region
• Allow conditional overrides only for known state changes, such as lights off, hatch open, or equipment shutdown
• Version every sensor profile so analysts know exactly when a setting changed
• Record why a profile changed and which historical trend should be closed and re-baselined

Baseline conditions are part of the measurement

Teams often treat the baseline as a single good image. That is too thin. A baseline is the normal operating envelope for that checkpoint. It includes process state, environmental state, and access state. Machine load, door position, lighting, weather exposure, housekeeping, and nearby traffic all shape what the robot sees.

NIST's guidance on measurement variability separates short-term instrument variation from between-day variation driven by environment and handling. That distinction is useful here. Commission each checkpoint with multiple passes in one shift to expose short-term noise, then repeat across the normal operating states that actually matter, such as startup temperature, steady-state load, and post-cleaning appearance.

Document the allowed baseline band in plain language and in data fields. For a motor cabinet, that may mean production running and enclosure closed. For a roof unit, it may mean outside air above a set threshold and no standing water from rain. When the robot runs outside that band, the route did not fail. It produced an exception that should be tagged and excluded from trend comparison.

• Operating state, including on or off, load level, cycle phase, and adjacent equipment status
• Environmental state, including ambient temperature, lighting, moisture, and airflow
• Access state, including doors, guards, ladder position, and temporary obstructions
• Housekeeping state, including washdown, dust accumulation, and recent maintenance work

Why does repeatability make trend detection valuable?

Trend detection is powerful because deterioration is usually incremental. A stain widens. A hotspot becomes asymmetric. A gauge needle settles lower than it used to. A belt guard shows new residue. Those signals are easy to dismiss when every inspection is framed differently. They become persuasive when the robot presents a clean time series from the same vantage and the same operating band.

NIST describes a check standard as a way to expose time-dependent errors and control long-term variability once a baseline exists. That principle maps well to inspection routes. You are not just trying to catch dramatic failures. You are trying to tell the difference between process drift, environmental noise, and a true change in asset condition.

This is why alarm logic should rarely depend on one image alone. Use trend rules such as three rising exceptions in the same region, repeated thermal delta growth across comparable runs, or a sustained visual change confirmed by a reference checkpoint that stayed stable. Repeatability turns a robot from a roaming camera into a credible monitoring instrument.

What should happen when a checkpoint is blocked or changed?

Never let the system quietly skip a checkpoint and pretend the route completed cleanly. A blocked stop, sealed room, parked trailer, or moved asset is a data event. OSHA's process-safety guidance stresses recording the date, the person, the equipment identifier, the inspection performed, and the results. Your robot program should apply the same discipline to missed or altered inspections.

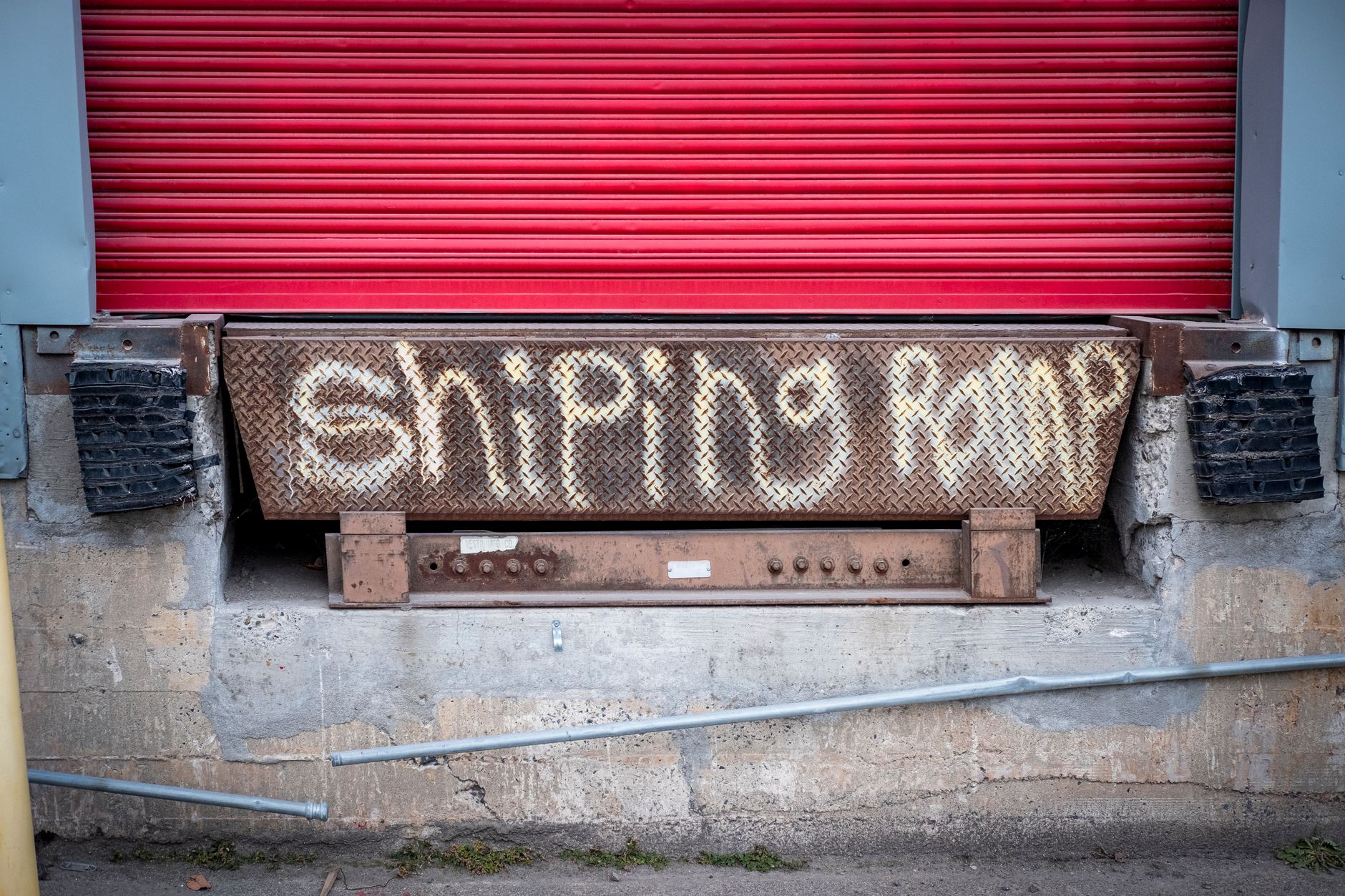

Handle temporary inaccessibility with explicit exception codes. Use blocked, unsafe approach, asset offline, field-of-view obstructed, and changed geometry as separate states. That keeps analysts from mixing no data with normal data. If the same checkpoint is blocked often, redesign the route or the site. Repeated exceptions are telling you the program was specified around an imaginary operating day.

Handle permanent change with change control, not with a quiet route edit. OSHA's management-of-change guidance says changes to equipment, procedures, or facilities require written procedures and updated operating information. If a checkpoint moves, the asset is replaced, the guard changes shape, or the process state shifts, close the old trend, approve the new checkpoint definition, and establish a new baseline before comparing history.

• Log every miss with a reason code, timestamp, and image if available
• Do not interpolate or backfill a blocked checkpoint
• Escalate repeat misses after a fixed threshold, such as three consecutive runs
• Use a formal re-baseline when geometry, equipment, or process state changes
• Preserve the old history instead of merging unlike checkpoints into one trend
