Key takeaways
- Qualify the gripper in the real contaminated state, not on wiped, dry sample parts.
- Check seal, cup, pad, and hose chemistry as carefully as gripping force, because coolant can change the tool over time.
- Validate bad-pick detection and dynamic drop behavior on the full robot path, not just a static hang test.
- Before unattended operation, keep a documented validation pack and run enough failure-free time to support the claim you want to make.
What does a valid oily-part qualification actually require?
To qualify a cobot gripper for oily machined parts, start with the real failure modes, not a catalog holding-force number. The test plan has to cover friction loss from oil or coolant, seal and pad compatibility, bad-pick detection, dynamic slip and drop behavior, and the evidence needed to run without an operator standing there.
In practice, that means five workstreams. Prove grip margin in the contaminated state. Check every contact and sealing material against the actual fluid. Validate detection for no-part, partial-seat, and double-pick faults. Run dynamic drop testing on the real path. Then connect the results to guarding, recovery, and maintenance procedures.
Current safety guidance points in the same direction. ISO says ISO 10218-2:2025, published in February 2025, covers the integration, commissioning, operation, and maintenance of industrial robot applications and robot cells, and explicitly frames safety around robots used with end-effectors and other integrated systems. That matters because the gripper is part of the cell safety case, not a bolt-on accessory.
Start by defining the contaminated state
Many shops say a part is oily as if that were one stable condition. It is not. According to NIOSH, metalworking fluids range from straight oils to soluble, semisynthetic, and synthetic fluids, and in-use fluids also pick up tramp oil, hydraulic fluid, fines, and biological contamination. A pickup trial on wiped sample parts does not qualify the process you actually run.
Write a contamination definition before you test. Identify the machine or process source, the exact fluid, the concentration or mix rule, the dwell time between machining and pickup, the drain orientation, and whether residual chips can remain on the contact land. If parts are picked warm, include temperature and time-since-machining as well.
NIOSH also notes that about 1.2 million workers are potentially exposed to metalworking fluids and recommends aerosol limits of 0.4 mg per cubic meter for thoracic particulate mass or 0.5 mg per cubic meter for total particulate mass. If your validation routine throws mist or splash around the cell, fix that condition first. It is both an exposure issue and a sign that your grip condition is not under control.
How do you prove enough grip margin?
The governing question is simple. What normal force reaches the part after oil cuts friction, after pad wear reduces bite, and after the robot sees its highest acceleration, deceleration, and worst orientation? Start with the physics of part mass, center-of-gravity offset, contact geometry, and motion profile. Then prove the result on hardware in the contaminated state, because oily contacts do not obey dry assumptions for long.
Do not stop at a vertical dead-hang. Run static holds at every orientation used in the cycle, then dynamic tests at real speed, real accel and decel, and real settle motion. Include warm-state testing after the gripper has cycled long enough to reach operating temperature. A pickup that looks fine cold can still creep after repeated handling.

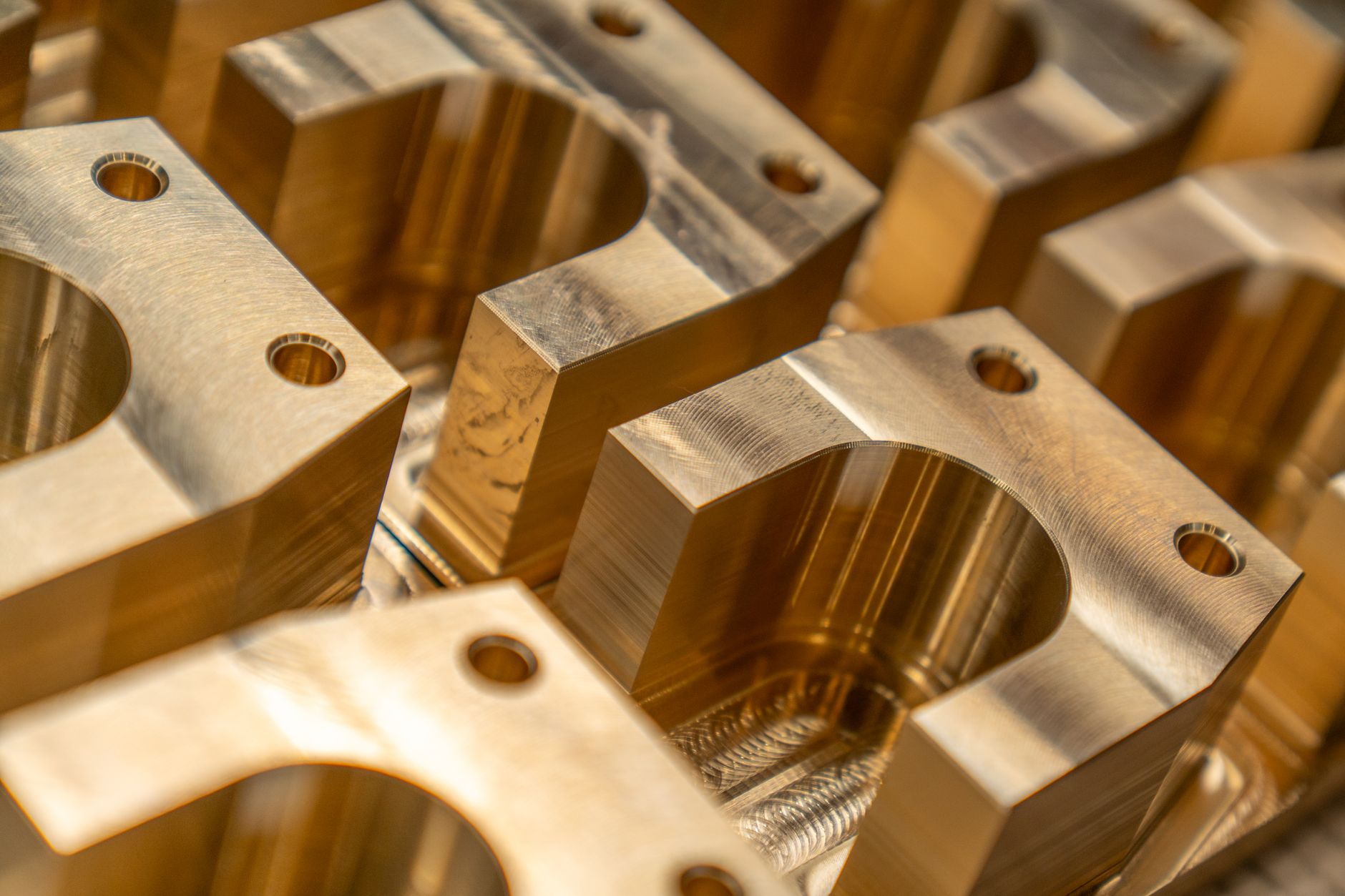

The worst part in the family usually decides the answer. Smooth turned diameters, narrow flange lands, shallow jaw engagement, pooled coolant in recesses, and chips trapped on the contact surface all erode margin. If supplier changes, revision changes, or surface-finish changes alter the contact, they belong in the qualification matrix.
Seal and contact material compatibility can quietly wreck the test
Oily-part validation is not only about immediate holding force. It is also about what the fluid does to the end-effector over weeks of production. Cups, pads, O-rings, bellows, hose liners, and adhesives can swell, harden, crack, or get slick enough to change the pickup long before a dramatic failure appears.
According to Trelleborg's published material data, NBR is listed for mineral oil, water, and hydraulic fluids from minus 22 to 212 degrees Fahrenheit. FKM is listed for fuels, oils, chemicals, and aggressive fluids from minus 13 to 392 degrees Fahrenheit. EPDM is listed for hot water, steam, polar solvents, and water-glycol, but Trelleborg also warns against using EPDM with oil products because it absorbs oil and weakens. That single material choice can decide whether an unattended weekend run stays stable.
Check every wetted or rubbed component, not just the obvious cup or finger pad. Then do endurance testing with the real coolant or oil and inspect for swell, hardness shift, surface glazing, cracking, and changes in pickup consistency. The inspection interval should come from evidence, not from the supplier's most favorable assumption.
Can the cell tell a good pick from a bad one?
A gripper that can hold a good part but cannot detect a bad pick is not qualified. Your detection layer has to distinguish at least four states: no part, correct part, partial seat, and wrong condition such as a double pick or a cocked part. The response has to be safe and recoverable, not just clever.
For vacuum tooling, that often means combining vacuum level, vacuum decay, and time-to-achieve-vacuum. For mechanical fingers, it often means jaw position, force feedback, or an independent sensor confirming the part is seated. Add downstream confirmation when a missed part would damage a machine, scrap a part, or create a drop hazard.
- No part at pickup
- Partial seat on one jaw or one cup
- Double blank or nested part
- Part rotated or upside down if geometry allows it
- Chip trapped on the contact land
- Pressure or vacuum loss during transit
What does a real drop test look like?
A drop test is controlled evidence, not theater. It should tell you where the part can fall, what happens if it does, and whether the cell fails safely. Start above a guarded tray, dead zone, or sacrificial catch area, then reproduce the actual motion segments where grip loss would do the most damage.
Nominal runs are not enough. Test after intentional over-wetting, with the slickest approved part finish, after contact-wear accumulation, and at the fastest motion profile you intend to release to production. Include a pause or dwell that lets oil migrate across the contact patch, because some slips appear only after the squeeze film redistributes.
Controlled upset cases matter just as much. Pressure sag, vacuum interruption, emergency stop during transit, and restart after interruption often expose behaviors that clean steady-state cycles hide. If one plausible fault can drop the part outside the guarded catch zone, the cell is not ready for unattended operation.
What evidence is enough before unattended operation?
OSHA's 1910.212 requires one or more methods of machine guarding where workers can be exposed to machine hazards, and 1910.147 requires documented energy-control procedures for servicing and maintenance. For a cobot cell, that means gripper validation has to connect part handling performance to guarding, lockout, recovery, and inspection practice. Passing parts from point A to point B is not enough.
The U.S. standards landscape has also moved toward more explicit system validation. A3 says ANSI/A3 R15.06-2025 is the first major revision since 2011 and that the updated documents make functional safety requirements more explicit. That is the right mindset for oily-part handling. You are not approving a tool in isolation. You are approving a robot application with known hazards and a documented response to them.
Reliability math helps decide how much runtime proof to gather. NIST notes that with zero failures, the one-sided 95 percent lower MTBF bound is test time multiplied by 0.3338. In plain language, a failure-free representative test should run about three times longer than the unattended interval you want to claim. An 8-hour lights-out shift calls for about 24 hours of failure-free runtime in the validated condition. A 24-hour unattended window calls for about 72 hours.
- Approved part numbers and worst-case geometry
- Exact fluid and contamination condition used for testing
- Gripper bill of materials for cups, pads, seals, and hoses
- Detection logic and fault responses
- Dynamic test results and mapped drop zones
- Inspection and replacement triggers for wear items
- Restart, recovery, and lockout steps
- Change triggers that force requalification, such as new coolant, new part finish, new pad material, or faster motion
