Robotic Thermal Checks for Cold-Storage Door Seals

What can a mobile thermal check actually find?

A mobile robot carrying a radiometric thermal camera can flag damaged gaskets, doors that have not seated completely, and suspected cold-air leakage. It looks for abnormal surface-temperature patterns around the leaf, frame, threshold, hinges, and latch after the door should be closed.

A narrow warm band seen from the cold side may indicate outside heat entering through a gap. From the warm side, escaping cold can chill the frame or adjacent floor. An asymmetric pattern can expose poor gasket compression, a sagging door, debris at the sill, or a closure that stopped just short of the latch.

The important limitation is that thermography records infrared radiation from surfaces. It does not directly measure airflow, food temperature, or gasket integrity. Treat the image as a screening result that directs a technician to the right door and fault zone, then confirm the cause with a physical inspection.

Why do door-seal defects deserve repeatable checks?

A small opening is not merely a temperature blemish. Warm, moisture-laden air entering a refrigerated space adds sensible and latent heat, encourages frost and condensation, and can make the refrigeration system work harder.

The U.S. Department of Energy states that worn gaskets and malfunctioning closers let warm, moist air enter commercial refrigerated compartments, increasing energy use and possibly contributing to food spoilage. DOE also identifies frost on shelves or products as a sign that gaskets or closers may not be working properly.

Product safety still depends on calibrated contact or air-temperature monitoring. The FDA Food Code uses 41°F or below for cold holding of time and temperature control for safety food, while USDA says frozen food retains its quality longest at 0°F. A thermal alert supports maintenance; it is not proof that stored product crossed either limit.

What makes a trustworthy temperature baseline?

The best reference is not a universal temperature threshold. It is the normal thermal signature of the same door, viewed from the same side, distance, angle, and camera settings under comparable room, ambient, and operating conditions.

Commissioning should capture healthy closures across representative traffic periods and refrigeration states. Record the cold-room setpoint, nearby ambient temperature, humidity, door-open history, defrost status, anti-sweat heater state, and elapsed stabilization period. These variables explain much of the variation that would otherwise look like damage.

Store regions of interest for the header, jambs, latch, hinge line, bottom sweep, and threshold. The inspection rule can then compare each region with its own historical range and with neighboring parts of the door. Pattern, persistence, and location are usually more useful than a single absolute pixel temperature.

When should the robot run its route?

Route timing should create diagnostic contrast without confusing normal traffic for failure. A steady-state round works best after doors have remained closed long enough for opening transients to settle. The required interval must be established during commissioning because door mass, temperature difference, airflow, and gasket construction vary by site.

A single daily pass can miss an intermittent closer problem. Event data makes the route smarter: a long opening, failed latch signal, or repeated reopen can trigger a targeted revisit, while a scheduled low-traffic round supplies a clean comparison.

• Run a steady-state health round during a predictable low-traffic window.
• Schedule a post-close verification after receiving, picking, or sanitation activity.
• Delay or label scans taken during defrost, washdown, or active door use.
• Repeat suspicious views from the same pose before escalating the alert.

What produces false positives?

Recent openings leave legitimate thermal trails. Wet thresholds, ice, direct sunlight, a warm anti-sweat heater, an evaporator cycle, and a pallet blocking the camera can also change the image without proving a seal defect. Shiny kick plates may reflect the operator, equipment, or a nearby warm surface.

NIST identifies calibration, emissivity, point-spread behavior, and measurement uncertainty as important thermography concerns. Motion adds another complication on a mobile platform. The robot should slow or stop at the inspection pose, verify focus and target size, and compare like materials rather than treating every surface as equally emissive.

• Check the visible-light image for an open door, obstruction, ice, or damaged hardware.
• Require persistence across repeat observations when immediate action is not warranted.
• Use closure-switch and access-log data to explain recent openings.
• Separate heater, frame, gasket, and floor regions so unlike materials are not compared blindly.
• Send ambiguous cases to a technician for smoke, paper-pull, pressure, or direct gasket checks.

How does an alert become maintenance action?

An alert should arrive as a work-ready record, not a colorful image with no interpretation. Include the door identifier, timestamp, thermal and visible images, highlighted region, deviation from baseline, recent door events, operating context, confidence level, and suggested confirmation step.

Triage starts with conditions that can be corrected immediately. Remove threshold debris, close and relatch the door, and check for a blocked track. Persistent patterns then lead to gasket inspection, compression checks, hinge and strike alignment, closer adjustment, heater testing, or an examination of the frame and insulation.

• Operational alert: door appears open, obstructed, or incompletely latched.
• Mechanical alert: localized loss of gasket compression or alignment is suspected.
• Thermal-system alert: heater, insulation, or frame behavior needs specialist diagnosis.
• Verified repair: repeat the original inspection pose under comparable conditions and attach the result to the work order.

What should a pilot prove before fleet deployment?

A robot pilot program should test the inspection method against known-good doors and seeded, safely controlled defects. Track confirmed findings, nuisance alerts, missed defects, repeatability, route completion, rescan burden, and the time from detection to work-order closure. Energy use may be tracked too, but it should not be attributed to gasket work without accounting for weather, traffic, load, and defrost behavior.

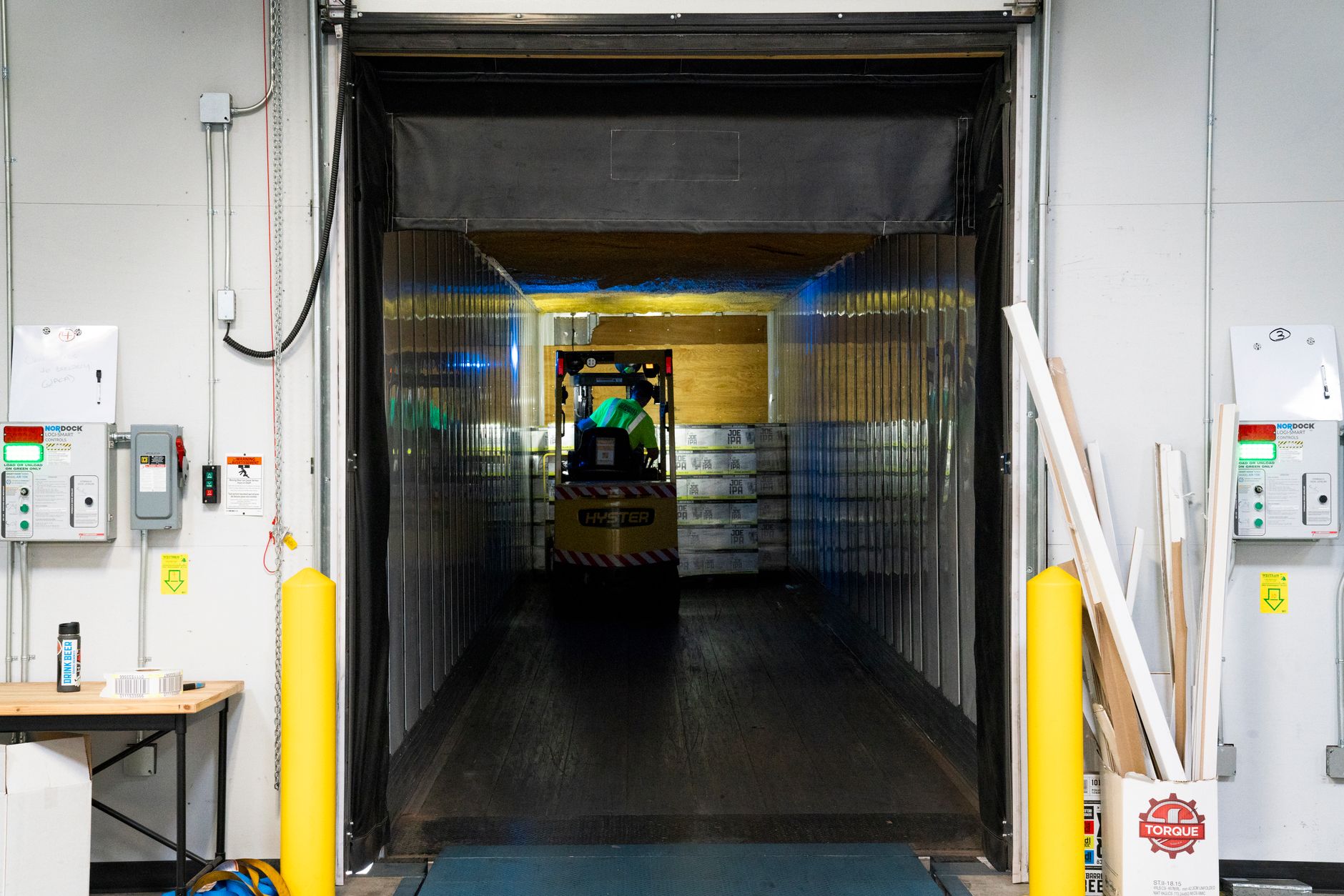

The pilot should also expose practical constraints: lens fogging, condensation after temperature transitions, safe travel near forklifts, camera sightlines, network dead zones, and sanitation requirements. A commercial robot demo that ignores those conditions proves little about production performance.

Service Robot Co. can conduct the free site assessment, site assessment mapping, and robot deployment and integration needed to validate the full workflow. As an OEM-neutral partner, the company selects equipment around the route, thermal payload, environment, and maintenance system rather than forcing the site around a predetermined machine.

How should the program be supported over time?

Door behavior changes as gaskets age, hinges settle, traffic patterns shift, and heaters are adjusted. Baselines therefore need controlled updates, and the camera needs scheduled cleaning and calibration checks. Trend review should distinguish gradual deterioration from a sudden closure failure.

Commercial arrangements can match the operating risk. An inspection robot rental or robot as a service program can provide monthly payment programs and no upfront capital, while lease rental or sale structures suit sites with different ownership preferences. Contract language should state who maintains the sensor, validates alerts, updates routes, and responds when the robot cannot complete a round.

Service Robot Co. provides financing, deployment, integration, training, remote triage, commercial robot repair service, and on-site dispatch through a nationwide U.S. engineer network. Maintenance included and one partner one number are especially valuable when a multi-site operator wants consistent inspection records without building separate relationships for hardware, software, and field service.
