Escalator Pit Inspection Robots: A Practical Guide

Can a robot inspect the pit before a mechanic enters?

Yes. A compact crawler, tethered camera, or articulated inspection camera can give the maintenance team an initial view of an escalator pit before anyone climbs inside. It can reveal pooled lubricant, debris, corrosion, damaged wiring, loose hardware, abnormal chain alignment, and obstructed access points.

That reconnaissance can reduce uncertainty and help the mechanic plan tools, protective equipment, cleanup, and parts. It may also show that entry should be postponed until a leak, atmosphere concern, access defect, or retrieval problem is addressed.

The robot does not replace the mechanic, the required inspection, or the energy-control procedure. It is an inspection aid. The safest program treats robotic documentation as the first layer of evidence, followed by hands-on examination and testing by personnel authorized under the applicable code and jurisdiction.

Shutdown comes before the camera

Sending a camera into the machinery does not make a live escalator safe. OSHA defines servicing and maintenance broadly enough to include inspecting equipment when a worker could be exposed to unexpected energization, startup, or stored energy. The facility and its escalator contractor must decide how the site-specific energy-control procedure applies before access panels are removed or equipment enters the pit.

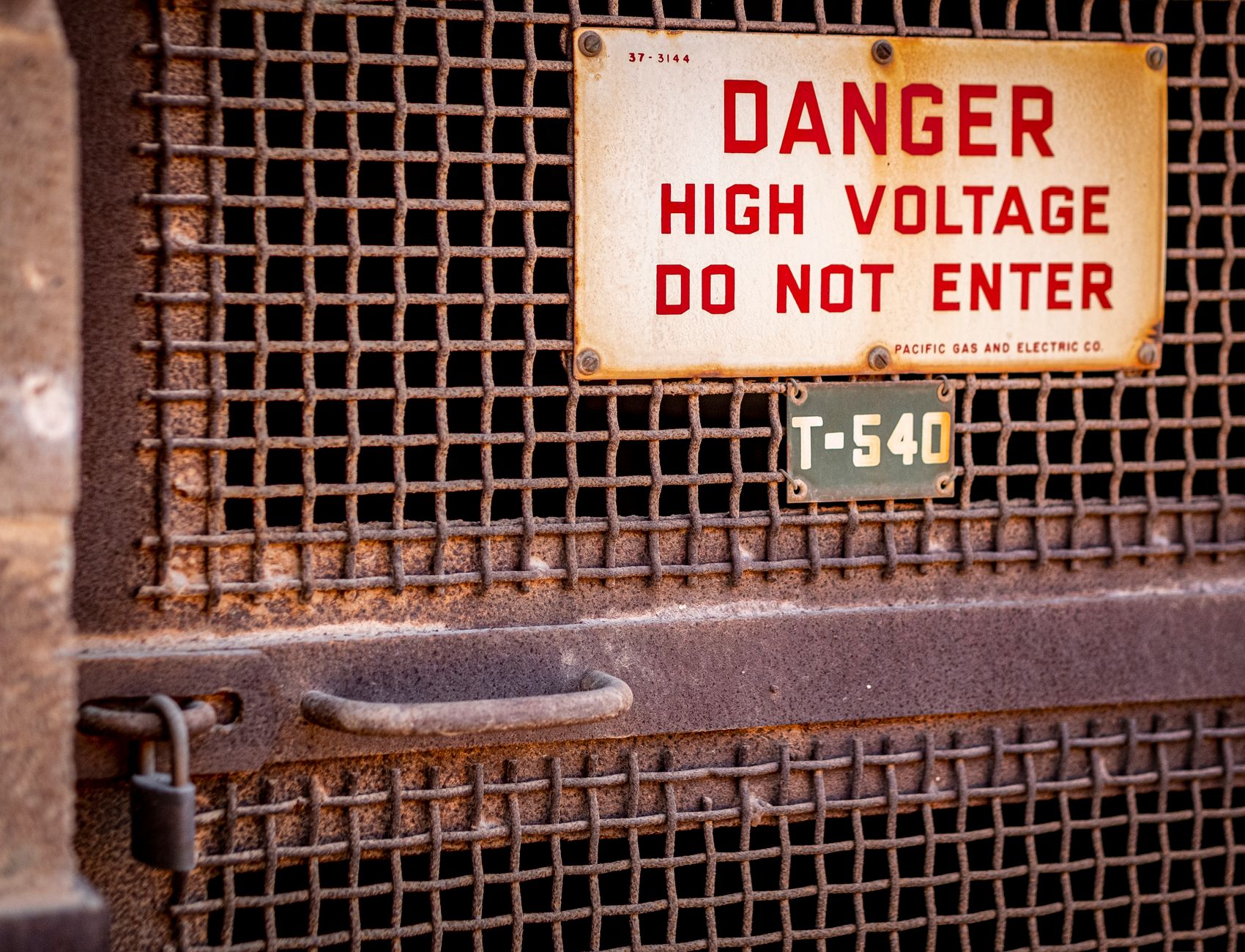

Under OSHA 29 CFR 1910.147, an authorized employee prepares the shutdown, isolates the energy sources, applies lockout or tagout devices, controls stored energy, and verifies isolation before work starts. Simply pressing the stop button is not energy isolation. A control switch can stop normal motion without preventing an unexpected restart or release of mechanical energy.

If testing requires temporary energization or repositioning, OSHA specifies a sequence: clear tools and materials, remove employees, remove energy controls under the established procedure, perform the test, deenergize the system, and reapply the controls before servicing continues. Robot movement should be written into that sequence instead of improvised beside an open landing plate.

Is an escalator pit a permit-required confined space?

Not automatically. OSHA defines a confined space by three characteristics: it is large enough for bodily entry, has limited or restricted entry or exit, and is not designed for continuous occupancy. A permit-required space has an additional serious hazard, such as a hazardous atmosphere, engulfment risk, trapping geometry, or another recognized safety or health hazard.

The employer must evaluate the actual pit rather than relying on its name. Access geometry, ventilation, electrical and mechanical hazards, cleaning chemicals, lubricant vapors, water intrusion, and the work being performed can change the answer. A camera survey may inform that evaluation, but it is not an atmospheric test or a confined-space determination.

If the area is a permit space and personnel enter, OSHA generally requires a non-entry retrieval system unless that equipment would increase risk or would not aid rescue. A mechanical retrieval device must be available for personnel entering a vertical permit space more than 5 feet, or 1.52 meters, deep. The robot tether is for the machine. It is not the worker's retrieval line.

What survives oil, grime, and awkward geometry?

Escalator pits are hostile to small wheels. Lubricant films reduce traction, loose grit jams drivetrains, standing liquid hides floor edges, and hoses or cables can snag a low chassis. A promising inspection robot rental should therefore be tested on a representative contaminated surface, not demonstrated only on clean concrete.

Track pattern and contact area matter, but so do ground clearance, turning behavior, center of gravity, and the ability to reverse over a threshold. A crawler that reaches the far end yet cannot climb back over a cable, bolt, or landing-plate lip has failed the mission. The selected machine also needs materials and seals compatible with the oils and cleaning agents documented for that site.

OSHA 1910.22 requires walking-working surfaces to be kept clean and, to the extent feasible, dry, and free from hazards that include leaks and spills. Robotic reconnaissance can locate contamination before entry, but it does not make an oily walking surface acceptable. The entry plan still needs cleanup, guarding, or another site-approved control.

Retrieval must be designed before deployment

Every pit mission needs a recovery method that works with power lost, video lost, or traction lost. A tether can carry communications and provide controlled retrieval, but only if its attachment point and load rating are intended for recovery. Pulling on a camera cable or charging lead can damage the robot and leave more debris inside the machinery.

Route the tether from a guarded operator position, protect it from sharp edges, and keep it away from chains, sprockets, step rollers, and pinch points. Use strain relief and a visible length reference. Feed slack deliberately so the line does not loop around components or drag through pooled oil.

Set abort criteria before launch. Stop when the tether starts loading sideways, the robot loses orientation, contamination reaches an unsuitable enclosure, visibility becomes inadequate, or the route crosses an unverified void. A second retrieval device may be appropriate for an untethered camera, but no recovery attempt should send an unprotected employee into the pit.

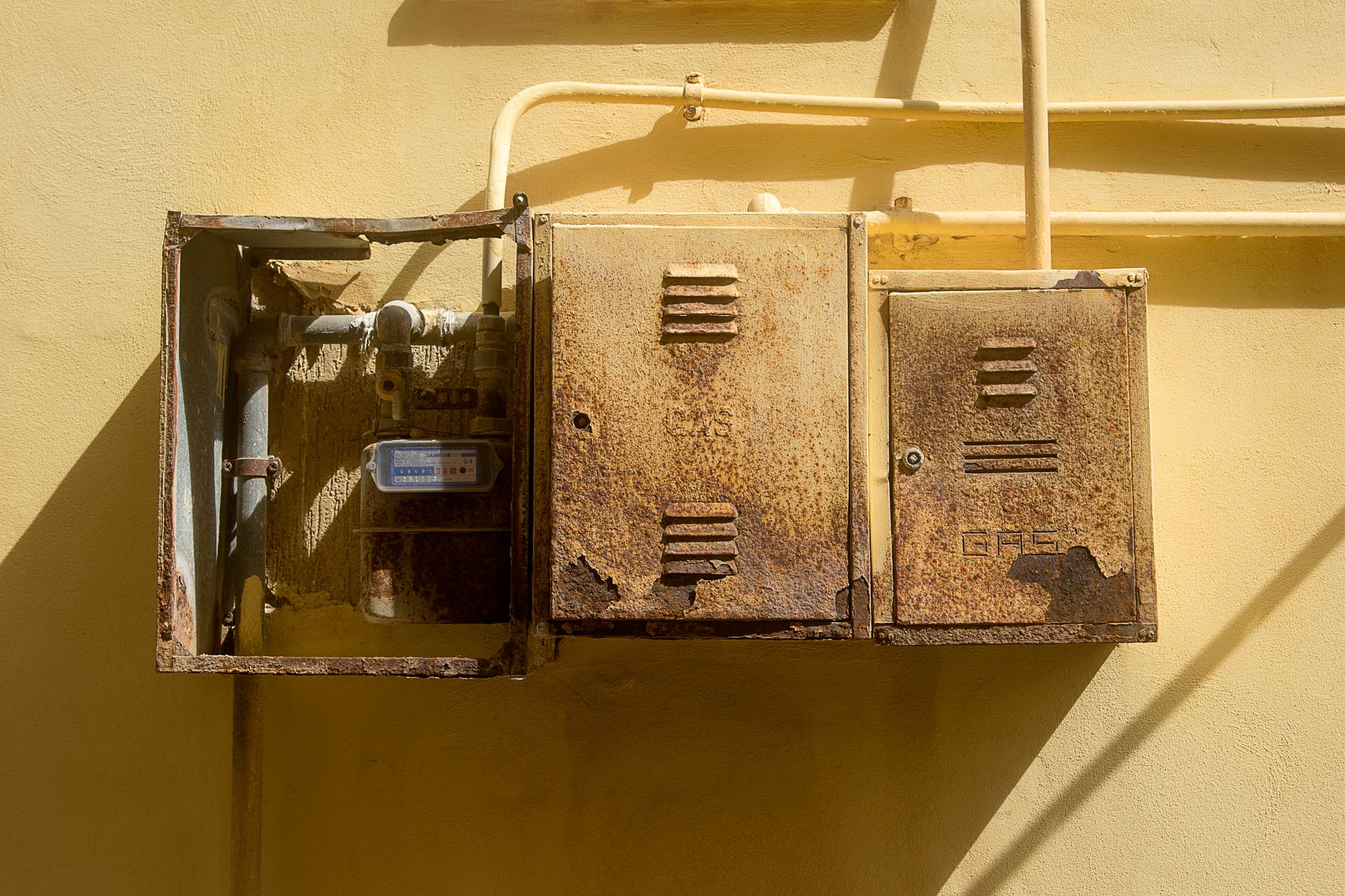

How should defect images be captured?

Useful documentation is more disciplined than a long video file. Begin with an establishing view that identifies the unit and landing. Then capture the same components in the same order on every visit: access area, pit floor, drainage, wiring, fasteners, chains, sprockets, tracks, rollers, lubrication points, and visible safety-related hardware.

Record a wide view for location, a medium view for context, and a close view for detail. Add a scale reference when clearance and access permit, but never place loose objects where they could be forgotten. Oblique lighting often exposes cracks, pitting, frayed insulation, and wet sheen better than a bright lamp aimed straight at the surface.

Each retained image should carry the escalator asset ID, upper or lower landing, camera direction, date and time, shutdown state, and operator. Mark suspected defects without altering the original file. A certified or licensed mechanic should classify the finding and decide if measurement, adjustment, cleaning, repair, or code testing is needed.

• Preserve the original image or video as the source record.
• Use a consistent filename and component taxonomy across all units.
• Link each observation to an exact location, not merely to the escalator number.
• Separate confirmed defects from conditions awaiting mechanic review.
• Repeat matched viewpoints after repair to show the before-and-after condition.

Choosing the right inspection platform

The smallest robot is not necessarily the best fit. Start with the narrowest opening, highest lip, tightest turn, longest route, surface contamination, required viewing angle, and acceptable retrieval load. Then evaluate lighting, camera articulation, focus distance, recording quality, tether behavior, battery endurance, and cleanability against that mission profile.

Also check the electrical environment. Oil alone does not automatically create a hazardous classified location. If the site evaluation identifies flammable vapor, mist, or another classified hazard, OSHA 1910.307 requires electrical equipment suited and approved for that specific classification. A general-purpose crawler must not be treated as intrinsically safe without the appropriate approval.

Service Robot Co. approaches this as an OEM-neutral integrator. A site assessment can compare a compact crawler, pole camera, tethered camera, and other inspection robot rental configurations without forcing the facility into one manufacturer's catalog. The same team can arrange a commercial robot demo or robot pilot program, integrate the selected equipment, train operators, and support it through a nationwide US engineer network.

Building a repeatable inspection program

Begin with a controlled pilot on one representative escalator. Document the approved shutdown and access sequence, launch point, tether route, inspection path, image checklist, abort rules, decontamination method, file retention, and handoff to the mechanic. Run recovery drills before relying on the crawler in a difficult pit.

Compare the robotic record with the mechanic's physical findings. Missed areas reveal where the camera angle, lighting, route, or checklist needs work. False alarms matter too. Glare on oil, shadows behind brackets, and perspective distortion can make sound components look defective when the footage lacks context.

For multi-site operators, Service Robot Co. can manage robot deployment and integration through one vendor for financing, training, service, and lifecycle support. Programs can be structured around lease rental or sale, including a service robot rental or robot leasing for business where appropriate. Maintenance included, remote triage, and on-site dispatch can simplify ownership, but the governing maintenance contractor and qualified mechanic retain authority over the escalator itself.

The mechanic remains the decision-maker

A crawler sees surfaces. It does not feel bearing play, measure chain tension, confirm torque, operate required safety devices, interpret every code condition, or certify the escalator for service. Those tasks require trained people, calibrated instruments, and the procedure adopted by the authority having jurisdiction.

ASME identifies A17.1/CSA B44 as the North American safety code covering escalator design, operation, inspection, testing, maintenance, alteration, and repair. Its catalog lists a 2025 edition, while local adoption can follow a different schedule. ASME's A17.2 guide addresses inspection and testing procedures, including a dedicated escalator section.

Licensing also varies by jurisdiction. New York states that, since January 1, 2022, people performing escalator inspection, maintenance, or repair need a state-issued license. Texas requires people performing escalator installation, alteration, testing, repair, or maintenance to register. A facility should verify its own state and local rules, then position robotic imaging as evidence for the qualified mechanic, never as a substitute for that role.
