Robots for Hard-to-Reach Smoke Damper Inspections

Where can robots help?

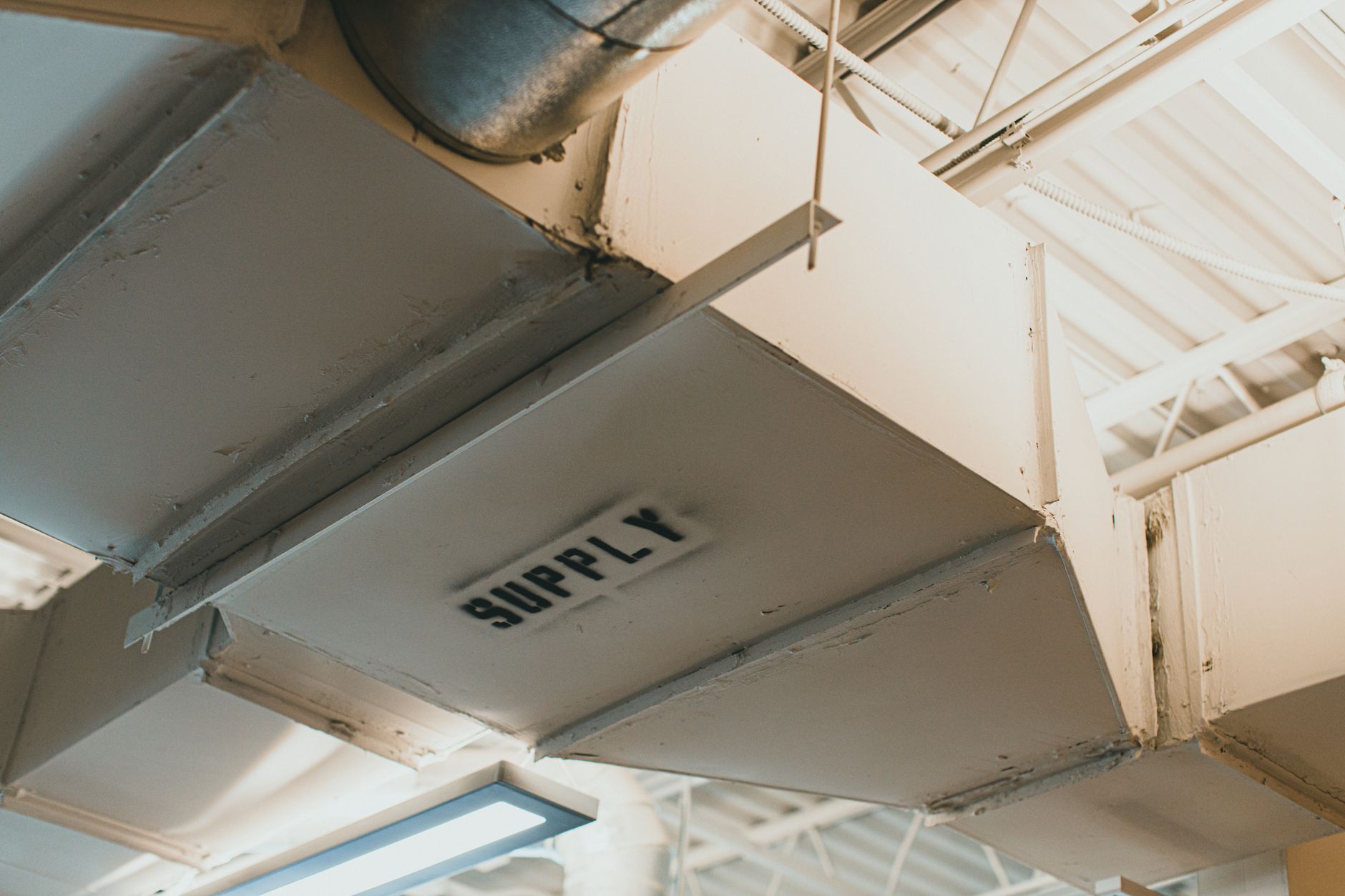

Crawlers, mast-mounted cameras and mobile inspection platforms can help a facilities team find concealed smoke-control dampers, examine the route to each access point and document visible conditions. They are especially useful above crowded ceilings, along low service corridors, inside large accessible ducts and near shafts where sending a person forward would require extra access work or exposure to hazards.

Their role is support, not certification. A robot can capture a damper tag, actuator, linkage, blades, retaining hardware, penetrated barrier and surrounding obstructions. It can also record movement during an authorized test. The qualified inspector still decides what must be seen, initiates or supervises the required test and signs the record.

Robotic inspection also cannot excuse inadequate access. The 2024 International Mechanical Code says fire and smoke dampers need an approved means of access large enough for inspection and maintenance of the damper and its operating parts. A camera may reveal a blocked opening or misplaced damper, but it does not convert an undersized opening into compliant access.

Which platform fits each concealed space?

A crawlspace inspection robot is useful where a stable floor, catwalk or plenum surface extends toward the damper. It can carry a steerable camera and lighting while recording the path, nearby utilities and access hazards. The route must be checked for fragile ceiling panels, unsupported insulation, cables, sharp edges, drops and surfaces that cannot bear the machine.

A duct crawler belongs inside ductwork only after the responsible mechanical and life-safety personnel approve entry. The team must consider contamination, duct lining, turning radius, access-door dimensions, cleaning requirements and the risk of contacting blades or sensors. The crawler should stop short of the assembly unless its method has been specifically approved.

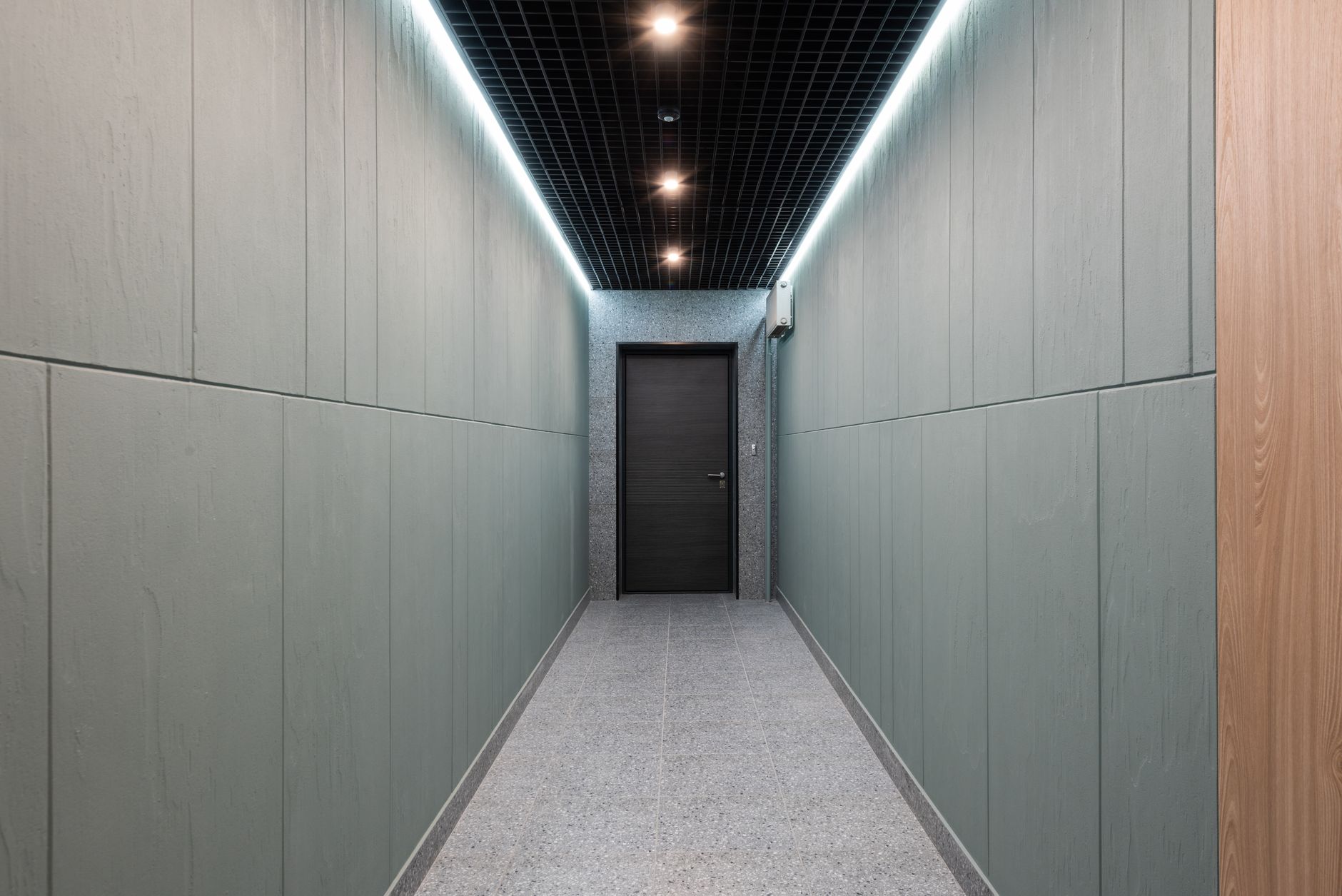

A floor-based mobile platform with a telescoping camera can be the better choice in corridors, mechanical rooms and open interstitial floors. It remains on a known load-bearing surface while viewing overhead labels and access panels. A handheld articulated camera still wins when the opening is close, narrow and easily reached. Inspection robot rental should therefore begin with the viewing problem, not a favorite chassis.

Plan access before planning the robot route

Start with drawings, the smoke-control rational analysis, fire alarm matrices, previous damper schedules and maintenance records. Reconcile those documents with field labels. Renovations often move ceilings, add cable trays or bury an access door behind new finishes, so an old coordinate is a hypothesis rather than proof.

Site assessment mapping should classify every target by floor, smoke zone, barrier, duct, unique asset ID and intended access point. It should also record ceiling height, opening dimensions, approach surface, radio coverage, retrieval options and work restrictions. In hospitals or laboratories, infection-control and containment rules may govern the route before robotics enters the discussion.

The 2024 International Building Code makes location recording part of smoke-control testing during ductwork erection and before concealment. Existing buildings rarely offer that clean starting point. A robot pilot program can survey one representative zone, compare discovered dampers with the schedule and expose missing access before a full inspection outage is booked.

Useful route classes include direct human access, camera-assisted access, crawler-assisted reconnaissance and inaccessible pending construction review. The last category needs written escalation. It should never quietly become passed, not observed or assumed functional.

Where does actuator testing begin and robot work end?

A camera can observe an actuator arm, linkage or blade edge while an authorized technician commands the damper. It can time-stamp the starting position, travel, full closure, reopening and final normal position. Synchronized video and system event logs make a stronger record than an isolated photograph.

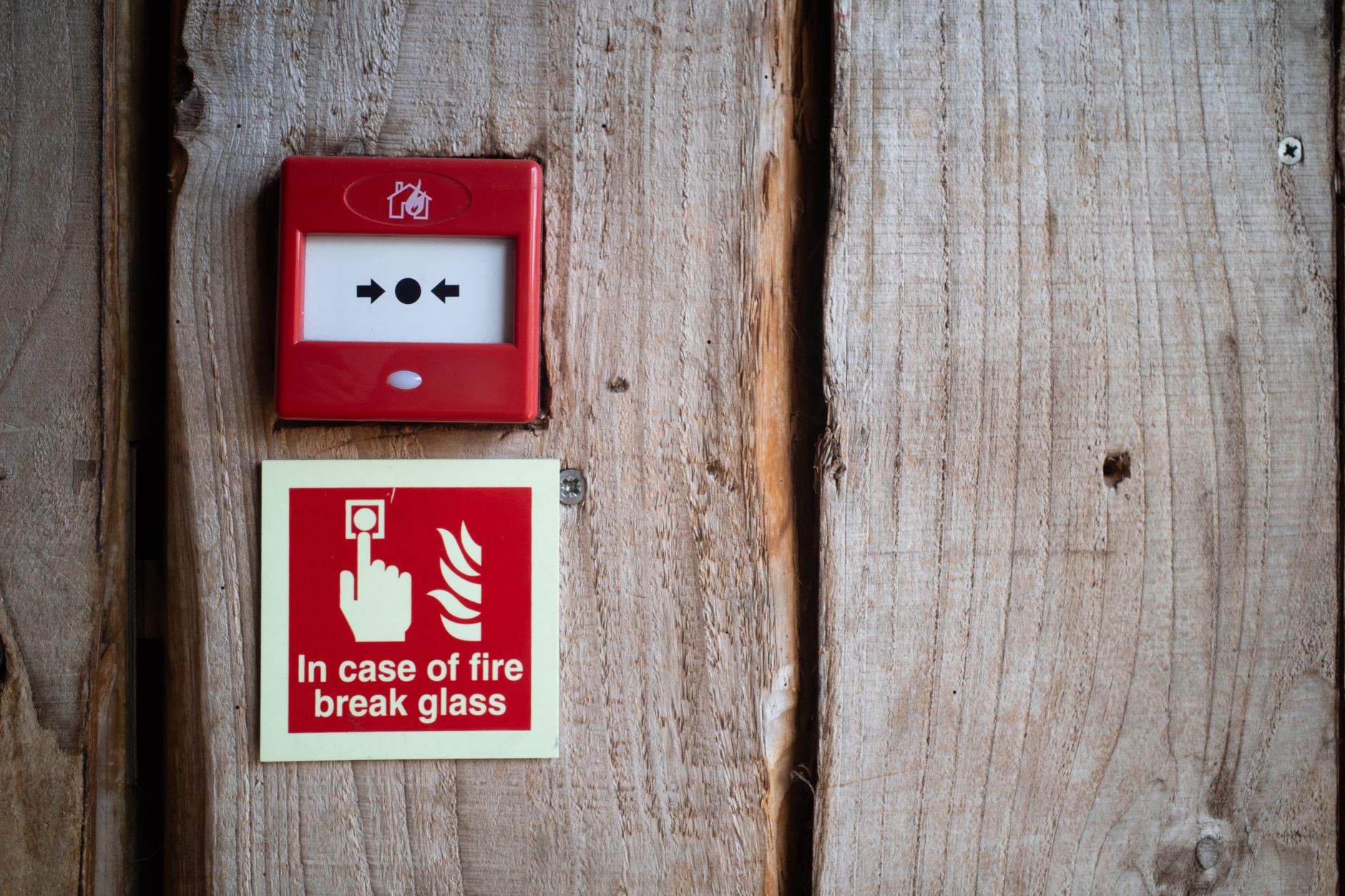

The robotics operator should not independently activate a fire alarm output, disconnect power, override the building automation system or manipulate the firefighter control panel. The life-safety team establishes the impairment procedure, controls notifications, coordinates affected occupants, confirms standby-power conditions when required and restores every bypass after testing.

A remote camera is also not automatically a code-recognized remote inspection method. NFPA committee material for NFPA 105 describes a method that positively indicates full-open and full-closed positions, verifies the indication against an initial visual inspection, commands the damper through its required states and calls for visual inspection when remote confirmation fails. The adopted edition and authority having jurisdiction determine what is accepted at a specific property.

Keep individual damper inspection separate from integrated smoke-control operation. International Fire Code maintenance provisions address initiating devices, fans, dampers, controls, doors and windows as a system. Dedicated smoke-control sequences are operated semiannually and nondedicated sequences annually under those model provisions. Those tasks do not automatically replace the damper inspection cycle required by the locally adopted NFPA standard.

Which inspection intervals and code records matter?

The familiar NFPA framework calls for each damper to be inspected and tested 1 year after completion of acceptance testing, then every 4 years. Buildings containing a hospital use a 6-year interval. The Centers for Medicare and Medicaid Services also maintains its memorandum permitting the 6-year hospital interval when the stated NFPA testing requirements are met.

Do not apply those numbers from memory alone. States and cities adopt different code editions and amendments, and a healthcare accreditor or fire code official may impose additional conditions. Before mobilization, the facility should identify the adopted building, mechanical and fire codes, the referenced editions of NFPA 80 and NFPA 105 and any approved alternative method.

NFPA development records describe documentation that identifies the damper location, inspection date, inspector, discovered deficiencies and when and how corrections occurred. They also describe retaining records for at least 3 test cycles and making them available to the authority having jurisdiction. Local requirements can differ, so the records plan should be approved before field capture begins.

Robot files should add traceability without replacing the formal form. Preserve the asset ID, route ID, operator, inspector, camera orientation, test command time, observed position, file checksum and disposition. Keep failed or inconclusive footage. Deleting awkward evidence destroys the audit trail precisely where it is most valuable.

What should the camera actually document?

The inspector should define required views before deployment. A general sweep of a ceiling cavity may locate equipment, but it rarely proves blade travel or reveals a disconnected linkage. Lighting, focus distance, scale reference and a readable identifier matter more than cinematic footage.

Capture the context first, then the detail. The opening sequence should show the room or grid location and access panel. Subsequent views should connect that opening to the damper, show the surrounding rated barrier where visible and record the actuator, linkage, blade area and obstructions without touching the assembly.

During an authorized functional test, hold a stable viewpoint long enough to show the starting state, movement, final state and return. Flag condensation, corrosion, debris, damaged wiring, detached labels, fasteners in the blade path, inaccessible reset points and unrelated utilities crossing the opening. These are observations for professional evaluation, not automated pass or fail declarations.

Image quality acceptance belongs in the field procedure. If glare hides the blade edge, the tag is unreadable or the camera loses the damper during travel, the result is inconclusive. The crew should recapture it while access controls and test personnel are still in place.

Human judgment remains the compliance boundary

At acceptance, the 2024 International Building Code requires smoke-control systems to be tested by a special inspector. It says approved testing agencies need expertise in fire protection engineering, mechanical engineering and certification as air balancers. Related model-code provisions call for a report reviewed and signed, sealed and dated by the responsible registered design professional after design intent is achieved.

Periodic inspection qualifications depend on the adopted standards, jurisdiction and facility type. In every case, robot operators should work under a named inspection authority. They may navigate, illuminate, label and preserve evidence, but they should not infer damper performance from actuator sound, a dashboard icon or partial blade movement.

The responsible human resolves discrepancies among drawings, control-panel indication and field evidence. That person also determines if a blocked access point requires construction, if a failed actuator needs immediate repair and if retesting must include adjacent system functions. Certification stays with the professional whose qualifications and authority the governing code recognizes.

Building a support program that survives the first cycle

A dependable program needs more than an inspection robot rental. Specify the payload, retrieval method, cleaning protocol, data format, cybersecurity controls, asset naming and evidence retention before the first route. Test representative ceiling cavities and ducts, then require the same acceptance criteria during go-live support.

Service Robot Co. acts as an OEM-neutral commercial robot integrator for US businesses. That lets the inspection method drive equipment selection across manufacturers. The company can finance, deploy, integrate and train around the chosen platform, then service every unit through a nationwide US engineer network. One partner and one number are valuable when a failed camera, crawler or mobile base could disrupt a tightly scheduled inspection window.

Commercial robot rental, robot leasing for business, purchase and robot as a service can each fit different inspection volumes. A short pilot may suit an uncertain damper inventory, while a repeatable multi-property program may justify a longer deployment. Any service robot rental agreement should state if maintenance is included, how remote triage works and when on-site dispatch or a replacement unit becomes available.

Success is measured in defensible coverage, not footage volume. Track dampers found, records reconciled, views accepted on the first attempt, access deficiencies escalated, failed tests routed for repair and assets successfully retested. The robot earns its place when it helps qualified people reach sound conclusions with less uncertainty.
